Fuse assignment of fuse and relay box in right engine compartment - GF54.15-P-1256-02RIT

Fig 1: Identifying K40/4 Passenger-Side Fuse And Relay Module

Courtesy of MERCEDES-BENZ USA

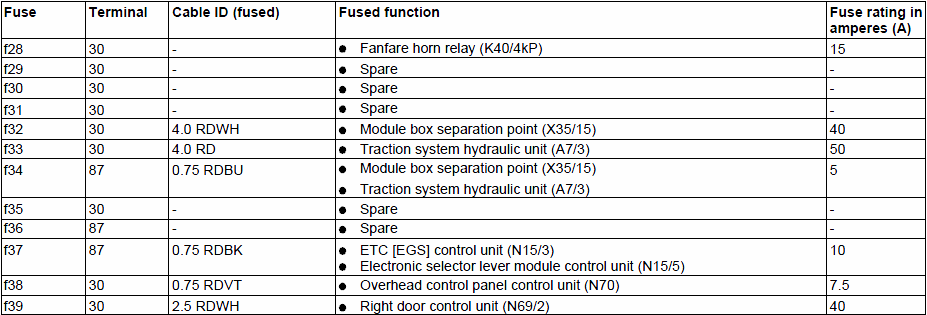

Fuse rating in amperes (A) for fuses F28 through F39:

Fig 2: Fuses F28 Through F39

Courtesy of MERCEDES-BENZ USA

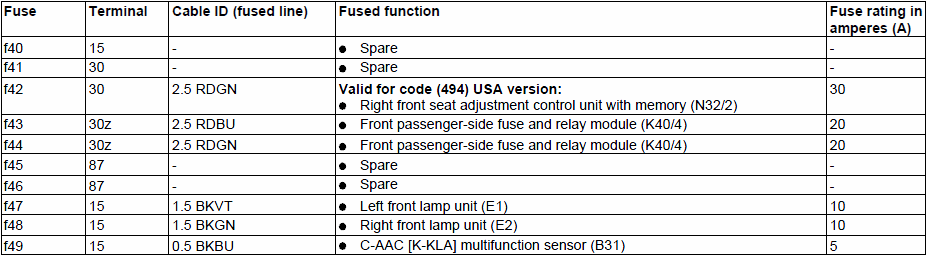

Fuse rating in amperes (A) for fuses F40 through F49:

Fig 3: Fuses F40 Through F49

Courtesy of MERCEDES-BENZ USA
