Remove/install stabilizer bar on rear axle - AR32.20-P-0315R

MODEL 230 except CODE (487) Active Body Control (ABC)

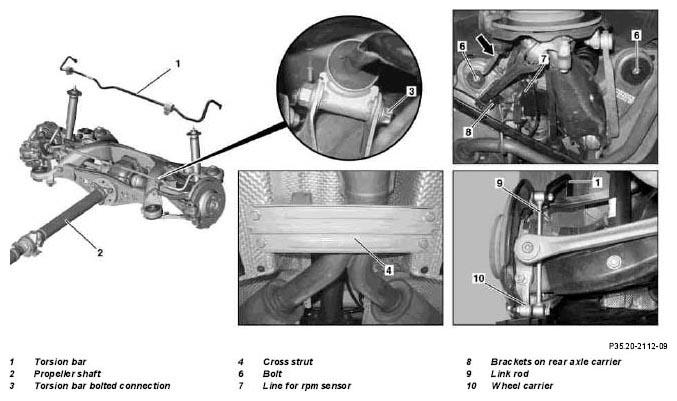

Fig 1: Identifying Stabilizer Bar On Rear Axle Components

Courtesy of MERCEDES-BENZ USA

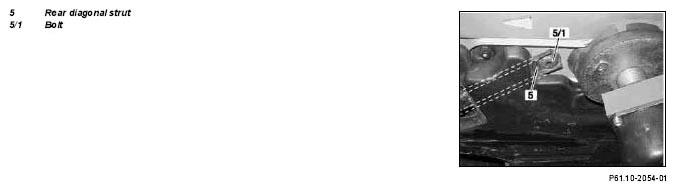

Fig 2: Identifying Rear Diagonal Strut And Bolt

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

22.5.06

Nut, link rod to stabilizer bar

Model 230

*BA32.20-P-1002-04G

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under load	Use only approved tensioning devices; shield off hazard area if necessary. Inspect special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove rear wheels.
	Remove and install wheels		AP40.10-P-4050Z
2	Detach propeller shaft (2) from rear axle center assembly	While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. Flexible disk remains on propeller shaft.
		Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential.	*BA41.10-P-1002-01A
3	Slacken flexible coupling fitted sleeves on flange.	If the fitted sleeves are jammed: ↓	AR41.10-P-0050-09I
		Produce drift for detaching the fitting sleeves in the flexible coupling.	WF58.50-P-4110-01A
4	Unscrew bolts (5/1) and remove diagonal struts (5) at the rear	Installation: The bolts on the diagonal struts may only be tightened when the vehicle is resting with its wheels on the ground.
		Bolt of diagonal brace	*BA61.10-P-1010-01C
5	Remove cross strut (4) with front exhaust rubber mount	Check front exhaust rubber mount, replace if damaged.
		Screws for lateral strut on frame floor	*BA61.10-P-1007-01C
6	Push down rear exhaust rubber mounts off retaining brackets	To simplify removal: Apply liquid lubricant to the retaining brackets and the holes of the rear exhaust rubber mounts. Do not push down or remove the center exhaust rubber mounts from the retaining brackets. The exhaust remains secured to the axle. Check the rear exhaust rubber mount, replace if damaged.
		Lubricant	*BR00.45-Z-1002-06A
7	Unclip lines (7) for rear RPM sensor and brake pad contact sensor from brackets (8) on rear axle carrier
8	Support rear axle carrier with transmission jack and transmission platform	Transmission jack	*WE58.40-Z-1030-11A
		Transmission platform	*WE58.40-Z-1018-11A
9	Remove bolts (6) and lower rear axle	Lower rear axle no more than 150 mm. The brake hoses (arrow) must not be subjected to tension Installation: Tighten the rear threaded connection first.
		Self-locking bolt, rear axle carrier rear rubber mount to frame floor	*BA35.10-P-1002-01E
		Self-locking bolt, front rear axle carrier rubber bushing at frame floor	*BA35.10-P-1001-01E
10	Detach stabilizer bar (1) from link rods (9)		*BA32.20-P-1002-04G
11	Detach link rods (9) from wheel carriers (10)	Check joints and rubber boots of link rod (9) for damage, replace link rod (9) if necessary.
			*BA32.20-P-1001-04G
12	Undo threaded connections (3) of stabilizer bar (1) on rear axle carrier		*BA32.20-P-1003-04G
13	Remove stabilizer bar (1) from rear axle carrier in direction of travel
14	Install in the reverse order
15	Perform chassis alignment		AR40.20-P-0200R

PROPELLER SHAFT

Number	Designation			Model 230
BA41.10-P-1002-01A	Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential.	M10	Nm	-
BA41.10-P-1002-01A		M12	Nm	68

FRAME FLOOR ASSEMBLY

Number	Designation		Model 230
BA61.10-P-1007-01C	Bolts connecting cross strut to frame floor	Nm	20
BA61.10-P-1010-01C	Self-locking bolt, rear diagonal strut to frame floor	Nm	70

REAR AXLE CARRIER

Number	Designation			Model 230
BA35.10-P-1001-01E	Self-locking bolt, front rear axle carrier rubber mount to frame floor	Stage 1	Nm	90
BA35.10-P-1001-01E		Stage 2	∠°	60
BA35.10-P-1002-01E	Self-locking bolt, rear axle carrier rear rubber mount to frame floor	Stage 1	Nm	90
BA35.10-P-1002-01E		Stage 2	∠°	60

REAR AXLE STABILIZER BAR

Number	Designation		Model 230
BA32.20-P-1001-04G	Nut, link rod to wheel carrier	Nm	50
BA32.20-P-1002-04G	Nut, link rod to stabilizer bar	Nm	50
BA32.20-P-1003-04G	Bolt, torsion bar to rear subframe	Nm	70

WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A	Transmission platform
WE58.40-Z-1030-11A	Transmission jack

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricant	A 000 989 01 60
