Pressure sensor, location - GF32.33-P-3102-01SL

Model 230

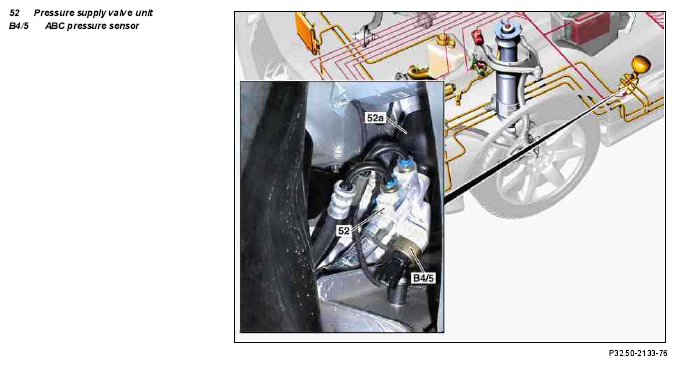

Fig 1: Identifying Pressure Sensor Location

G05068151

Courtesy of MERCEDES-BENZ USA

In front left wheelhousing at the pressure supply valve unit.
