Active body control (ABC) location of electrics/ electronic components - GF32.50-P-0001-07SL

Model 230

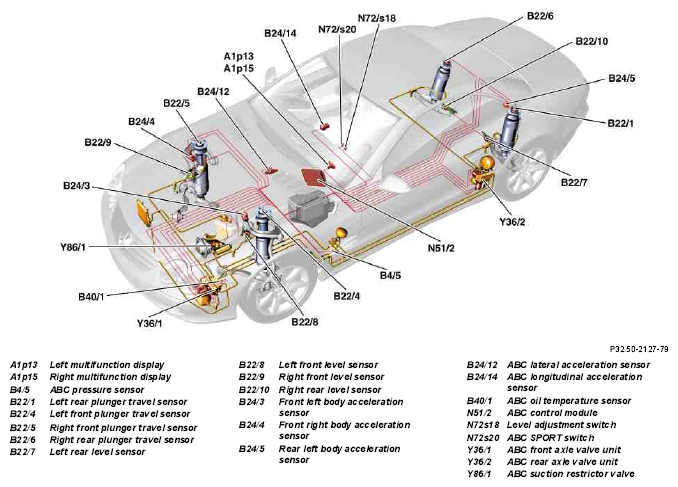

Fig 1: Identifying Active Body Control Electronic Components

G05068155

Courtesy of MERCEDES-BENZ USA
