Telephone (D-network), block diagram - GF82.70-P-0003-06R

Portable cellular telephone without VCS

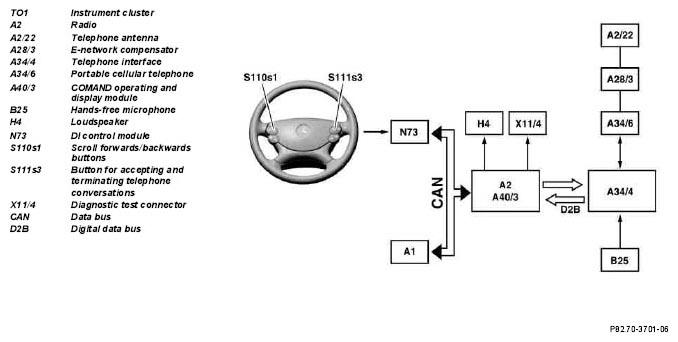

Fig 1: Telephone (D-Network) Block Diagram - Portable Cellular Telephone Without VCS
G05075647

IMPORTANT Loudspeaker output for the hands-free system is accomplished via the entire loudspeaker system.

Portable cellular telephone with VCS

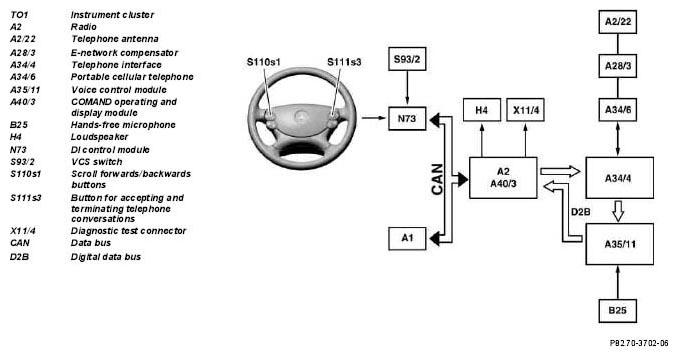

Fig 2: Telephone (D-Network) Block Diagram - Portable Cellular Telephone With VCS
G05075648

IMPORTANT Loudspeaker output for the hands-free system is accomplished via the entire loudspeaker system
