Install rear center section - AR64.20-P-1050-04R
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 230 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01A | Gap dimension | Trunk lid to rear fender, top | Dimension "F" | mm | - |
| Trunk lid to bottom of rear fender | Dimension "M" | mm | - | ||
| Trunk lid to rear fender | Dimension "F" | mm | 3, 0 (+1, 2) | ||
| Trunk lid to taillamp | Dimension "M" | mm | 4.0 (+1.6/-0.8) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | ||
| Rear fender to taillamp | Dimension "U" | mm | 2, 5 ± 0, 5 | ||
| See picture in | AR60.00-P-0700-01R | ||||
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1037-02A | Manual temporary fastener, 5.0 mm dia. - clamping range 0-6 mm, identification color black Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1001-05A | Two-post lifting platform |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1005-13A | Rivet | A 003 990 75 97 |
- Install rear center section positively and fasten with clamping pliers.
- Drill 5 mm rivet holes in rivet flange.

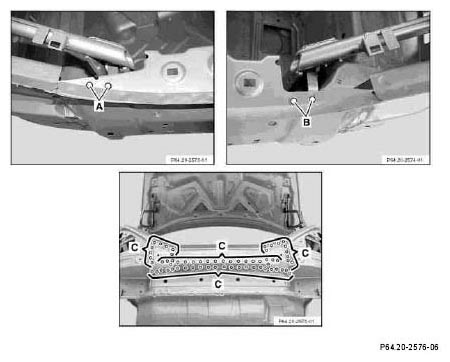

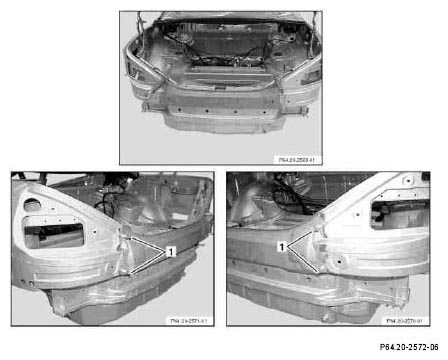

- Fasten rear center section with manual temporary fasteners (1).
- Drill 5 mm dia. rivet holes and countersink.
- Fasten rear center section with additional manual temporary fasteners (1) (areas A, B and C).
After each 3rd bore set manual temporary fastener.
- Detach rear end center assembly and remove.
- Deburr all holes on both sides.
- Apply zinc-dust paint to rivet and spot weld flanges.
- Install rear center section and fasten with clamping pliers and manual temporary fasteners (C).

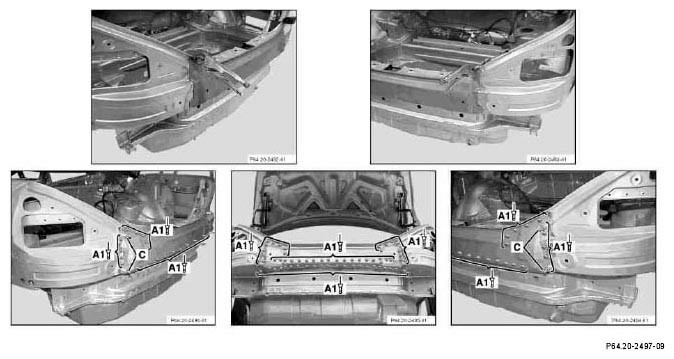

- Rivet rear center section with countersunk head rivet Polygrip Ø 5x10 mm (area A1).
- Rivet rear center section with countersunk head rivet Polygrip countersunk head rivet 5x10 mm dia (area A1).

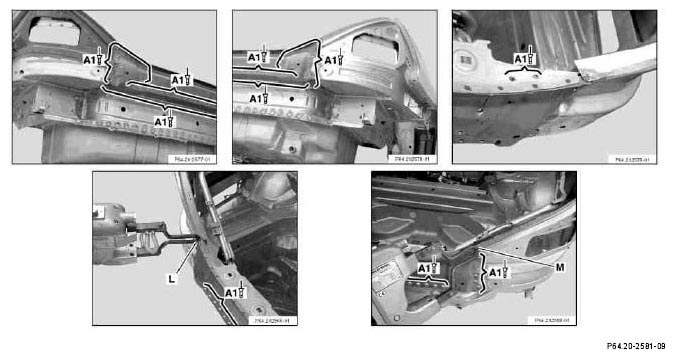

- Weld in rear center section with
(areas L and M).
