Prepare rear end center assembly with crossmember, spare wheel recess and longitudinal member connection with end part - AR64.20-P-1200-07R
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

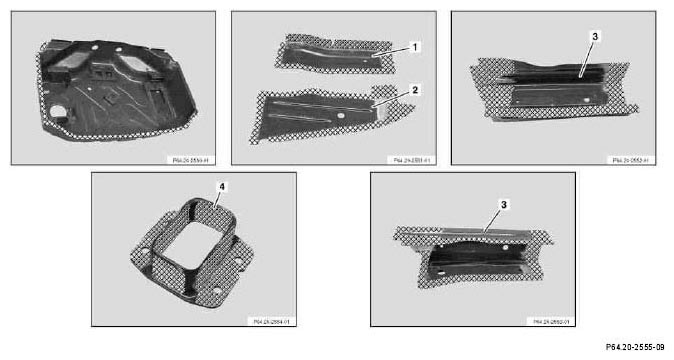

- Grind spare wheel recess in down to bare metal in shaded areas on both sides.
Coat insides of spot weld flanges with zinc dust paint.
- Grind end part (1) and rear floor (2) down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
- Grind rear longitudinal member (3) down to bare metal on both sides.
- Grind console (4) down to bare metal on both sides.

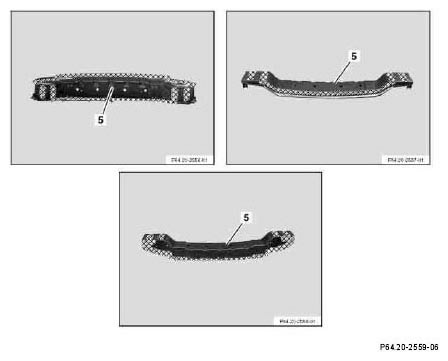

- Grind rear crossmember (5) down to bare metal on both sides.
Then remove components Deburr all rivet holes on both sides and coat rivet flange with zinc dust paint
