Adjust trunk lid - AR88.50-P-5200R
MODEL 230.4## ## up to 063909
| Adjust | |||
|---|---|---|---|
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |

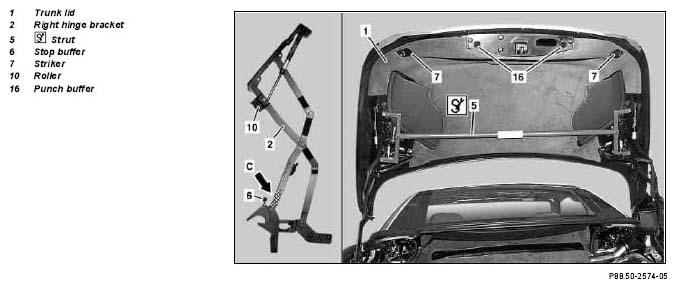

| 1 | Close Vario roof | ||
| 2 | Open trunk lid (1) | ||

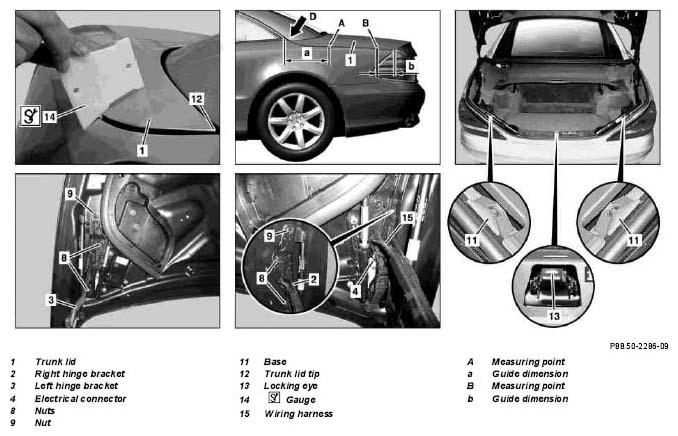

| 3 | Remove wiring harness (15) from right hinge bracket (2) until nuts (8) are accessible and sufficient clearance is present for installing strut (5). | Fig 4 | |
| 4 | Disconnect electrical connector (4) | ||
| 5 | Screw strut (5) to hinge base plate on left hinge bracket (3) and right hinge bracket (2) through present threaded holes. | ||
| Fig 4 | |||
| 6 | Loosen left and right stop buffer (6) and screw in completely | ||
| 7 | Loosen bolt on left and right striker (7) | ||
| 8 | Loosen nuts (8, 9) on hinge base plates of left hinge bracket (3) and right hinge bracket (2) | ||
| 9 | Apply chalk to roller (10) on left hinge bracket (3) and right hinge bracket (2). | ||
| 10 | Close trunk lid (1) and open again | ||
| 11 | Check whether rollers (10) make uniform contact with left hinge bracket (3) and right hinge bracket (2); if necessary adjust strut (5). | ||
| Fig 4 | |||
| 12 | Close trunk lid (1) and check gap "F" on left and right rear fender, adjust by moving trunk lid (1). | Gap between trunk lid and rear fender, dimension "F" | *BE60.00-P-1003-01A |
| Figure | |||
| 13 | Carefully open trunk lid (1) | ||
| 14 | Tighten nuts (9) | *BA88.50-P-1014-01A | |
| 15 | Close trunk lid (1) and check gap "F" again, repeat adjustment if necessary. | Gap between trunk lid and rear fender, dimension "F" | *BE60.00-P-1003-01A |
| Figure | |||
| 16 | Open trunk lid (1) and tighten nuts (8) | *BA88.50-P-1014-01A | |
| 17 | Remove strut (5) | Fig 4 | |
| 18 | Install wiring harness (15) on right hinge bracket (2) | ||
| 19 | Connect electrical connector (4) | ||
| 20 | Completely screw in stop buffer (16) | ||
| 21 | Close trunk lid (1) and check gap "V", adjust if necessary. | ||
| Gap between trunk lid and bumper, dimension "V" | *BE60.00-P-1003-01A | ||
| *BA88.50-P-1004-01A | |||
| Figure | |||
| 22 | Coat left and right closing wedge (7) with chalk, adjust gap "M" by moving striker (7). | The gap between the taillamp and trunk lid (1) must not be wedge-shaped. |
|
| Gap between trunk lid and taillamp, dimension "M" | *BE60.00-P-1003-01A | ||
| Figure | |||
| 23 | Tighten bolts on striker (7) | *BA88.50-P-1015-01A | |
| 24 | Unscrew the punch buffer (16) until they abut the rear center section when the trunk lid (1) is closed. Then screw in stop buffer (16) one turn |
||
| 25 | Completely open Vario roof and adjust stop buffer (6). | ||
| 26 | Check transitions between trunk lid (1) and upper rear fender with gauge (14), if necessary adjust by moving stop buffer (6). | Position gauge (14) at measuring points (A, B) as illustrated. Guide dimension (a): approx. 210 mm Guide dimension (b): approx. 57 mm |
|
| Fig 5 | |||
| 27 | Check gaps on trunk lid (1), adjust if necessary | Gaps between trunk lid and rear fender, dimension "F" trunk lid and taillamp, dimension "M" trunk lid and bumper, dimension "V" |
*BE60.00-P-1003-01A |
| Figure |
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 230 without code P99 AMG Black Series | Model 230 with code P99 AMG Black Series | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1003-01A | Gap dimension | Trunk lid to rear fender, top | Dimension "F" | mm | - | 4.0 (± 1) |
| Trunk lid to rear fender, bottom | Dimension "M" | mm | - | - | ||
| Trunk lid to rear fender | Dimension "F" | mm | 3.0 (+1.2) | 4.0 (± 1) | ||
| Trunk lid to taillamp | Dimension "M" | mm | 4.0 (+1.6/-0.8) | 3.0 (± 1) | ||
| Trunk lid to bumper | Dimension "V" | mm | 5.0 (+1.5/-1.0) | 5.0 (± 1) | ||
| Rear fender to taillamp | Dimension "U" | mm | 2.5 ± 0.5 | 1.5 (± 1) | ||
| See picture | AR60.00-P-0700-01R | AR60.00-P-0700-01R | ||||
TRUNK LID
| Number | Designation | Model 230 | |
|---|---|---|---|
| BA88.50-P-1004-01A | Bolt to locking eye | Nm | 9 |
| BA88.50-P-1014-01A | Nut, hinge bracket to trunk lid | Nm | 23 |
| BA88.50-P-1015-01A | Bolt, striker to trunk lid | Nm | 8 |
