Remove/install loudspeakers in front doors - AR82.62-P-7845R
MODEL 230.4
| Remove/install | |||
|---|---|---|---|
| Risk of fire and explosion caused by machining/treating magnesium components | Keep away from ignition sources and open flames. | AS60.00-Z-0006-01R | |
| Information on machining/treating magnesium components | AH60.00-P-0023-01R | ||
| 1 | Remove door lining from left or right front door | AR72.10-P-1000R | |

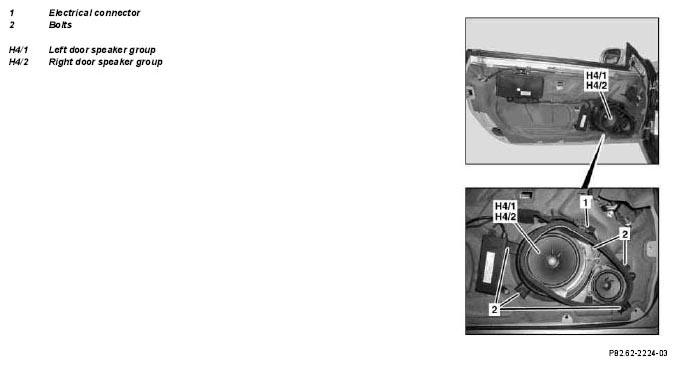

| 2 | Disconnect electrical connector (1) | ||
| 3 | Remove bolts (2) | ||
| 4 | Remove left door speaker group (H4/1) or right door speaker group (H4/2) from inner door panel | ||
| 5 | Install in the reverse order |
