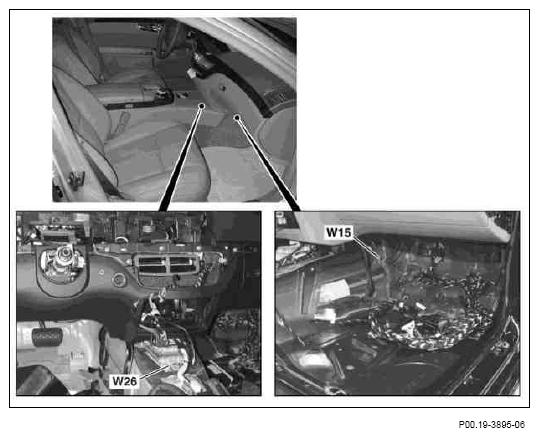

Arrangement and assignment of ground terminals, cockpit - GF00.19-P-2000-03SAA
Mode 221
| Ground point | Designation | Component | Designation | Plug Pin |
|---|---|---|---|---|
| W15 | Power ground (electronics) | |||
| RL | →A1 | Instrument cluster | 1.1 | |
| 1.2 | ||||
| 1.3 | ||||
| LHD | → A32 | AC air recirculation unit | 1 | |
| RL | → A40/8 | COMAND display | B1.1 | |
| RHD, 06/08 → | → G1/6 | 3rd battery | 1 | |
| RL | → N10/1 | Front SAM control unit with fuse and relay module | C2.10 | |
| C4.7 | ||||
| RL | → N22/1 | AAC [KLA] control unit | 1.1 | |
| RL | → N72/1 | Upper control panel control unit | 1.1 | |
| RL | → N73 | EIS [EZS] control unit | A.5 B.2 | |
| RL | → N80 | Steering column module | 1.1 | |
| Valid for steering wheel heater, RHD | 1.8 | |||
| RL | → N93 | Central gateway control unit | A.2 | |
| RL | → R41/1 | Left side air outlet potentiometer | 1 | |
| RL | → R41/2 | Right side air outlet potentiometer | 1 | |
| RL | → R41/3 | Front center air outlet potentiometer | 1 | |
| Valid for heater booster | →R22/3 | PTC heater booster | 1 | |
| RL | → S76/15 | Electric parking brake switch | 5 | |
| RL | → X11/4 | Data link connector | 4 | |
| 5 | ||||
| RHD, 06/09→ | → X58/31 | 12 volt connector in glove compartment | 1 | |
| RL | → Z6/30 (2) | Circuit 31 connector sleeve | ||
| RL | → Z50/37 | Air conditioner compressor ground connector sleeve | ||
| W26 | Ground (restraint systems control unit) | → Z53/9 | Interior sleeve connector, airbag circuit 31 |
