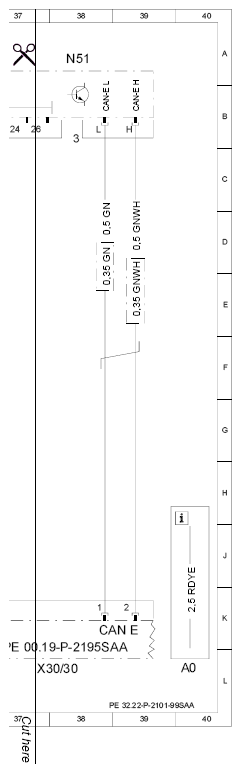

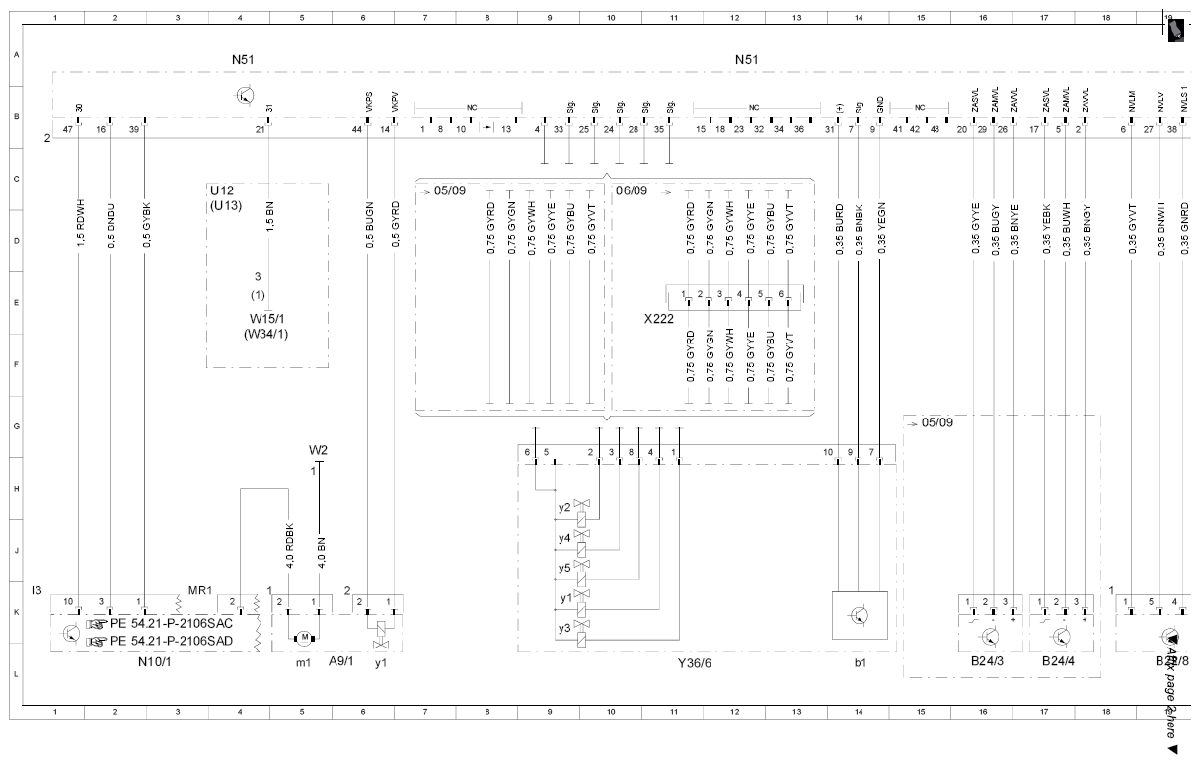

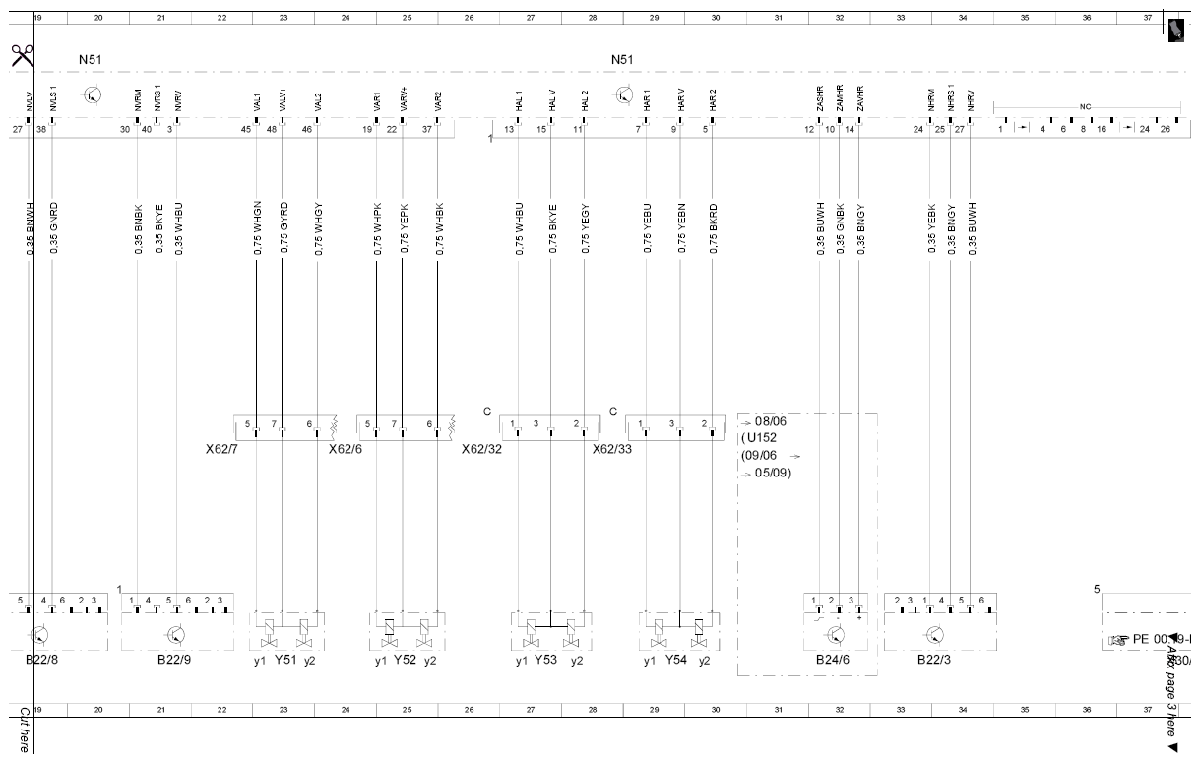

Wiring diagram of AIRmatic control unit - PE32.22-P-2101-99SAA
MODEL 221.0 /1 except CODE (487) Active Body Control (ABC) Controller N51
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 40L |
| N10/1 | Front SAM control module with fuse and relay module | 2L |
| U12 | Valid for left-hand steering | 3D |
| U13 | Valid for right-hand steering | 4D |
| U152 | Valid for engine 156 | 26G |
| W15/1 | Ground (right footwell) | 4E |
| W34/1 | Ground (electronics - left footwell) | 4F |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 31L |
| X62/33 | Right rear axle electrical distributor connector | 23H |
