Remove/install head restraint on front seat - AR91.16-P-0040SX
MODEL 221.0/ 1
MODIFICATION NOTES
| 15.5.09 | Disconnect ground line of battery - added | Step 3 |
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove seat-back lining from backrest of left or right front seat | ||
| 2 | Move front seat forwards and upwards and head restraint downwards and tilt seat backrest backwards | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003SX | |

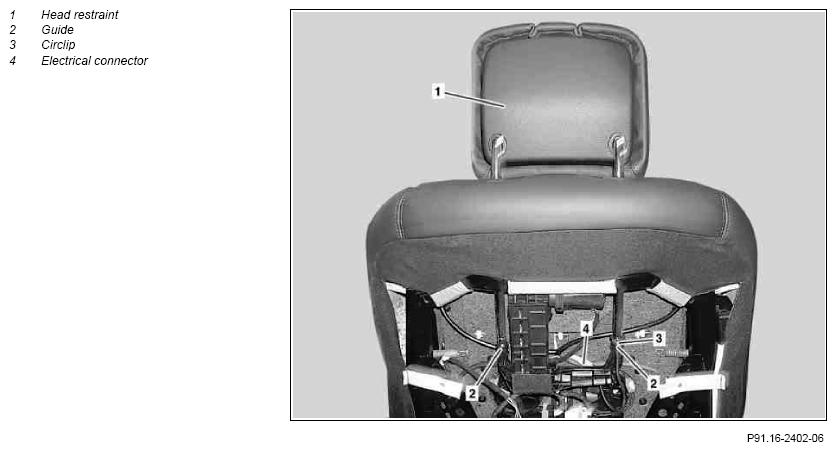

| 4 | Remove circlip (3) | ||
| 5 | Pull head restraint (1) out of guides (2) | ||
| 6 | Disconnect electrical connector (4) | ||
| 7 | Pull head restraint (1) out upward | ||
| 8 | Install in the reverse order |
