| A0 |
Explanation of color codes |
48 L |
| B48 |
Passenger seat occupied and child seat recognition sensor |
45 L |

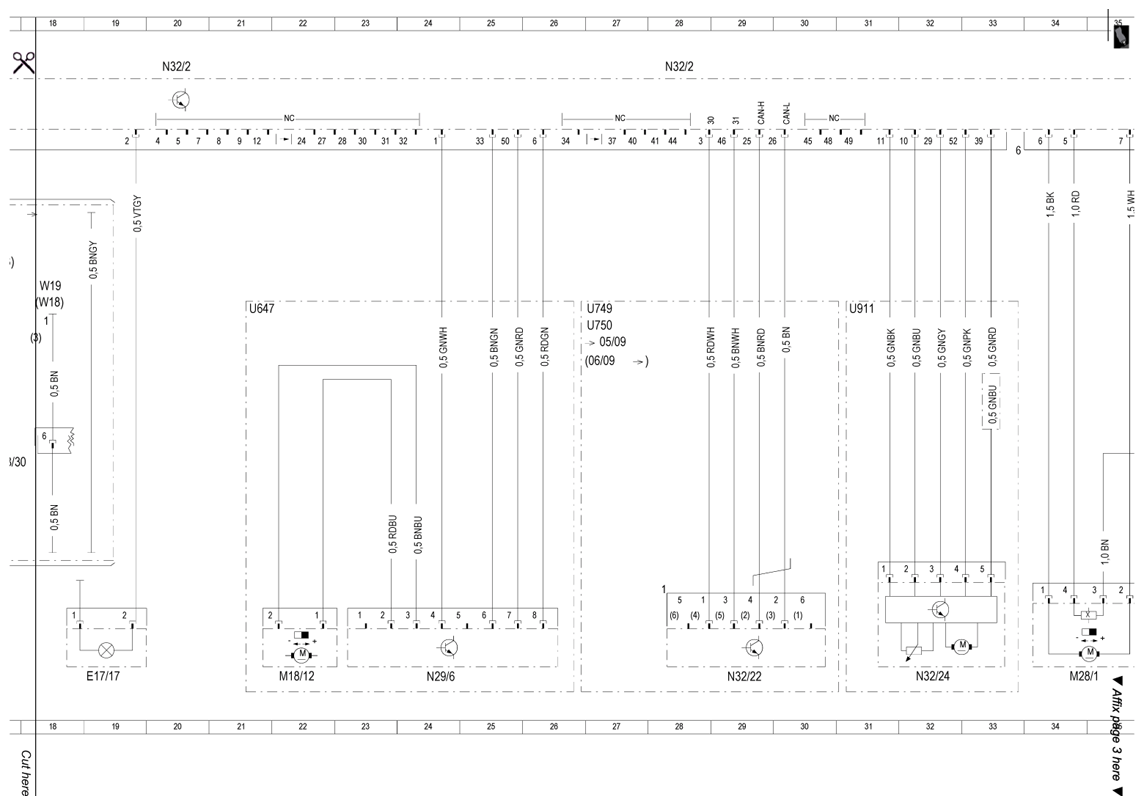

| E17/17 |
Right rear footwell lamp |
19 L |

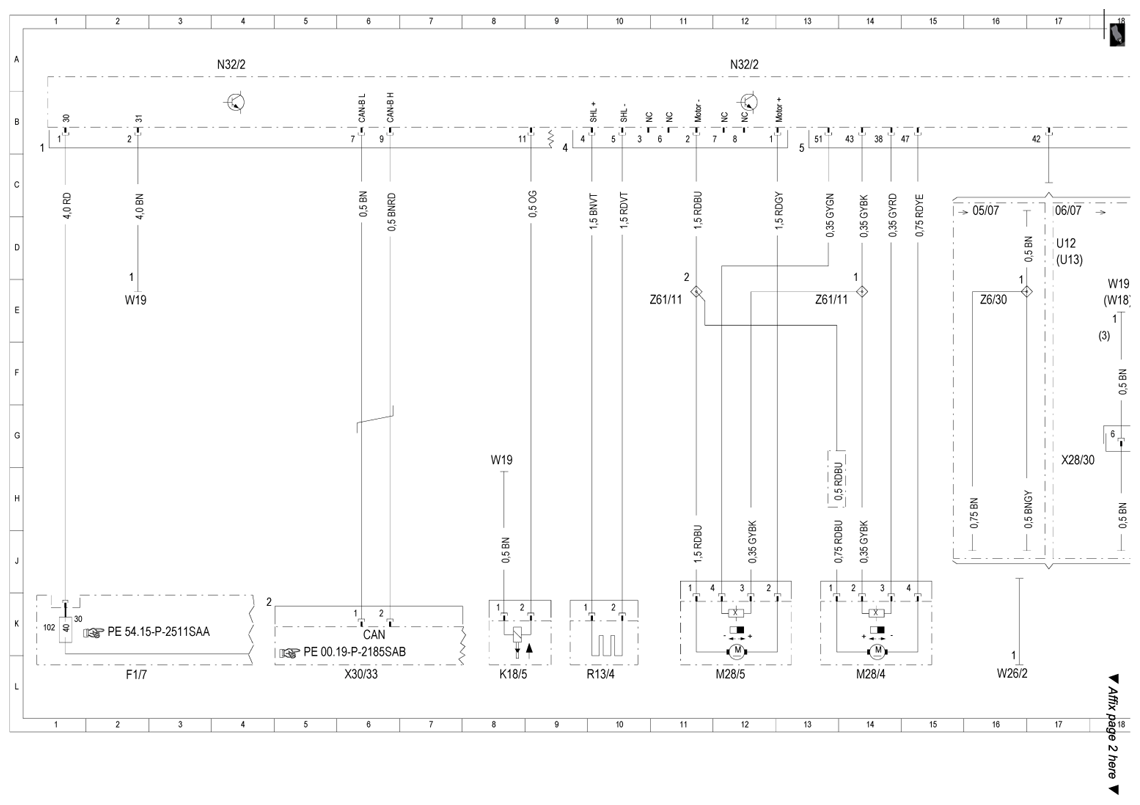

| F1/7 |
Left instrument panel fuse box |
2 L |
| F1/7f102 |
Fuse 102 |
1 K |
| K18/5 |
Right front seat belt comfort solenoid |
8 L |
| M18/12 |
Right front seat backrest ventilation motor group |
22 L |
| M28/1 |
Right front seat fore/aft adjustment motor |
34 L |
| M28/10 |
Right front seat height adjustment motor |
40 L |
| M28/4 |
Right front head restraint motor |
14 L |
| M28/5 |
Right front backrest angle adjustment motor |
12 L |
| M28/8 |
Right front seat cushion fore/aft motor |
36 L |

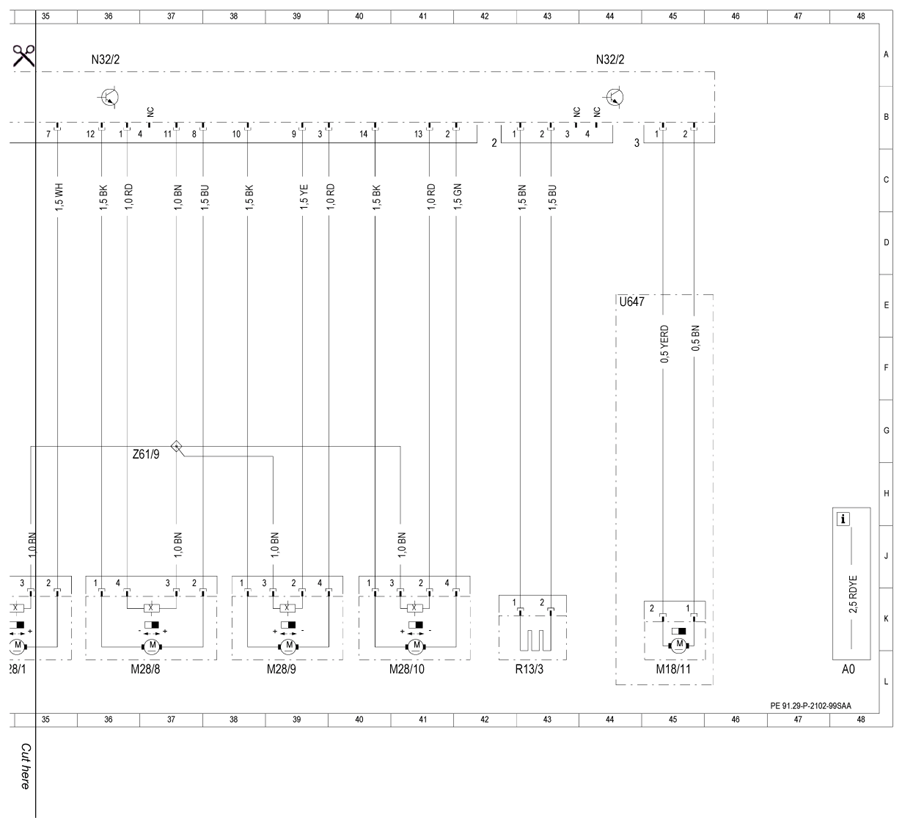

| M28/9 |
Right front seat cushion inclination motor |
38 L |
| N29/6 |
Right front seat ventilation blower regulator |
24 L |
| N32/2 |
Right front seat control module |
4 A |
| N32/2 |
Right front seat control module |
12 A |
| N32/2 |
Right front seat control module |
20 A |
| N32/2 |
Right front seat control module |
28 A |
| N32/2 |
Right front seat control module |
36 A |
| N32/2 |
Right front seat control module |
44 A |
| N32/22 |
Right front dynamic seat control module |
28 L |
| N32/24 |
Front passenger lumbar support regulator control unit |
31 L |
| R13/3 |
Right front seat heated cushion |
42 L |
| R13/4 |
Right front backrest heated cushion |
9 L |
| U12 |
Valid for left-hand steering |
17 D |
| U13 |
Valid for right-hand steering |
17 D |
| U647 |
Valid for seat ventilation |
21 E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
26 E |
| U901 |
Valid for engine 272, E35, ECE |
44 G |
| U911 |
Valid for lumbar support |
30 E |
| W18 |
Ground (left front seat crossmember) |
18 E |
| W19 |
Ground (right front seat crossmember) |
2 E |
| W19 |
Ground (right front seat crossmember) |
8 H |
| W19 |
Ground (right front seat crossmember) |
18 E |
| W26/2 |
Ground (seat, right front sidebag) |
16 L |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
17 H |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6 L |
| Z53/10 |
Interior connector sleeve (seat occupied recognition sensor with ACSR [AKSE]) |
44 E |
| Z6/28 |
Ground connector sleeve (automatic child seat recognition) |
46 |
| Z6/30 |
Circuit 31 connector sleeve |
16 E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
10 E |
| Z61/11 |
Front passenger seat backrest/head restraint motor connector sleeve |
13 E |
| Z61/9 |
Wiring harness connector sleeve for seat, terminal 31K |
36 H |
