Wiring diagram of central CAN - PE00.19-P-2160-97SAA

Code:	Designation:	Position:
A0	Color code key	23L
A1	Instrument cluster	14L
A40/3	COMAND control unit	3L
A40/3	COMAND control unit	3L
A40/3	COMAND control unit	7L
A40/3	COMAND control unit	7L
N93	Central gateway control unit	11L
U237	Valid for COMAND operating unit, {{Japan}} version	5G
U237	Valid for COMAND operating unit, {{Japan}} version	5G
U54	Valid for all except {{Japan}}	1G
U54	Valid for all except {{Japan}}	1G
X18	Cockpit wiring harness and FFS [RBA] connector	4F
X30/20	Central CAN voltage distributor connector	4A
X30/20	Central CAN voltage distributor connector	12A
X30/20	Central CAN voltage distributor connector	17A

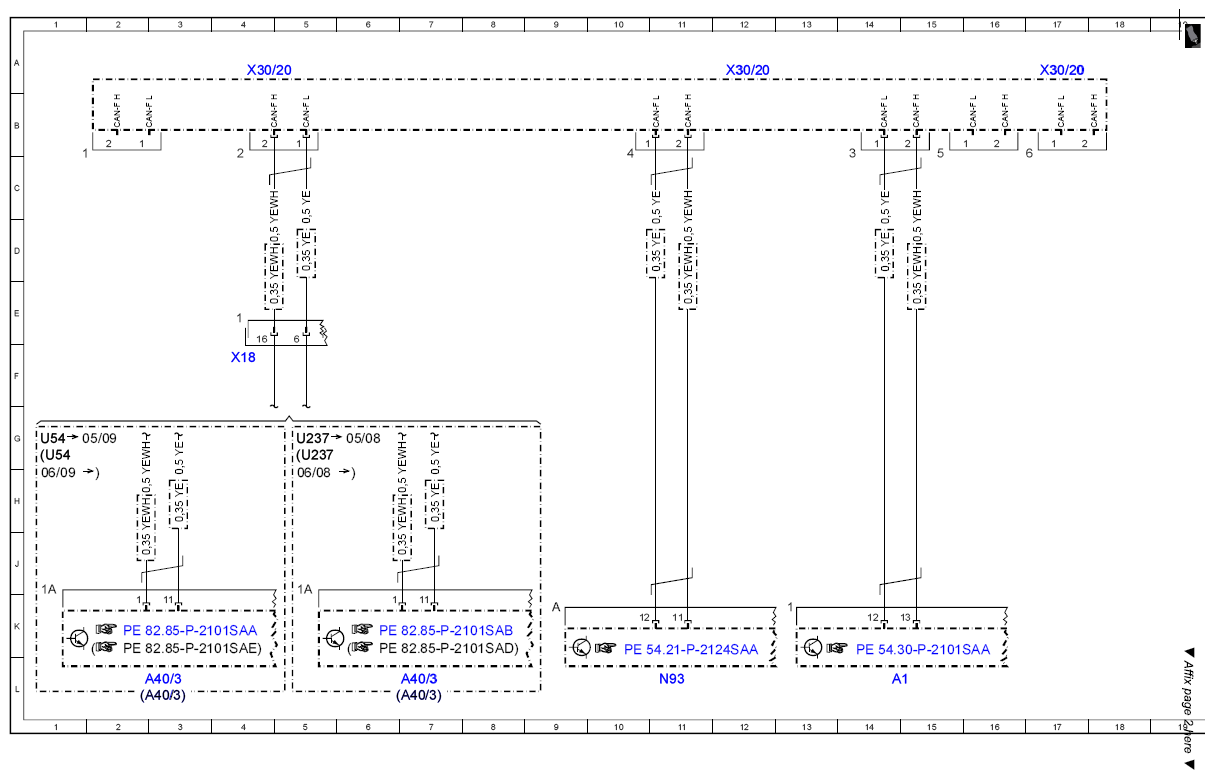

Fig 1: Central CAN - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

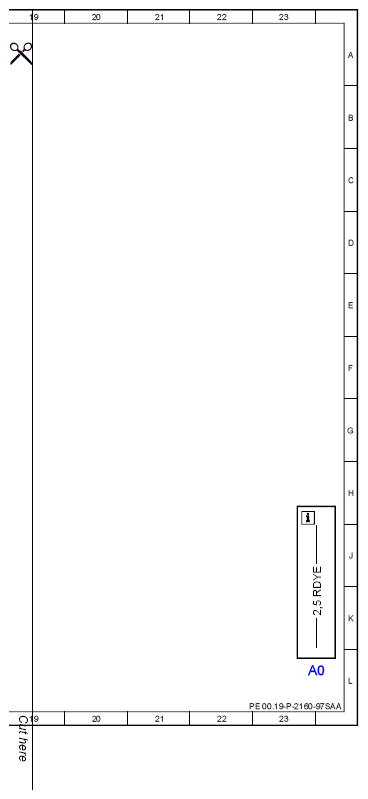

Fig 2: Central CAN - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
