Check setting of windshield washer system spray nozzles - AP82.35-P-8252-01SX
| Risk of fire and explosion caused by igniting windshield cleaning agent and antifreeze and their vapors. Risk of poisoning caused by swallowing windshield cleaning agent and antifreeze and inhaling their vapors. Risk of injury caused by irritation in the event of contact of windshield cleaning agents and antifreezes with eyes, mucous membrane and skin | Wear protective clothing and tight-fitting safety glasses. Keep away from open flames, fire and ignition sources. Avoid contact with eyes, mucous membrane and skin. Do not eat, drink or smoke when dealing with windshield cleaning agents and antifreezes. Do not inhale vapors, ensure adequate ventilation. Only store windshield cleaning agents and antifreezes in tightly sealed original containers and which are inaccessible to children. | AS82.35-Z-0001-01A |

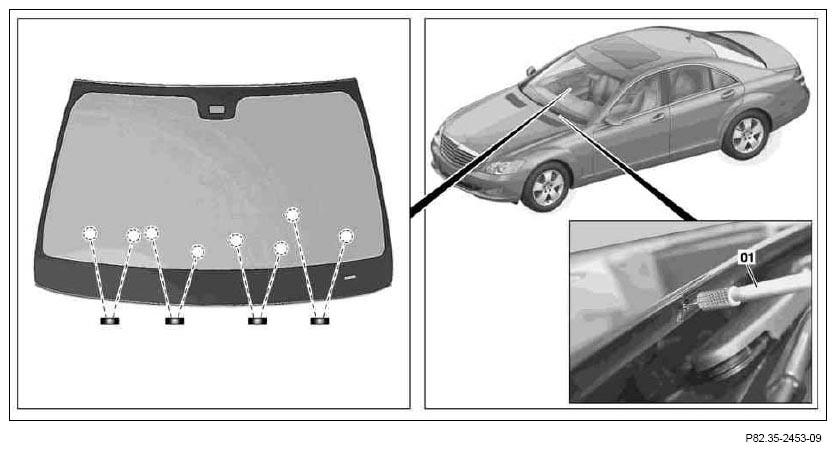

- Check setting of spray nozzles of windshield washer system; if 8 necessary, correct using
adjusting pin (01).
Do not damage paintwork of engine hood!
The spray jet must hit the windshield in the marked area.
