| 1 |
Speaker, actuation |
17E |
| 1 |
Speaker, actuation |
19G |
| 2 |
VICS, signal |
13D |
| 4 |
Circuit 15R/circuit 15, status ON |
8D |
| 4 |
Circuit 15R/circuit 15, status ON |
11E |
| 5 |
Microphone, signal |
14D |
| 5 |
Microphone, signal |
16E |
| 6 |
Multifunction steering wheel button group, signal |
8G |
| 6 |
Multifunction steering wheel button group, signal |
6J |
| 6 |
Multifunction steering wheel button group, signal |
11E |
| A2/37 |
VICS control unit |
12C |
| A40/3 |
COMAND control unit |
13D |
| A40/9 |
Front central operating unit |
13H |
| A40/9s5 |
Telephone/navigation quick select button |
13J |
| A40/9s6 |
Button "ON" |
13J |
| A67b1 |
Hands-free system microphone group |
14C |
| A8/1 |
Transmitter key |
8B |

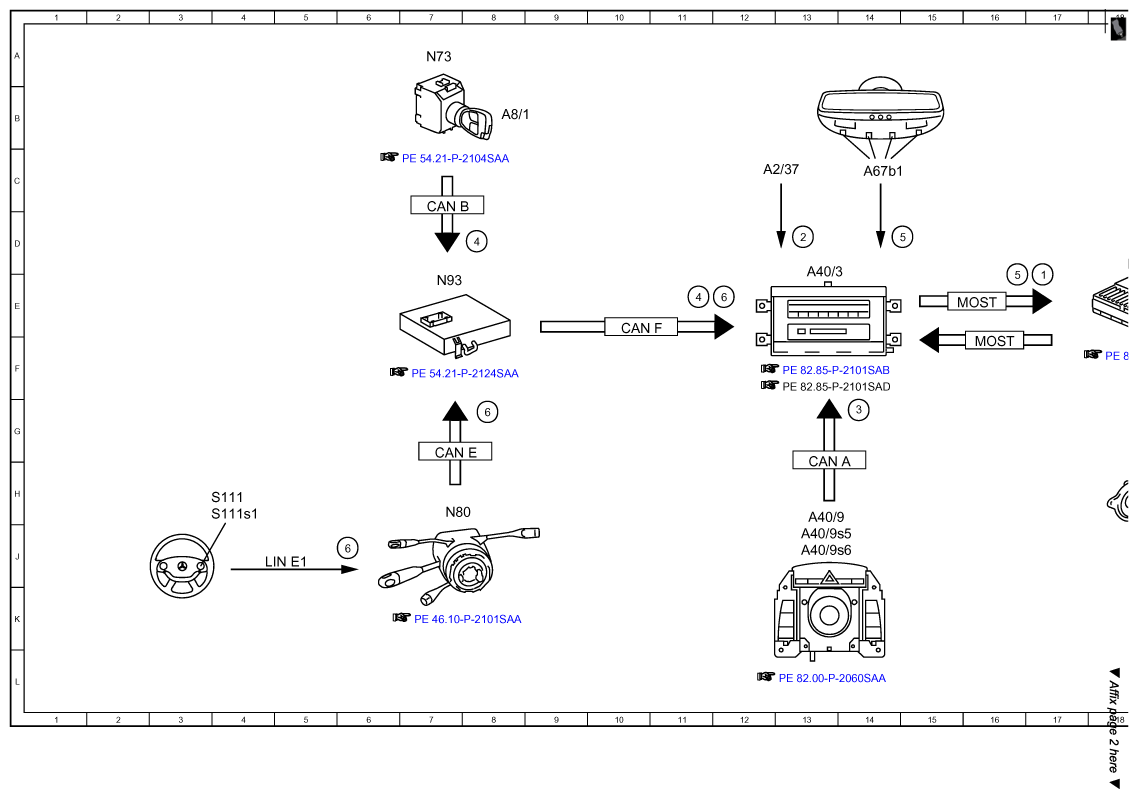

| CAN A |
Telematics CAN |
13G |
| CAN B |
Interior CAN |
7C |
| CAN E |
Chassis CAN |
7G |
| CAN F |
Central CAN |
10E |
| H4/17 |
Bass module speaker |
19H |
| H4/27 |
Center cockpit speaker (centerfill) |
19H |
| H4/3 |
Left rear door speaker group |
19H |
| H4/4 |
Right rear door speaker group |
19H |
| H4/54 |
Left rear surround speaker |
19J |
| H4/57 |
Right rear surround speaker |
19J |
| H4/68 |
Left front door Sound tweeter |
19J |
| H4/69 |
Right front door Sound tweeter |
19K |
| H4/72 |
Left front door Sound woofer and midrange speaker group |
19K |
| H4/73 |
Right front door Sound woofer and midrange speaker group |
19K |
| LIN E1 |
Steering LIN |
4J |
| MOST |
Media Oriented System Transport |
15E |
| MOST |
Media Oriented System Transport |
15E |
| N73 |
EIS [EZS] control unit |
7A |
| N80 |
Steering column module |
7H |
| N93 |
Central gateway control unit |
7E |
| N93/1 |
Audio tuner control unit |
18D |
| S111 |
Right multifunction steering wheel button group |
4H |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
4H |
