Retrofit wiring harness for video jack - AZ82.60-P-0022-01SX

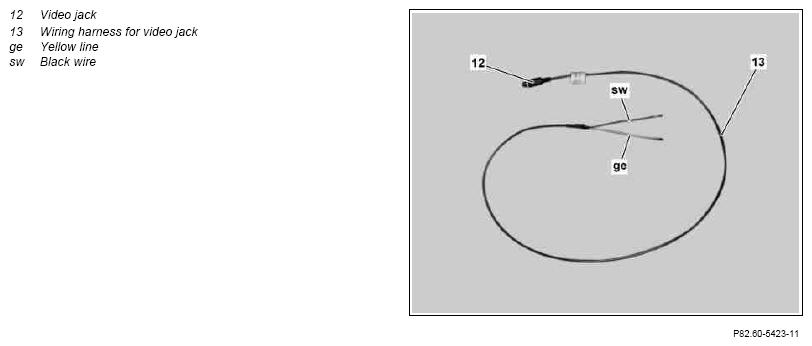

Fig 1: Identifying Video Jack Wiring Harness Components
G07602323Courtesy of MERCEDES-BENZ USA

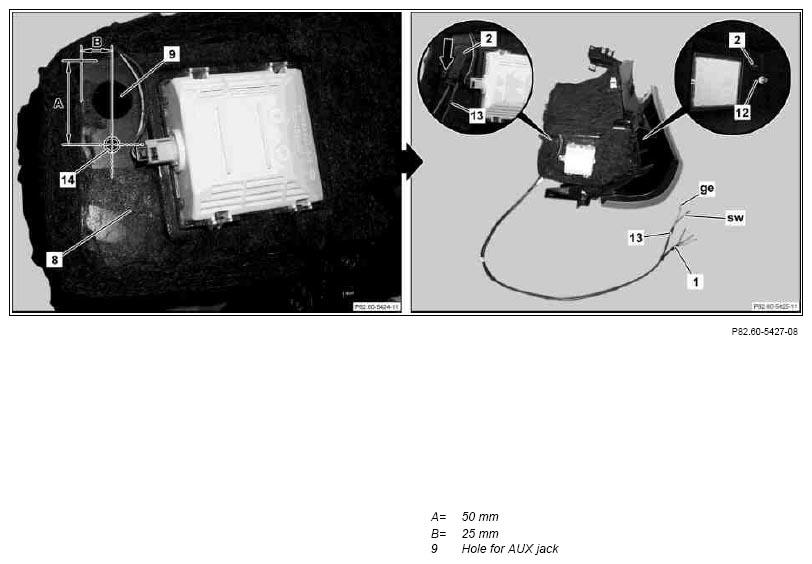

Fig 2: Identifying Video Jack Drilled Hole Dimensions
G07602324Courtesy of MERCEDES-BENZ USA
  1. Drill a hole (14) for the video jack (12) with a diameter of 5.5 mm in the glove compartment (8) as per the dimensions.
  2. Route yellow (ge) and black (sw) line of wiring harness for video jack (13) as per the picture from inside of the glove compartment (8) through hole (14) and insert video jack (12) in hole (14).
  3. Attach wiring harness for video jack (13) as per the picture with a cable tie on the housing of the AUX jack (2) (see arrow in left magnifier).

    IMPORTANT Attach wiring harness for video jack (13) on housing of AUX jack (2) in such a manner that the housing of the video jack (12) makes close contact with the inside of the glove compartment (8) (see right magnifier) and the video jack (12) cannot be drawn into the glove compartment (8).

  4. Fix wiring harness for video jack (13) into position at wiring harness for AUX jack (1) with line fabric tape as per the picture.
  5. Position glove compartment (8) in front passenger footwell.
  6. Route yellow (ge) and black (sw) line of wiring harness for video jack (13) in the radio recess as per the picture.
  7. Disconnect black, 22-pin coupling (5) of COMAND control unit (A40/3).

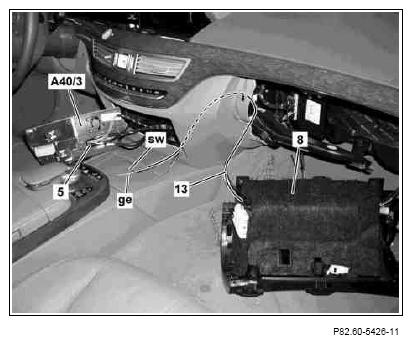

    Fig 3: Routing Yellow And Black Lines Of Wiring Harness For Video Jack
    G07602325Courtesy of MERCEDES-BENZ USA
  8. Release lock (see arrow) on side at coupling (5) and pull black, 20-pin contact carrier (6) of on-board wiring harness (4) out of coupling (5).
    Fig 4: Locating Lock On Coupling
    G07511858Courtesy of MERCEDES-BENZ USA
  9. Insert black line (sw) of wiring harness for video jack (13) into contact cavity 18 of black, 20-pin contact carrier (6).
  10. Insert yellow line (ge) of wiring harness for video jack (13) into contact cavity 8 of black, 20-pin contact carrier (6).
  11. Install 20-pin contact carrier (6) into black, 22-pin coupling and connect black, 22-pin coupling to COMAND control unit.
  12. Fix wiring harness for video jack (13) in position at on-board wiring harnesses free of chafing and noise.

    IMPORTANT Wiring harness for video jack (13) can only be fixed into position free of chafing and noise after installation of the glove compartment.

    Fig 5: Identifying Lines, 20-Pin Contact Carrier And Video Jack
    G07511870Courtesy of MERCEDES-BENZ USA
