Retrofit wiring harness for AUX jack - AZ82.60-P-0021-01SX

Release black, 3-pin coupling (3) of wiring harness for AUX jack (1).
Unplug white (ws), brown (br) and transparent (tr) lines from the black, 3-pin coupling (3).
The black, 3-pin coupling (3) is no longer needed.

Fig 1: Identifying AUX Jack Wiring Harness Components
Courtesy of MERCEDES-BENZ USA

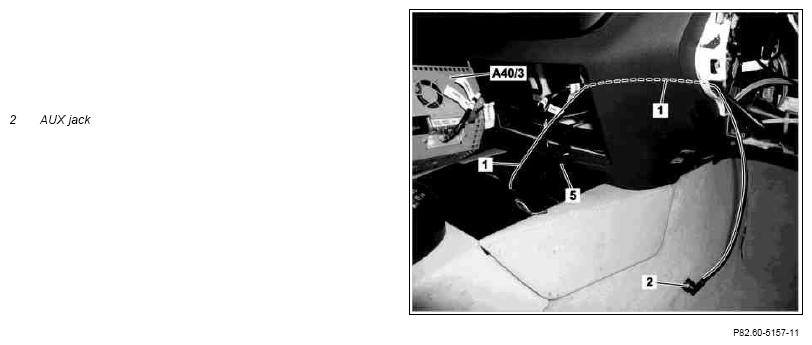

Route wiring harness for AUX jack (1) in the instrument panel as per the picture.
Disconnect black, 22-pin coupling (5) of COMAND control unit (A40/3).

Fig 2: Routing Wiring Harness For Aux Jack In Instrument Panel
Courtesy of MERCEDES-BENZ USA
Release lock (see arrow) on side at coupling (5) and pull black, 20-pin contact carrier (6) of on-board wiring harness (4) out of coupling (5).

Fig 3: Locating Side Coupling Lock
Courtesy of MERCEDES-BENZ USA
Insert transparent line (tr) of wiring harness for AUX jack (1) into contact cavity 6 of black, 20-pin contact carrier (6).
Insert brown line (br) of wiring harness for AUX jack (1) into contact cavity 5 of black, 20-pin contact carrier (6).

Fig 4: Inserting Lines For Aux Jack Into Contact Carrier
Courtesy of MERCEDES-BENZ USA
Insert white line (ws) of wiring harness for AUX jack (1) into contact cavity 15 of black, 20-pin contact carrier (6).

Fig 5: Inserting White Line Of AUX Jack Wiring Harness Into Contact Carrier
Courtesy of MERCEDES-BENZ USA

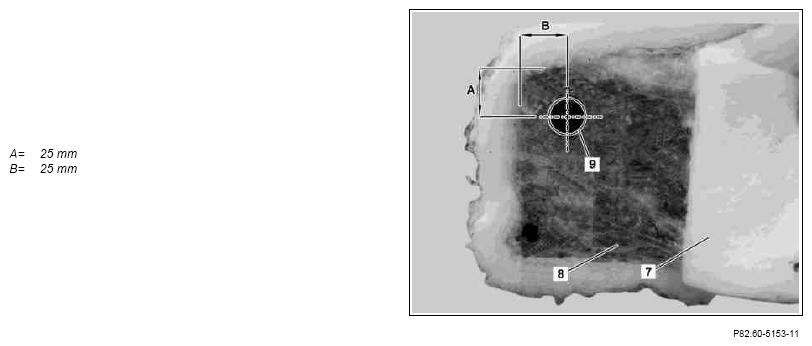

Detach soundproofing material (7) in area of the hole to be drilled (9) from the glove compartment (8).
Drill a hole (9) with a diameter of 18.5 mm in the glove compartment (8) as per the dimensions.
The diameter must not be larger than 18.5 mm.

Fig 6: Identifying Glove Compartment Hole Dimensions
Courtesy of MERCEDES-BENZ USA
Unclip cage (11) using a narrow flat tip screwdriver (10) from the AUX jack (2).

Fig 7: Unclipping Cage
Courtesy of MERCEDES-BENZ USA
Install AUX jack (2) in glove compartment (8) and glue on soundproofing material (7).

Fig 8: Identifying Aux Jack, Glove Compartment And Soundproofing Material
Courtesy of MERCEDES-BENZ USA
Counterhold AUX jack (2) from the rear and clip cage (11) onto AUX jack (2).
The cage (11) is mechanically coded and can only be installed in one position (tongue and groove).

Fig 9: Identifying Aux Jack And Cage
Courtesy of MERCEDES-BENZ USA
