Retrofit rear entertainment control unit - AZ82.60-P-0015-01SXA

Bond felt tape onto video control unit (1).
The side of the video control unit (1) with the mounting brackets is not bonded.

Fig 1: Identifying Video Control Unit
Courtesy of MERCEDES-BENZ USA
Fasten video control unit (1) at strut of seat frame using screws/bolts (20) and nuts contained in installation kit.

Fig 2: Identifying Video Control Unit And Screws/Bolts
Courtesy of MERCEDES-BENZ USA
Bond felt tape onto rear entertainment control unit (2).
Do not bond the bottom of the rear entertainment control unit (2).

Fig 3: Identifying Control Unit
Courtesy of MERCEDES-BENZ USA
Glue rear entertainment control unit (2) using Velcro strip (21) onto cross strut (22).
The bonding areas must be free of dust and grease in order to prevent adhesion problems.

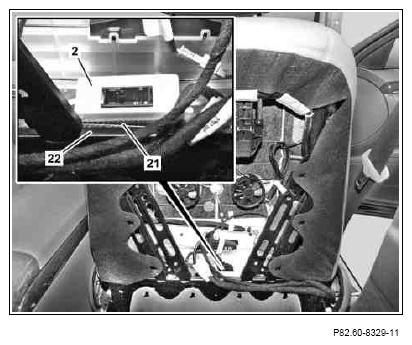

Fig 4: Identifying Rear Entertainment Control Unit, Velcro Strip And Cross Strut
Courtesy of MERCEDES-BENZ USA
