Retrofit Mercedes-Benz InCar Internet adapter wiring harness - AZ82.85-P-0005-02SX

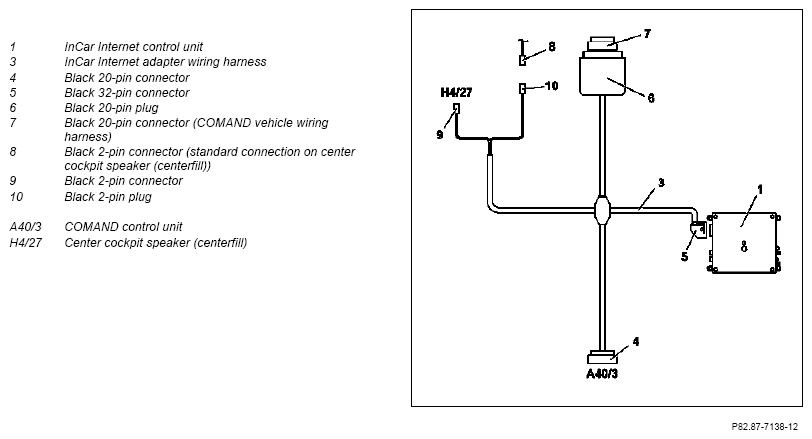

Connection scheme

Fig 1: Mercedes-Benz Incar Internet Adapter Wiring Harness Connection Scheme

Courtesy of MERCEDES-BENZ USA

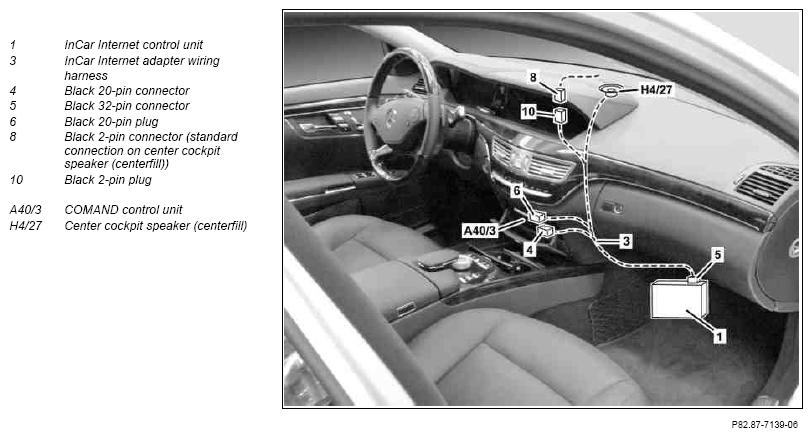

Routing diagram, shown on model 221

Fig 2: Mercedes-Benz Incar Internet Adapter Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

1. Wrap felt tape around speaker branch-off line (3.1) of InCar Internet adapter wiring harness (3).
   Fig 3: Wrapping Felt Tape Around Speaker Branch-Off Line

   Courtesy of MERCEDES-BENZ USA
2. Connect black 20-pin plug connector (6) of InCar Internet adapter wiring harness (3) to black 20-pin connector (7) of vehicle wiring harness.
3. Remove black, 2-pin optical fiber connector (11) from black, 20-pin connector (7), and install in black, 20-pin connector (4).
4. Route InCar Internet adapter wiring harness (3) at bottom left in installation opening.
   Fig 4: Identifying InCar Internet Adapter Wiring Harness Connectors

   Courtesy of MERCEDES-BENZ USA

   The black 20-pin connector (4) will be connected to the COMAND controller unit at a later stage. The InCar Internet adapter wiring harness (3) obstructs the installation of the COMAND controller unit because of its size.

   The COMAND controller unit is only possible when the InCar Internet adapter wiring harness (3) is located as low down as possible in the rear area.

5. Route black, 32-pin connector (5) of InCar Internet adapter wiring harness (3) into the front passenger footwell.

   The black, 32-pin connector (5) will be connected to the InCar Internet control unit (1) at a later stage.

   Fig 5: Routing Incar Internet Adapter Wiring Harness

   Courtesy of MERCEDES-BENZ USA
6. Route black 2-pin plug connector and black 2-pin connector of speaker branch-off line (3.1) of InCar Internet adapter wiring harness (3), as shown, to the installation location of the center cockpit speaker (centerfill) (H4/27).

   Use a pull-through device.

   Fig 6: Routing Speaker Branch-Off Line

   Courtesy of MERCEDES-BENZ USA
7. Detach black 2-pin connector (8) from center cockpit speaker (centerfill) (H4/27).
8. Connect black, 2-pin plug (10) to black 2-pin connector (8) of vehicle wiring harness.
9. Connect black 2-pin connector (9) to center cockpit speaker (centerfill) (H4/27).
   Fig 7: Identifying Center Cockpit Speaker, 2-Pin Plug & Connectors

   Courtesy of MERCEDES-BENZ USA
