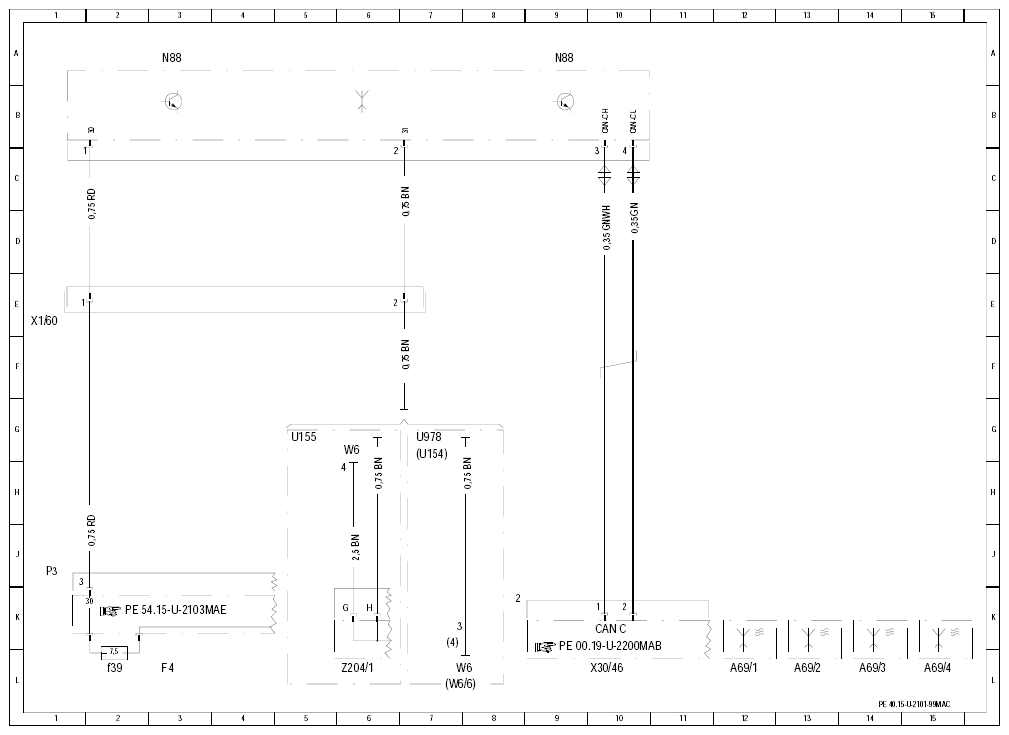

| A69/1 |
Left front TPM [RDK] wheel sensor |
12 L |
| A69/2 |
Right front TPM [RDK] wheel sensor |
13 L |
| A69/3 |
Left rear TPM [RDK] wheel sensor |
14 L |
| A69/4 |
Right rear TPM [RDK] wheel sensor |
15 L |
| CAN C |
Engine compartment CAN |
10 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f39 |
Fuse 39 |
2 L |
| N88 |
TPM [RDK] control unit |
3 A |
| N88 |
TPM [RDK] control unit |
9 A |
| U154 |
Valid for 164.1 |
7 H |
| U155 |
Valid for 164.8 |
5 G |
| U978 |
Valid for full hybrid drive |
7 G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
6 H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
7 L |
| W6/6 |
Ground (left spare tire well) |
7 L |
| X1/60 |
Tire pressure monitor connector |
1 E |
| X30/46 |
Rear end CAN C potential distributor connector |
10 L |
| Z204/1 |
Circuit 31 left wheelhouse luggage compartment voltage distributor connector |
6 L |
