| F4 |
Load compartment fuse and relay box |
3 L |
| F4f48 |
Fuse 48 |
4 L |
| F4f52 |
Fuse 52 |
5 L |
| F4f69 |
Fuse 69 |
2 J |
| M70 |
Rear axle differential actuator motor |
14 L |
| M70x1 |
Rear axle differential actuator motor connector |
12 J |
| M70x2 |
Rear axle differential actuator motor connector |
16 J |

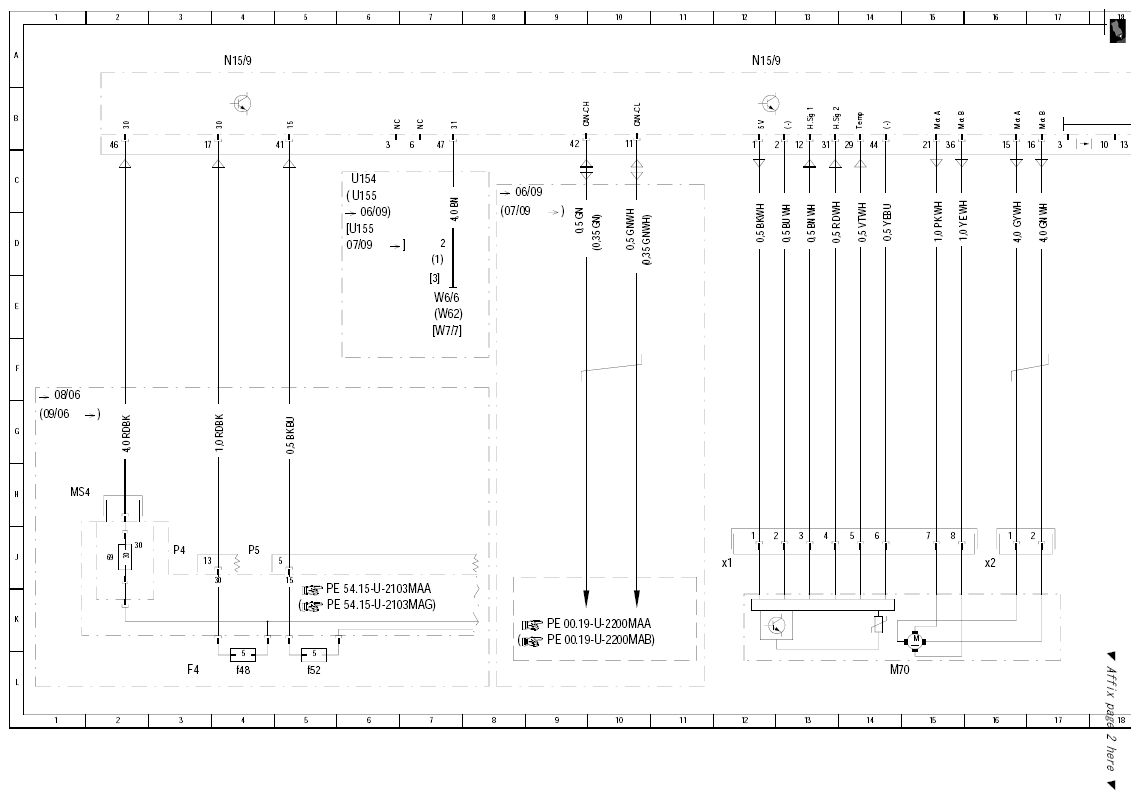

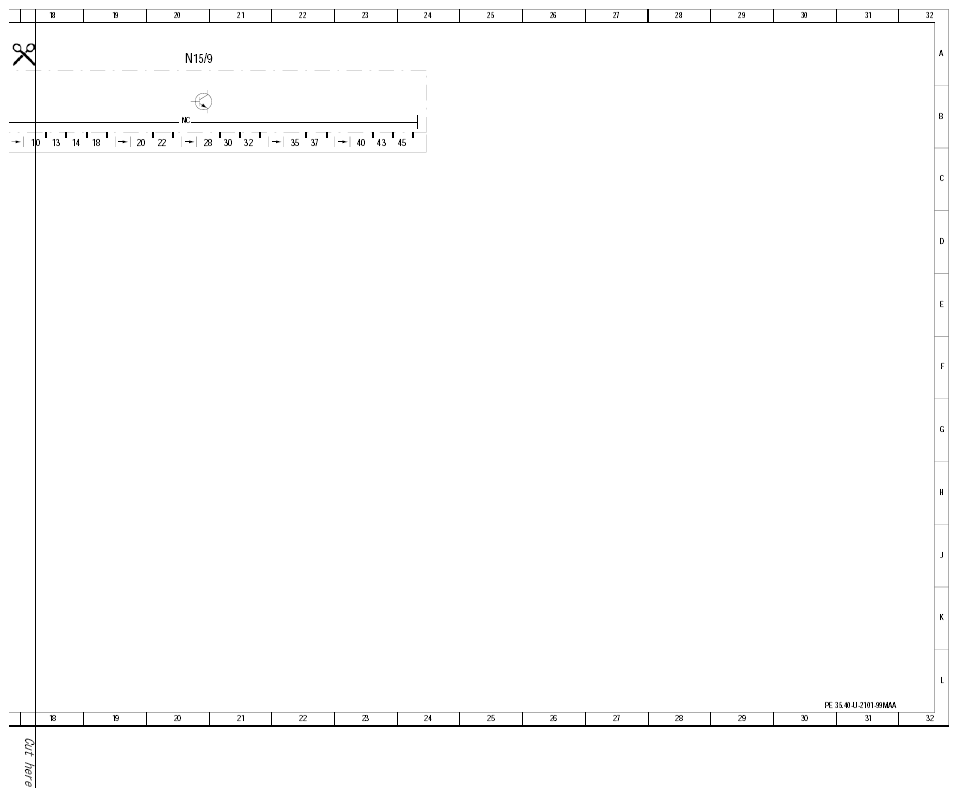

| N15/9 |
Rear axle differential lock control unit |
4 A |
| N15/9 |
Rear axle differential lock control unit |
12 A |
| N15/9 |
Rear axle differential lock control unit |
20 A |
| U154 |
Valid for 164.1 |
6 C |
| U155 |
Valid for 164.8 |
6 D |
| U155 |
Valid for 164.8 |
6 C |
| W6/6 |
Ground (left spare tire well) |
7 E |
| W62 |
Ground (left rear longitudinal member) |
7 E |
| W7/7 |
Ground (right spare tire well) |
7 F |
