Remove/install front axle gear - AR33.30-P-0525GZ

Model 164

Shown on MODEL 164.175 with CODE 489 (AIRmatic)

Shown on MODEL 164.175 with CODE 489 (AIRmatic)

Shown on MODEL 164.175 with CODE 489 (AIRmatic)

Shown on MODEL 164.175 with CODE 489 (AIRmatic)

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on installing brake hoses		AH42.10-P-9406-01GZ
	Remove/install
1	Switch off ignition and remove transmitter key
2	Remove the transmitter key from the vehicle and store it in a location beyond its transmission range (at least 2 meters).	Model 164 with code 889 (KEYLESS-GO)
3	Remove front wheel and tire assembly
			AP40.10-P-4050Z

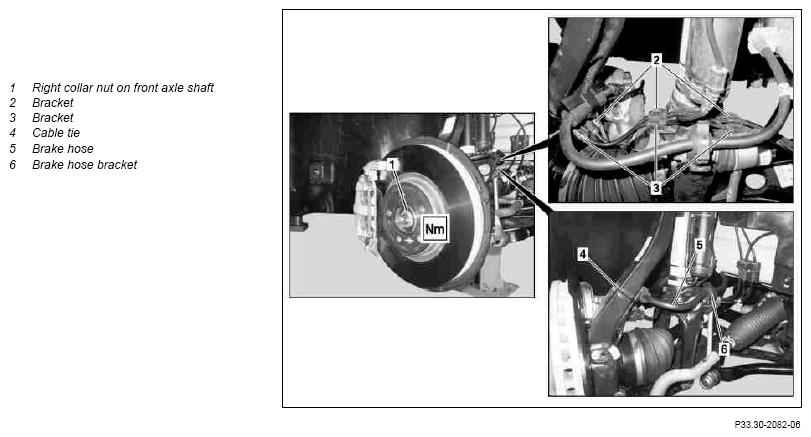

4	Unscrew right collar nut on front axle shaft (1)	For counterholding purposes an assistant must apply the brake.
		Model 164.1 Model 164.8 Collar nut, front axle shaft to front axle shaft flange	*BA33.30-P-1001-02D
5.1	Detach lower engine compartment paneling	Model 164 with engine 113 Model 164 with engine 156 Model 164 with engine 272 Model 164 with engine 273
			AR61.20-P-1105GZ
5.2	Remove bottom section of soundproofing	Model 164 with engine 629 Model 164 with engine 642
			AR94.30-P-5300GZ
6	Remove electrical lines from brackets (2, 3)
7	Cut off cable ties (4)	Pay attention to installation position.
		Pliers	Figure
8	Remove brake hose (5) from brake hose bracket (6)

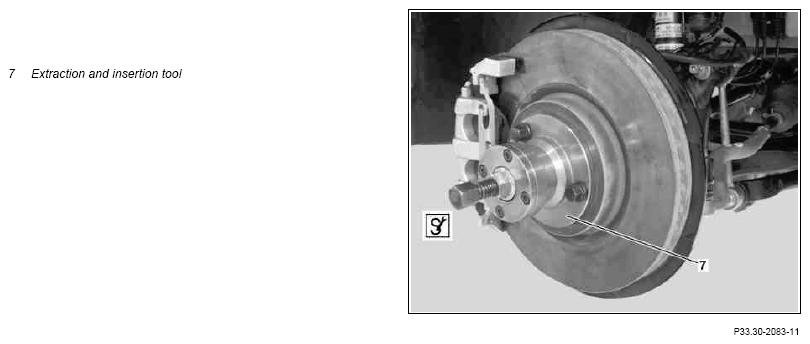

9	Release right front axle shaft (11) from right wheel hub using extraction and insertion tool (7)	Extraction and insertion tool	Figure

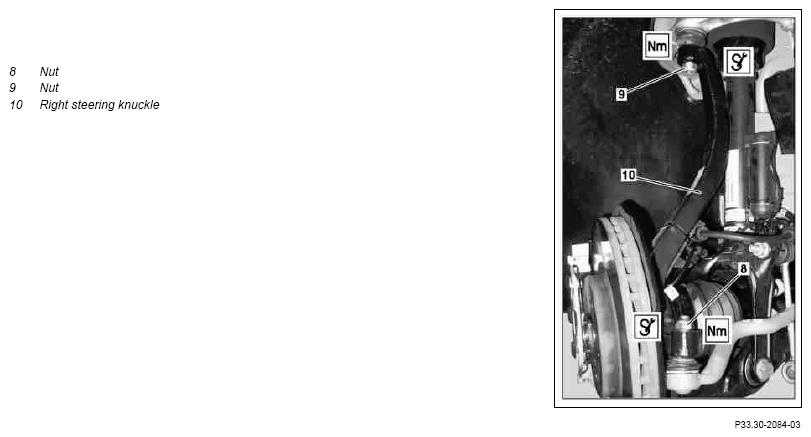

10	Unscrew nut (8) and press right tie rod out of right steering knuckle (10)	Model 164.1/8 Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1002-01K
		Thrust piece	Figure
		Puller	Figure
11	Unscrew nut (9) and press right steering knuckle (10) out of transverse control arm	Model 164.1/8 Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	*BA33.20-P-1001-01J
		Thrust piece	Figure
		Puller	Figure
12	Secure right steering knuckle (10) using cable ties on transverse control arm
13	Swivel right steering knuckle (10) out of working area	Bend transverse control arm as little as possible. Otherwise the bearing shells may be damaged.

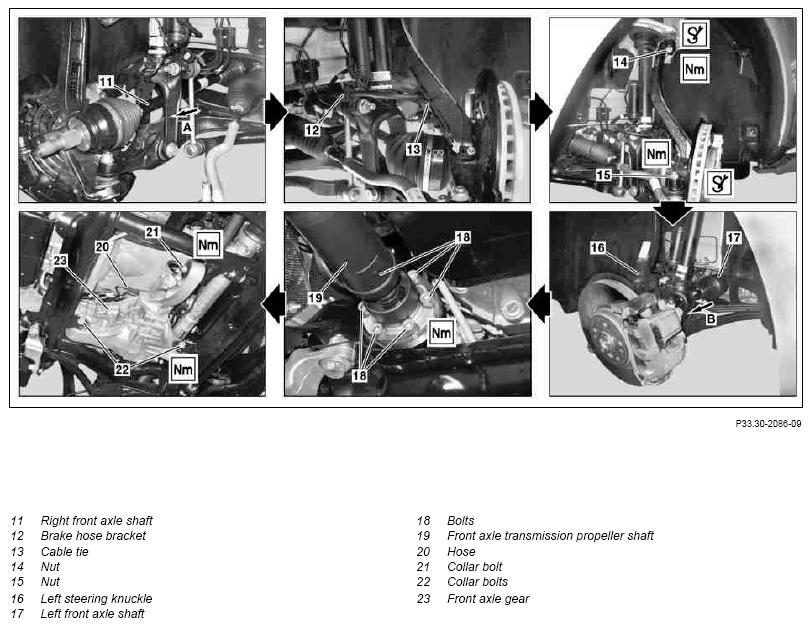

14	Pull right front axle shaft (11) out of front axle transmission (23) (arrow A) and collect any escaping oil	Retaining ring must be replaced.
15	Remove right front axle shaft (11)
16	Remove brake hose from brake hose bracket (12)
17	Cut off cable ties (13)
18	Unscrew nut (15) and press left tie rod out of left steering knuckle (16)	Model 164.1/8 Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1002-01K
		Thrust piece	Figure
		Puller	Figure
19	Unscrew nut (14) and remove left steering knuckle (16) from upper left transverse control arm	Bend transverse control arm as little as possible. Otherwise the bearing shells may be damaged. Aid of helper required.
		Model 164.1/8 Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	*BA33.20-P-1001-01J
		Thrust piece	Figure
		Puller	Figure
20	Pull left front axle shaft (17) out of front axle transmission (23) (arrow B) and collect any escaping oil	Retaining ring must be replaced. Left front axle shaft remains mounted to left wheel hub.
21	Mark position of front axle gear propeller shaft (19) relative to flange of front axle gear (23)	Aid of helper required.
22	Remove bolts (18) and detach front axle gear propeller shaft (19) from front axle gear (23)	Tightening procedure for front propeller shaft Model 164 (except 164.156) Tightening specifications must be strictly observed!. Otherwise this may lead to noise development and vibrations.	AR41.10-P-0070-03GZ
		Model 164.1/8 Self-locking bolt, propeller shaft to front axle gear	*BA41.10-P-1004-01F
		Retainer wrench	Figure
23	Detach hose (20) and seal off end of hose and connection fitting	Record plug	Figure
24	Secure front axle transmission (23) using suitable tool against falling down
25	Unscrew collar bolt (21) and collar bolts (22)	Aid of helper required.
		Model 164.1/8 Bolt/nut, front axle transmission to front axle carrier	*BA33.30-P-1003-03F
		Model 164.1/8 Bolt/nut, front axle transmission to front axle carrier	*BA33.30-P-1003-03F
26	Remove front axle transmission (23) and collect any escaping oil	Aid of helper required.
27	Install in the reverse order
	Check
28	Check oil level in front axle gear (23) and top up if necessary	Sealing for oil filler screw must be replaced.
		Model 164.1/8 Front axle transmission filling screw	*BA33.30-P-1001-03F
		Model 164.1/8 Filling capacity	*BF33.30-P-1001-03D

Number	Designation			Model 164.1/8
BA33.20-P-1001-01J	Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	Stage 1	Nm	20
		Stage 2	∠°	90

Number	Designation			Model 164.1	Model 164.8
BA33.30-P-1001-02D	Collar nut, front axle shaft to front axle shaft flange	Stage 1	Nm	250	260
		Stage 2	∠°	45	45

Number	Designation		Model 164.1/8
BA33.30-P-1001-03F	Front axle transmission filling screw	Nm	35

Number	Designation				Model 164.1/8
BA33.30-P-1003-03F	Bolt/nut, front axle transmission to front axle carrier	M10	Stage 1	Nm	50
			Stage 2	∠°	-
		M12	Stage 1	Nm	93
			Stage 2	∠°	-

Number	Designation			Model 164.1/8
BA41.10-P-1004-01F	Self-locking bolt, propeller shaft to front axle gear	Stage 1	Nm	40
		Stage 2	∠°	90

Number	Designation			Model 164.1/8
BA46.40-P-1002-01K	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	45
		Stage 2	∠°	90

Number	Designation			Model 164.1/8
BF33.30-P-1001-03D	Filling capacity	Front axle transmission	Liter	1, 1
		Specification		Universal hypoid gear oils (specification 235.7)
