| F4 |
Load compartment fuse and relay box |
11 L |
| F4 |
Load compartment fuse and relay box |
57 L |
| F4f31 |
Fuse 31 |
56 L |
| F4f68 |
Fuse 68 |
10 K |

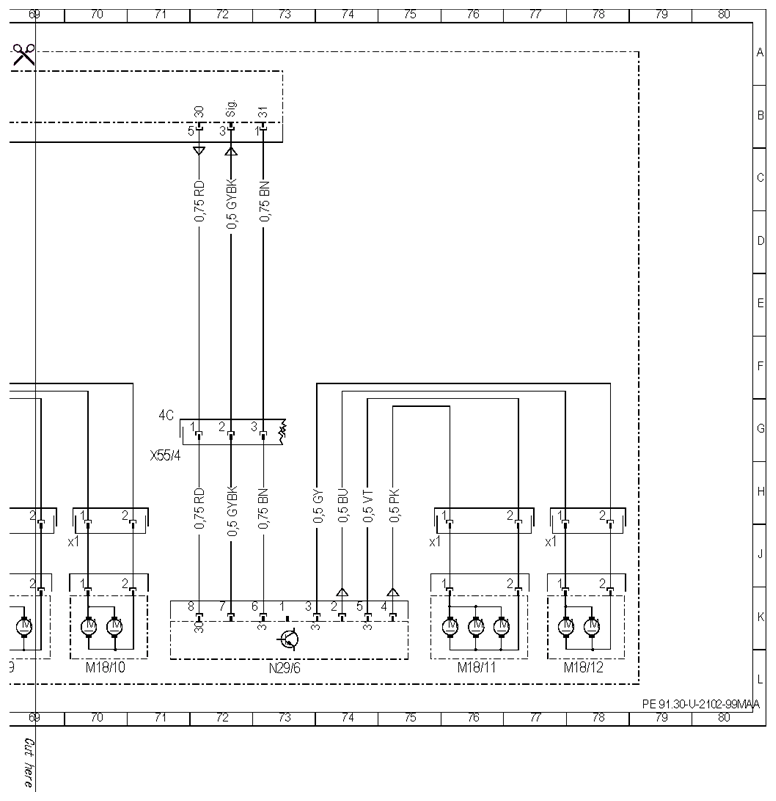

| M18/10 |
Left front seat backrest ventilation motor group |
70 L |
| M18/10x1 |
Left front seat backrest ventilation motor group connector |
69 J |
| M18/11 |
Right front seat cushion ventilation motor group |
76 L |
| M18/11x1 |
Right front seat cushion ventilation motor group connector |
75 J |
| M18/12 |
Right front seat backrest ventilation motor group |
77 L |
| M18/12x1 |
Right front seat backrest ventilation motor group connector |
77 J |
| M18/9 |
Left front seat cushion ventilation motor group |
68 L |
| M18/9x1 |
Left front seat cushion ventilation motor group connector |
67 J |

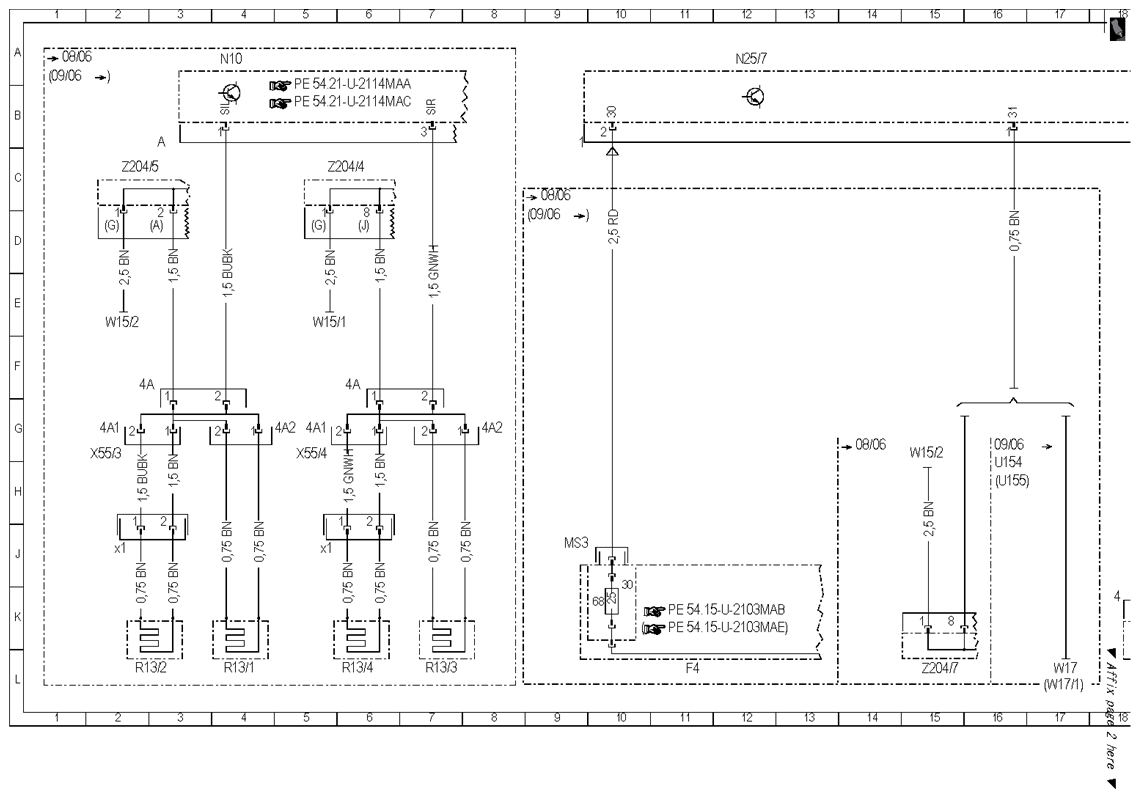

| N10 |
Front SAM control unit |
4 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
12 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
20 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
28 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
36 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
44 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
52 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
60 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
68 A |
| N29/5 |
Left front seat ventilation blower regulator |
65 L |
| N29/6 |
Right front seat ventilation blower regulator |
73 L |
| N80 |
Steering column module |
61 L |
| R13/1 |
Left front seat heated cushion |
4 L |
| R13/2 |
Left front backrest heated cushion |
2 L |
| R13/2x1 |
Left front backrest heated cushion connector |
2 J |
| R13/3 |
Right front seat heated cushion |
7 L |
| R13/4 |
Right front backrest heated cushion |
6 L |
| R13/4x1 |
Right front backrest heater element connector |
5 J |
| R13/5 |
Left 2nd row seat heated cushion |
24 L |
| R13/5 |
Left 2nd row seat heated cushion |
33 L |
| R13/5 |
Left 2nd row seat heated cushion |
40 L |
| R13/5 |
Left 2nd row seat heated cushion |
49 L |

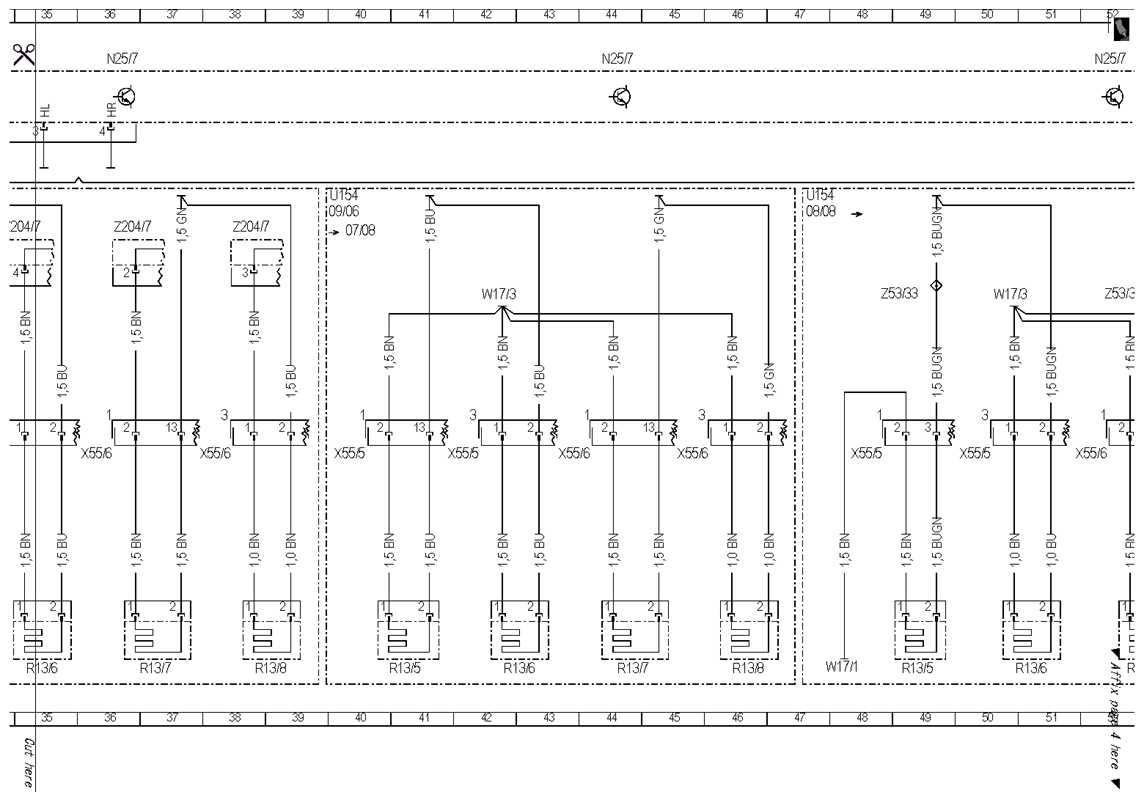

| R13/6 |
Left 2nd row backrest heated cushion |
25 L |
| R13/6 |
Left 2nd row backrest heated cushion |
35 L |
| R13/6 |
Left 2nd row backrest heated cushion |
42 L |
| R13/6 |
Left 2nd row backrest heated cushion |
50 L |
| R13/7 |
Right 2nd row seat heated cushion |
29 L |
| R13/7 |
Right 2nd row seat heated cushion |
36 L |
| R13/7 |
Right 2nd row seat heated cushion |
44 L |
| R13/7 |
Right 2nd row seat heated cushion |
52 L |
| R13/8 |
Right 2nd row backrest heated cushion |
30 L |
| R13/8 |
Right 2nd row backrest heated cushion |
38 L |
| R13/8 |
Right 2nd row backrest heated cushion |
46 L |
| R13/8 |
Right 2nd row backrest heated cushion |
54 L |
| U154 |
Valid for 164.1 |
16 H |
| U154 |
Valid for 164.1 |
31 C |
| U154 |
Valid for 164.1 |
39 C |
| U154 |
Valid for 164.1 |
47 C |
| U155 |
Valid for 164.8 |
16 H |
| U155 |
Valid for 164.8 |
21 C |
| U647 |
Valid for seat ventilation |
63 A |

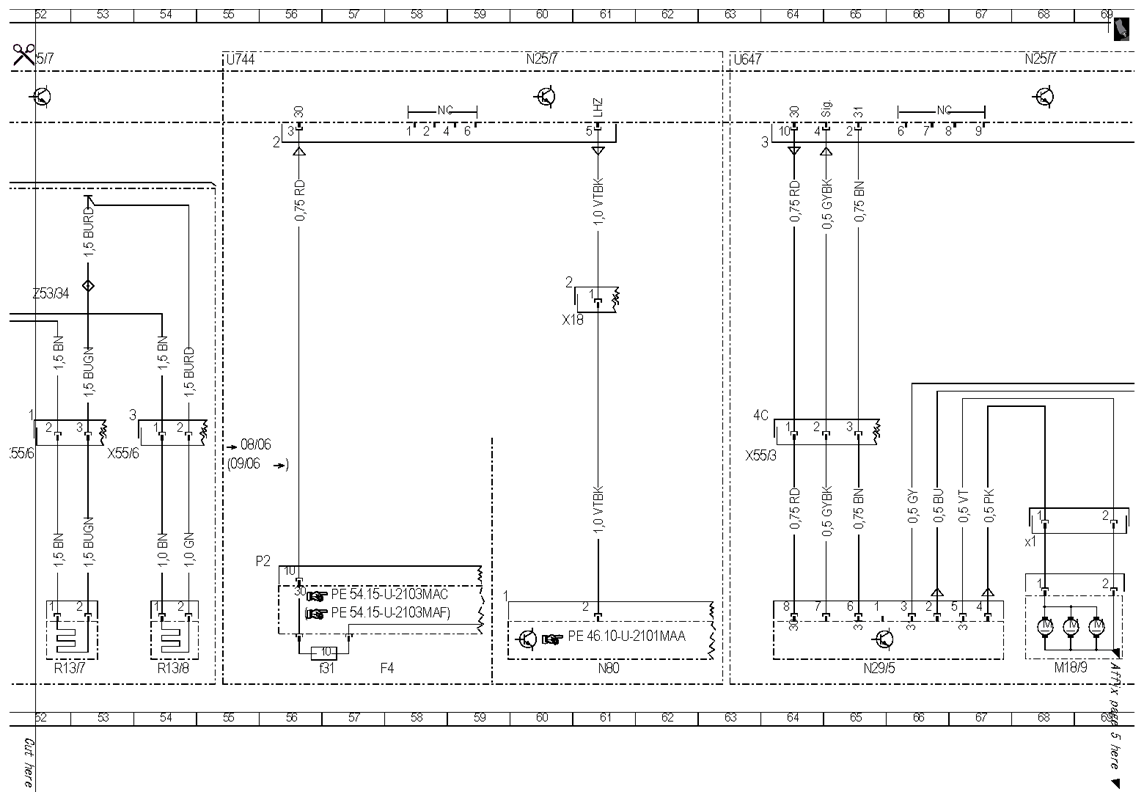

| U744 |
Valid for steering wheel heater |
55 A |
| W15/1 |
Ground (right footwell) |
5 E |
| W15/2 |
Ground (left footwell) |
2 E |
| W15/2 |
Ground (left footwell) |
15 H |
| W17 |
Ground (right rear seat) |
17 L |
| W17/1 |
Ground (left rear seat) |
17 L |
| W17/1 |
Ground (left rear seat) |
22 E |
| W17/1 |
Ground (left rear seat) |
27 E |
| W17/1 |
Ground (left rear seat) |
47 L |
| W17/3 |
Ground 2 (right rear seat) |
42 E |
| W17/3 |
Ground 2 (right rear seat) |
50 E |
| X18 |
Interior/cockpit connector |
60 E |

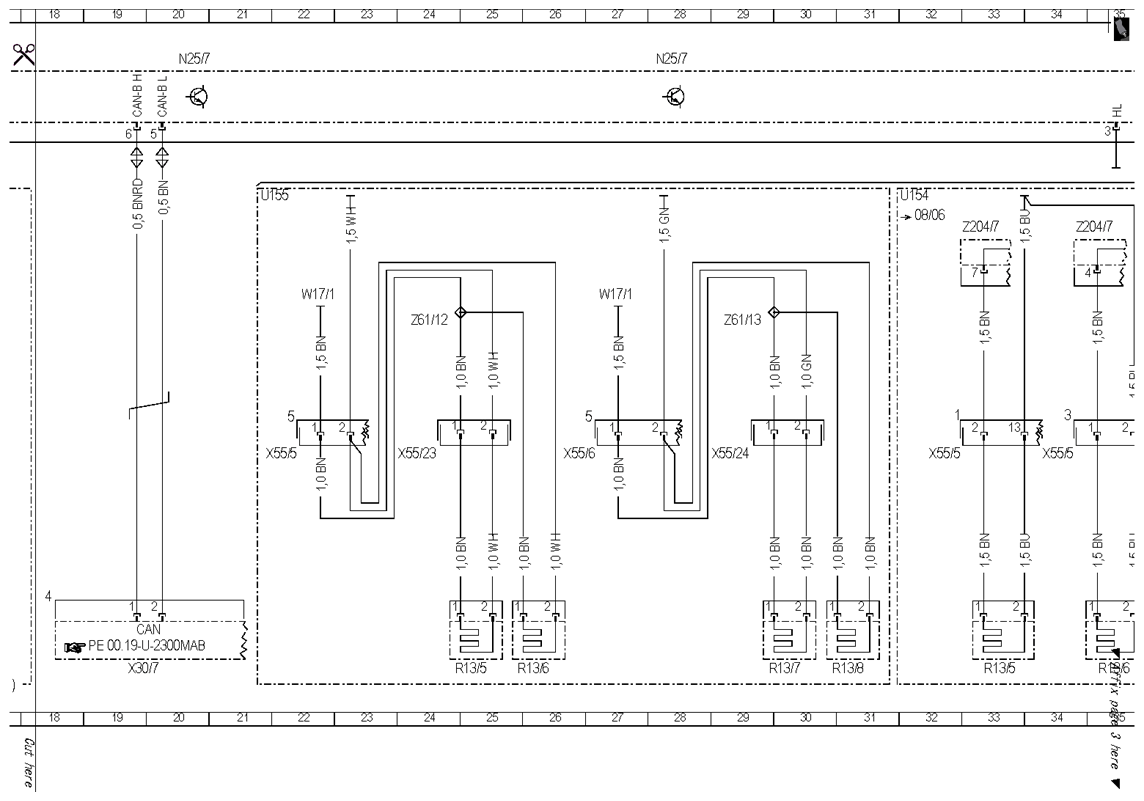

| X30/7 |
Voltage distributor (CAN) connector |
19 L |
| X55/23 |
Left 2/3 bench seat (2nd seat row) backrest/cushion separation point |
23 H |
| X55/24 |
Right 1/3 bench seat (2nd seat row) backrest/cushion separation point |
28 H |
| X55/3 |
Left front seat contacting strip |
2 H |
| X55/3 |
Left front seat contacting strip |
63 H |
| X55/4 |
Right front seat contacting strip |
5 H |
| X55/4 |
Right front seat contacting strip |
71 H |
| X55/5 |
Left rear seat adjustment connector block |
21 H |
| X55/5 |
Left rear seat adjustment connector block |
32 H |
| X55/5 |
Left rear seat adjustment connector block |
34 H |
| X55/5 |
Left rear seat adjustment connector block |
40 H |
| X55/5 |
Left rear seat adjustment connector block |
41 H |
| X55/5 |
Left rear seat adjustment connector block |
48 H |
| X55/5 |
Left rear seat adjustment connector block |
50 H |
| X55/6 |
Right rear seat adjustment connector block |
26 H |
| X55/6 |
Right rear seat adjustment connector block |
36 H |
| X55/6 |
Right rear seat adjustment connector block |
37 H |
| X55/6 |
Right rear seat adjustment connector block |
43 H |
| X55/6 |
Right rear seat adjustment connector block |
45 H |
| X55/6 |
Right rear seat adjustment connector block |
51 H |
| X55/6 |
Right rear seat adjustment connector block |
53 H |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
5 C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
2 C |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
15 L |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
32 D |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
34 D |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
36 D |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
38 D |
| Z53/33 |
Left 2nd seat row seat heater terminal connector |
48 E |
| Z53/34 |
Right IRM 2SR seat heater terminal connector |
52 E |
| Z61/12 |
Left circuit 31 2nd seat row solder point |
24 E |
| Z61/13 |
Right circuit 31 2nd seat row solder point |
29 E |
