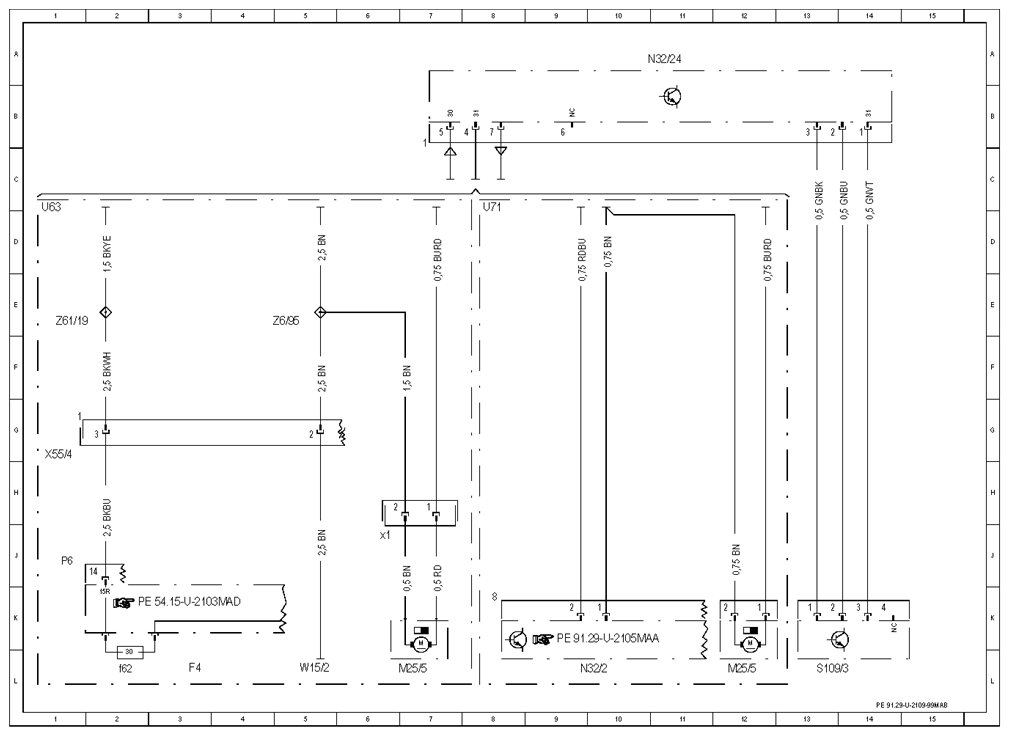

| F4 |
Load compartment fuse and relay box |
3 L |
| F4f62 |
Fuse 62 |
2 L |
| M25/5 |
Front passenger lumbar support pump |
6 L |
| M25/5 |
Front passenger lumbar support pump |
12 L |
| M25/5x1 |
Front passenger seat lumbar support pneumatic pump electrical connector |
6 J |
| N32/2 |
Front passenger front seat adjustment control unit with memory |
9 L |
| N32/24 |
Front passenger lumbar support regulator control unit |
10 A |
| S109/3 |
Front passenger lumbar support adjustment switch |
13 L |
| U63 |
Valid for seat adjustment without memory |
1 D |
| U71 |
Valid for seat adjustment with memory |
8 D |
| W15/2 |
Ground (left footwell) |
5 L |
| X55/4 |
Right front seat contacting strip |
1 H |
| Z6/95 |
Passenger seat circuit 31 connector sleeve |
4 E |
| Z61/19 |
Front passenger seat circuit 15R connector sleeve |
1 E |
