| F4 |
Load compartment fuse and relay box |
17 A |
| F4f27 |
Fuse 27 |
18 A |
| F4f28 |
Fuse 28 |
15 A |
| K24/1 |

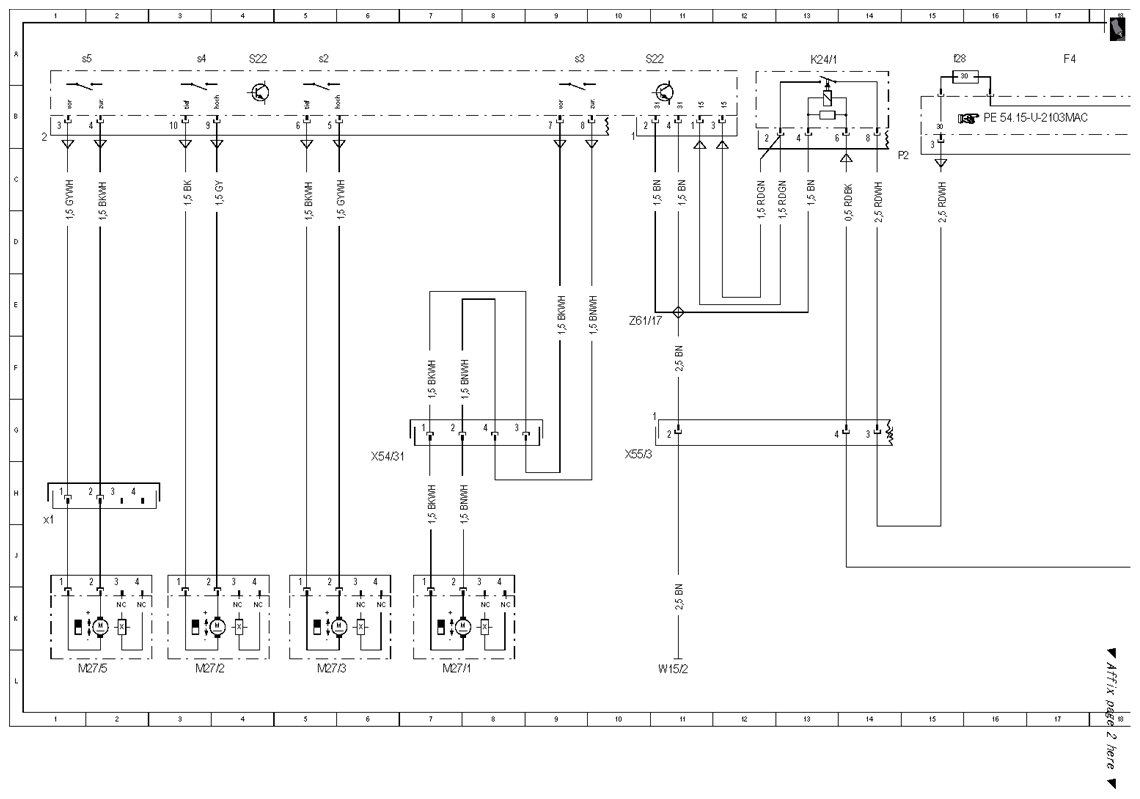

Driver seat adjustment comfort relay |
13 A |
| K24/2 |

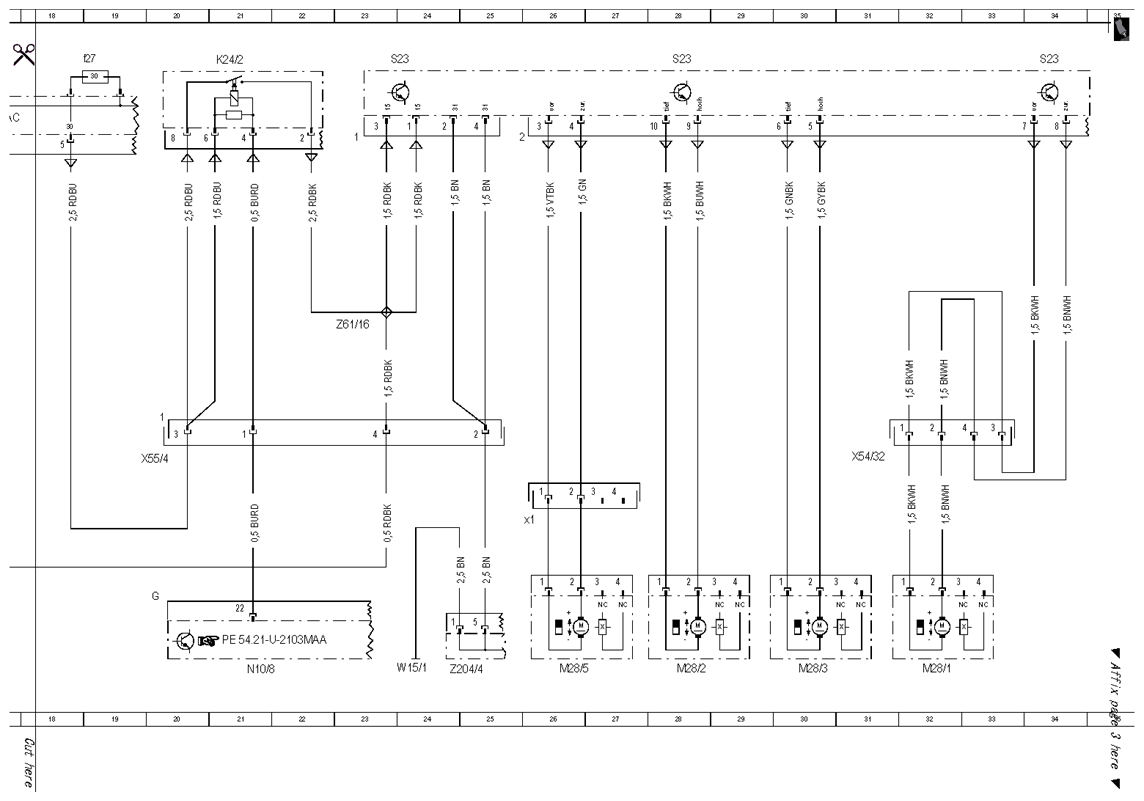

Front passenger seat adjustment comfort relay |
21 A |
| M27/1 |
Seat fore/aft adjustment motor, driver |
7 L |
| M27/2 |
Rear seat height adjustment motor, driver |
3 L |
| M27/3 |
Front seat height adjustment motor, driver |
5 L |
| M27/5 |
Backrest angle adjustment motor, driver |
1 L |
| M27/5x1 |
Driver backrest angle adjustment motor connector 1 |
1 J |
| M28/1 |
Seat fore/aft adjustment motor, front passenger |
32 L |
| M28/2 |
Rear seat height adjustment motor, front passenger |
28 L |
| M28/3 |
Front seat height adjustment motor, front passenger |
30 L |
| M28/5 |
Backrest angle adjustment motor, front passenger |
26 L |
| M28/5x1 |
Front passenger backrest angle adjustment motor connector 1 |
25 J |
| N10/8 |
Rear SAM control unit |
21 L |
| S22 |
Driver seat adjustment switch |
4 A |
| S22 |
Driver seat adjustment switch |
10 A |
| S22s2 |
Front seat raise/lower switch |
5 A |
| S22s3 |
Seat fore/aft switch |
9 A |
| S22s4 |
Rear seat raise/lower switch |
3 A |
| S22s5 |
Backrest switch |
1 A |
| S23 |
Front passenger seat adjustment switch |
23 A |
| S23 |
Front passenger seat adjustment switch |
28 A |
| S23 |
Front passenger seat adjustment switch |
34 A |
| W15/1 |
Ground (right footwell) |
23 L |
| W15/2 |
Ground (left footwell) |
11 L |
| X54/31 |
Driver seat external power feed separation point |
6 H |
| X54/32 |
Front passenger seat external power feed separation point |
31 H |
| X55/3 |
Left front seat contacting strip |
10 H |
| X55/4 |
Right front seat contacting strip |
19 H |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
24 L |
| Z61/16 |
Convenience relay circuit 30 connector sleeve |
23 E |
| Z61/17 |
Convenience relay circuit 31 connector sleeve |
10 E |
