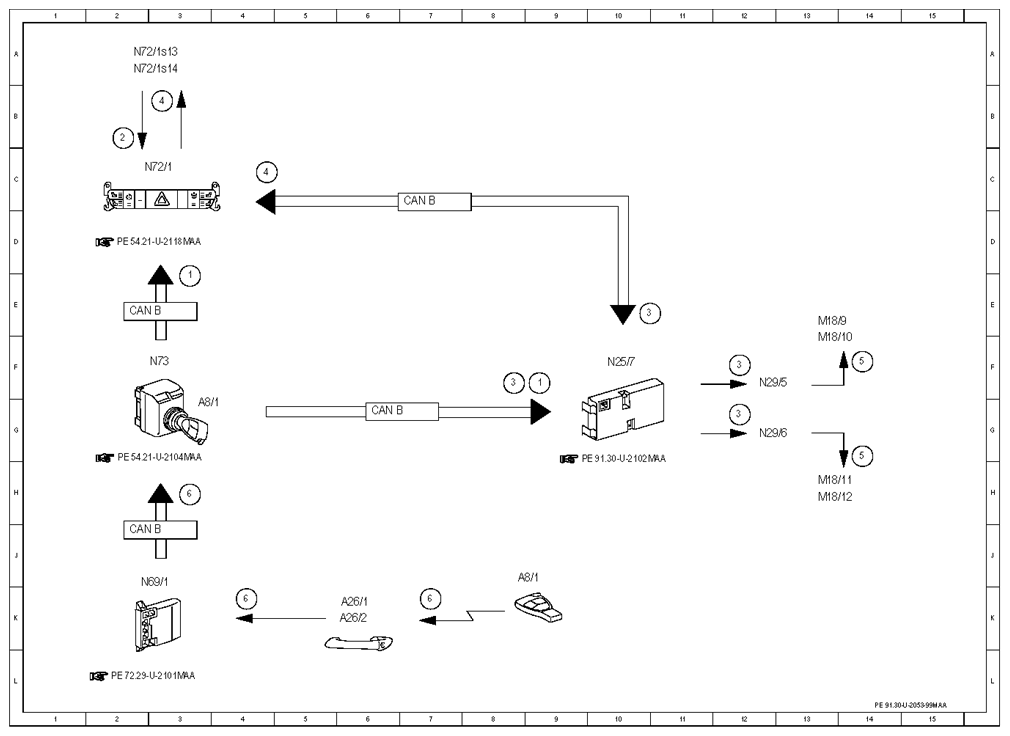

| 1 |
Circuit 15, status |
3 E |
| 1 |
Circuit 15, status |
9 F |
| 2 |
Seat ventilation switch, status |
2 B |
| 3 |
Seat ventilation, request |
8 F |
| 3 |
Seat ventilation, request |
10 E |
| 3 |
Seat ventilation, request |
12 G |
| 3 |
Seat ventilation, request |
12 F |
| 4 |
Seat ventilation status indication, signal |
3 B |
| 4 |
Seat ventilation status indication, signal |
4 C |
| 5 |
Seat ventilation, actuation |
14 H |
| 5 |
Seat ventilation, actuation |
14 F |
| 6 |
Comfort closing/opening, request |
3 H |
| 6 |
Comfort closing/opening, request |
4 K |
| 6 |
Comfort closing/opening, request |
7 K |
| A26/1 |
Left front IR receiver |
6 K |
| A26/2 |
Right front IR receiver |
6 K |
| A8/1 |
Transmitter key |
3 G |
| A8/1 |
Transmitter key |
8 J |
| CAN B |
Interior CAN |
2 J |
| CAN B |
Interior CAN |
2 E |
| CAN B |
Interior CAN |
6 G |
| CAN B |
Interior CAN |
7 D |
| M18/10 |
Left front seat backrest ventilation motor group |
13 F |
| M18/11 |
Right front seat cushion ventilation motor group |
13 H |
| M18/12 |
Right front seat backrest ventilation motor group |
13 H |
| M18/9 |
Left front seat cushion ventilation motor group |
13 E |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
10 F |
| N29/5 |
Left front seat ventilation blower regulator |
12 F |
| N29/6 |
Right front seat ventilation blower regulator |
12 G |
| N69/1 |
Left front door control module |
2 K |
| N72/1 |
Upper control panel control module |
2 C |
| N72/1s13 |
Left front seat ventilation switch |
2 A |
| N72/1s14 |
Right front seat ventilation switch |
2 A |
| N73 |
EIS [EZS] control unit |
2 F |
