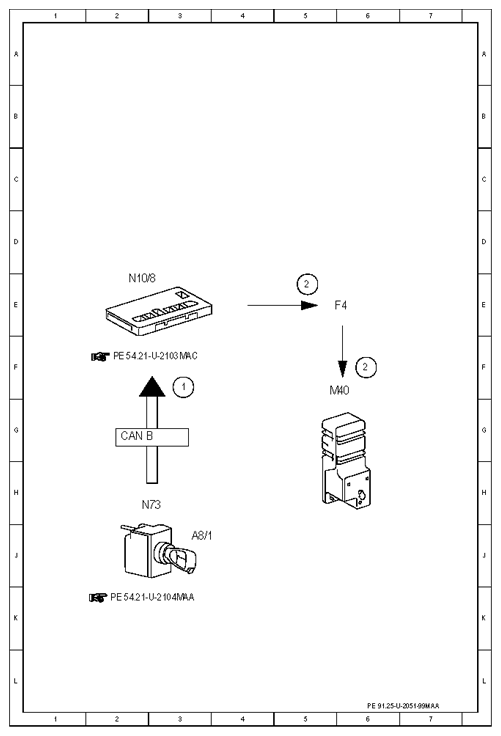

Electrical function schematic for multicontour seat - PE91.25-U-2051-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 3 F |
| 2 | Power supply, status ON | 5 E |
| 2 | Power supply, status ON | 6 F |
| A8/1 | Transmitter key | 3 J |
| CAN B | Interior CAN | 2 G |
| F4 | Load compartment fuse and relay box | 5 E |
| M40 | Multicontour seat pneumatic pump | 5 G |
| N10/8 | Rear SAM control module | 2 E |
| N73 | EIS [EZS] control unit | 2 H |
