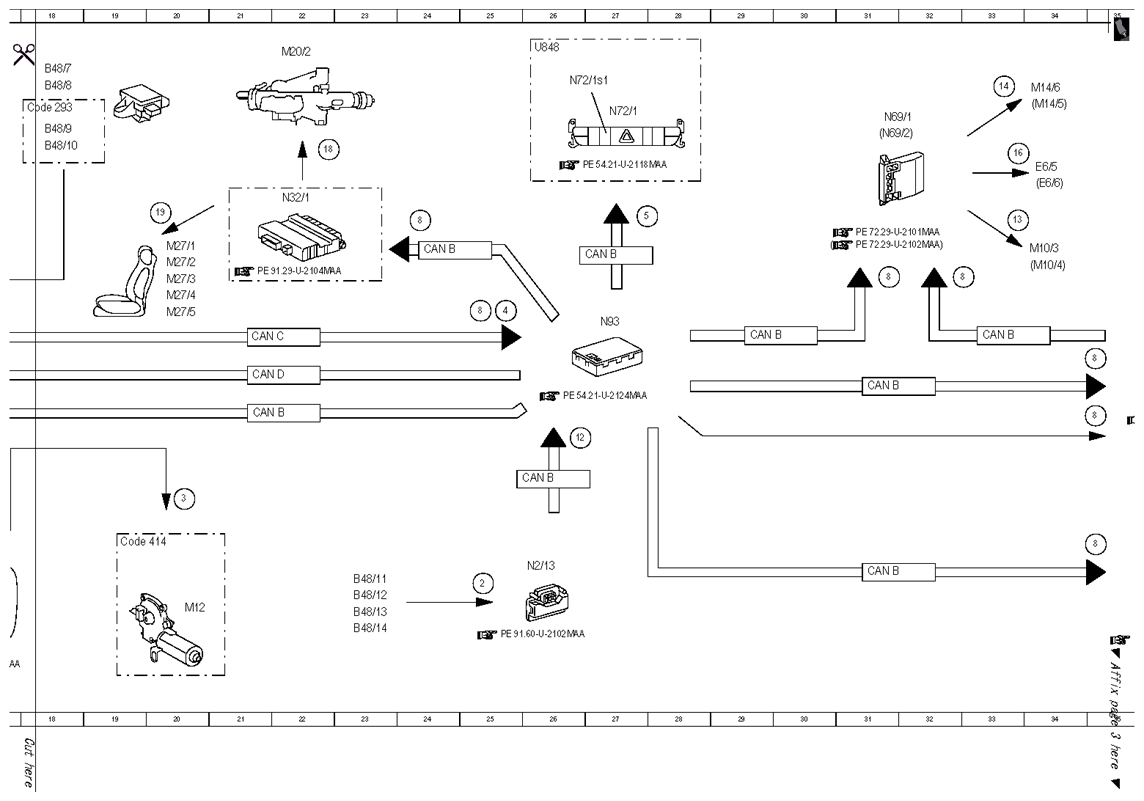

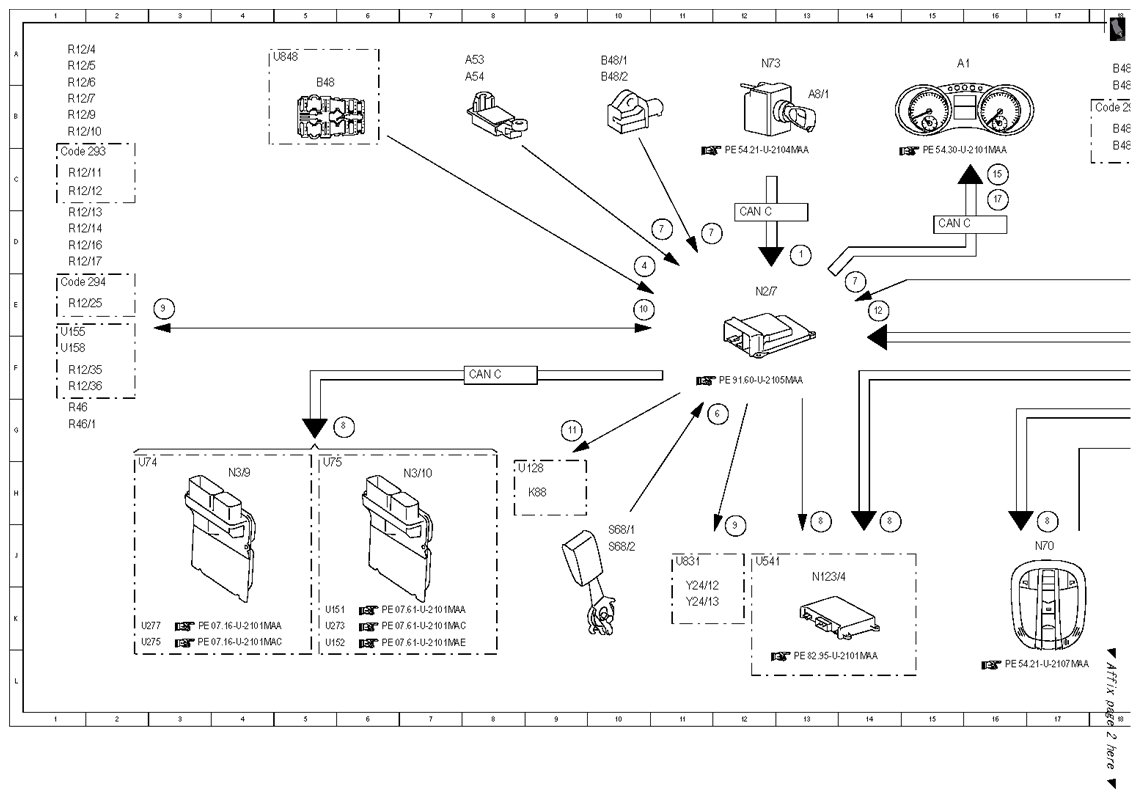

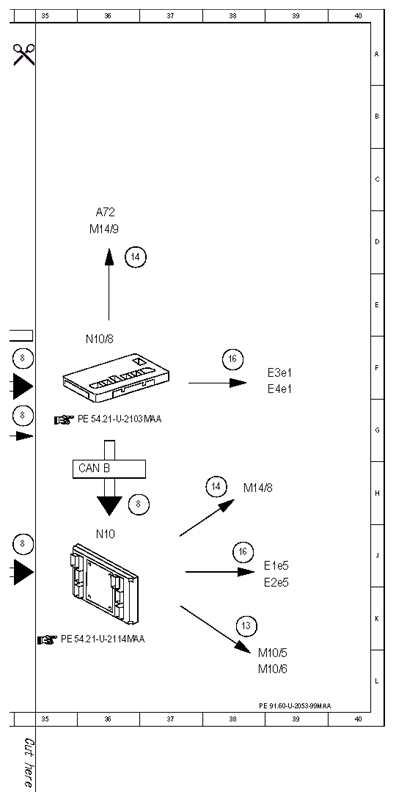

| 1 |
Circuit 15, status |
13 D |
| 10 |
Restraint equipment, status |
10 E |
| 11 |
Pyrofuse, actuation |
9 G |
| 12 |
Front passenger seat occupation, status |
26 G |
| 13 |
Power window motor, actuation |
33 D |
| 13 |
Power window motor, actuation |
38 K |
| 14 |
CL [ZV] motor, actuation |
33 B |
| 14 |
CL [ZV] motor, actuation |
36 D |
| 14 |
CL [ZV] motor, actuation |
38 H |
| 15 |
Hazard warning flasher, request |
16 C |
| 16 |
Turn signal lamp, actuation |
33 C |
| 16 |
Turn signal lamp, actuation |
38 F |
| 16 |
Turn signal lamp, actuation |
38 J |
| 17 |
Supplemental restraint system (SRS) messages, request |
16 C |
| 18 |
Steering column motor, actuation |
22 C |
| 19 |
Seat adjustment motors, actuation |
20 D |
| 2 |
WSS sensor, signal |
25 K |
| 3 |
Tilting/sliding roof motor, actuation |
20 H |
| 4 |
Front passenger seat occupation, status |
10 E |
| 4 |
Front passenger seat occupation, status |
25 E |
| 5 |
Automatic child seat recognition airbag OFF indicator lamp, actuation |
27 D |
| 6 |
Seat belt buckle and seat belt reminder warning switch, status |
11 G |
| 7 |
Impact detection, signal |
11 D |
| 7 |
Impact detection, signal |
14 E |
| 8 |
Crash, signal |
6 G |
| 8 |
Crash, signal |
13 J |
| 8 |
Crash, signal |
14 J |
| 8 |
Crash, signal |
17 J |
| 8 |
Crash, signal |
24 D |
| 8 |
Crash, signal |
25 E |
| 8 |
Crash, signal |
31 E |
| 8 |
Crash, signal |
32 E |
| 8 |
Crash, signal |
35 G |
| 8 |
Crash, signal |
35 F |
| 8 |
Crash, signal |
35 J |
| 8 |
Crash, signal |
36 H |
| 9 |
Restraint equipment, actuation |
3 E |
| 9 |
Restraint equipment, actuation |
12 J |
| A1 |
Instrument cluster |
15 A |
| A53 |
Left side airbag sensor |
8 A |
| A54 |
Right side airbag sensor |
8 B |
| A72 |
Rear door locking unit |
36 D |
| A8/1 |
Transmitter key |
13 B |
| B48 |
Passenger seat occupied and child seat recognition sensor |
5 B |
| B48/1 |
Driver-side frontal acceleration sensor |
10 A |
| B48/10 |
Rear door pressure sensor, passenger-side |
18 C |
| B48/11 |
Sensor, WSS (Weight Sensing System), left front |
23 K |
| B48/12 |
Sensor, WSS (Weight Sensing System), right front |
23 K |
| B48/13 |
Sensor, WSS (Weight Sensing System), left rear |
23 K |
| B48/14 |
Sensor, WSS (Weight Sensing System), right rear |
23 K |
| B48/2 |
Passenger-side frontal acceleration sensor |
10 B |
| B48/7 |
Driver door pressure sensor |
18 A |
| B48/8 |
Front passenger door pressure sensor |
18 B |
| B48/9 |
Rear door pressure sensor, driver-side |
18 B |
| CAN B |
Interior CAN |
21 G |
| CAN B |
Interior CAN |
24 D |
| CAN B |
Interior CAN |
25 H |
| CAN B |
Interior CAN |
26 D |
| CAN B |
Interior CAN |
29 F |
| CAN B |
Interior CAN |
31 J |
| CAN B |
Interior CAN |
31 F |
| CAN B |
Interior CAN |
33 F |
| CAN B |
Interior CAN |
35 H |
| CAN C |
Engine compartment CAN |
8 F |
| CAN C |
Engine compartment CAN |
12 D |
| CAN C |
Engine compartment CAN |
15 D |
| CAN C |
Engine compartment CAN |
21 F |
| CAN D |
Diagnostic CAN |
21 F |
| Code 293 |
Left and right rear sidebag |
1 C |
| Code 293 |
Left and right rear sidebag |
18 B |
| Code 294 |
Kneebag |
1 E |
| Code 414 |
Power glass tilting/sliding sunroof |
19 J |
| E1e5 |
Left turn signal lamp |
38 J |
| E2e5 |
Right turn signal lamp |
38 K |
| E3e1 |
Left turn signal lamp |
39 F |
| E4e1 |
Right turn signal lamp |
39 G |
| E6/5 |
Left exterior mirror turn signal lamp |
34 C |
| E6/6 |
Right exterior mirror turn signal lamp |
34 C |
| K88 |
Pyrotechnical separator |
9 H |
| M10/3 |
Left front power window motor |
34 D |
| M10/4 |
Right front power window motor |
34 E |
| M10/5 |
Left rear power window motor |
38 L |
| M10/6 |
Right rear power window motor |
38 L |
| M12 |
Tilting/sliding roof (SR [SHD]) drive unit |
20 K |
| M14/5 |
Right front door CL motor |
34 B |
| M14/6 |
Driver door CL motor |
34 B |
| M14/8 |
Left rear door CL motor |
38 H |
| M14/9 |
Right rear door CL motor |
36 D |
| M20/2 |
Steering column raise/lower motor |
22 A |
| M27/1 |
Seat fore/aft adjustment motor, driver |
20 D |
| M27/2 |
Rear seat height adjustment motor, driver |
20 D |
| M27/3 |
Front seat height adjustment motor, driver |
20 E |
| M27/4 |
Head restraint motor, driver |
20 E |
| M27/5 |
Backrest angle adjustment motor, driver |
20 E |
| N10 |
Front SAM control unit |
36 J |
| N10/8 |
Rear SAM control module |
36 F |
| N123/4 |
Emergency call system control unit |
13 J |
| N2/13 |
WSS control unit (Weight Sensing System) |
26 J |
| N2/7 |
Restraint systems control module |
12 E |
| N3/10 |
ME-SFI [ME] control module |
7 H |
| N3/9 |
CDI control module |
4 H |
| N32/1 |
Driver front seat adjustment control module with memory |
22 C |
| N69/1 |
Left front door control module |
31 B |
| N69/2 |
Right front door control module |
31 B |
| N70 |
Overhead control panel control module |
17 J |
| N72/1 |
Upper control panel control module |
27 B |
| N72/1s1 |
ESP OFF switch |
26 B |
| N73 |
EIS [EZS] control unit |
12 A |
| N93 |
Central gateway control module |
27 E |
| R12/10 |
Right side airbag ignition squib |
1 B |
| R12/11 |
Left 2nd row side airbag ignition squib |
1 C |
| R12/12 |
Right 2nd row side airbag ignition squib |
1 C |
| R12/13 |
Driver airbag ignition squib 1 |
1 D |
| R12/14 |
Driver airbag ignition squib 2 |
1 D |
| R12/16 |
Left window airbag squib |
1 D |
| R12/17 |
Right window airbag squib |
1 D |
| R12/25 |
Driver kneebag ignition squib |
1 E |
| R12/35 |
Left 3rd row ETR [GUS] squib |
1 F |
| R12/36 |
Right 3rd row ETR [GUS] squib |
1 F |
| R12/4 |
Front passenger airbag ignition squib 1 |
1 A |
| R12/5 |
Front passenger airbag ignition squib 2 |
1 A |
| R12/6 |
Left 2nd row ETR [GUS] squib |
1 B |
| R12/7 |
Right 2nd row ETR [GUS] squib |
1 B |
| R12/9 |
Driver side airbag squib |
1 B |
| R46 |
Driver buckle ETR squib |
1 G |
| R46/1 |
Front passenger buckle ETR squib |
1 G |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
10 J |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
10 J |
| U128 |
Valid for 164.8 with engine 642 |
8 H |
| U151 |
Valid for engine 113 |
5 K |
| U152 |
Valid for engine 156 |
5 L |
| U155 |
Valid for 164.8 |
1 F |
| U158 |
Valid for 3rd seat row |
1 F |
| U273 |
Valid for engine 272 except 272.973, 273 |
5 K |
| U275 |
Valid for engine 642.8 |
2 L |
| U277 |
Valid for engine 642.9 |
2 K |
| U541 |
Valid for TELE AID emergency call system |
12 J |
| U74 |
Valid for diesel vehicles |
2 H |
| U75 |
Valid for gasoline engines |
5 H |
| U831 |
Valid for crash-active head restraints |
11 J |
| U848 |
Valid for automatic child seat recognition ACSR [AKSE] |
4 A |
| U848 |
Valid for automatic child seat recognition ACSR [AKSE] |
26 A |
| Y24/12 |
Driver NECK-PRO head restraint solenoid |
11 K |
| Y24/13 |
Front passenger NECK-PRO head restraint solenoid |
11 K |
