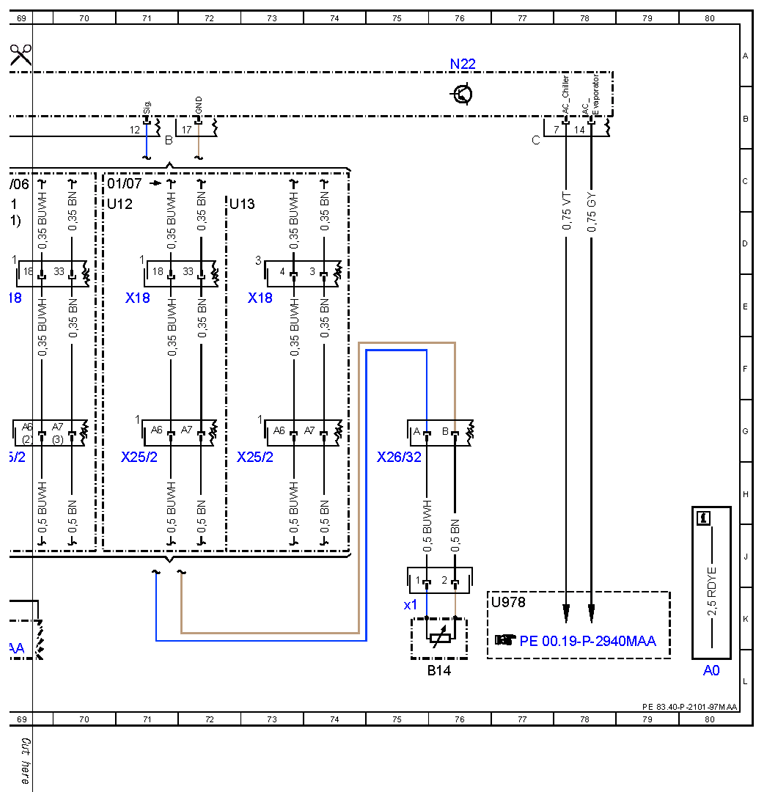

| A0 |
Color code key |
80L |

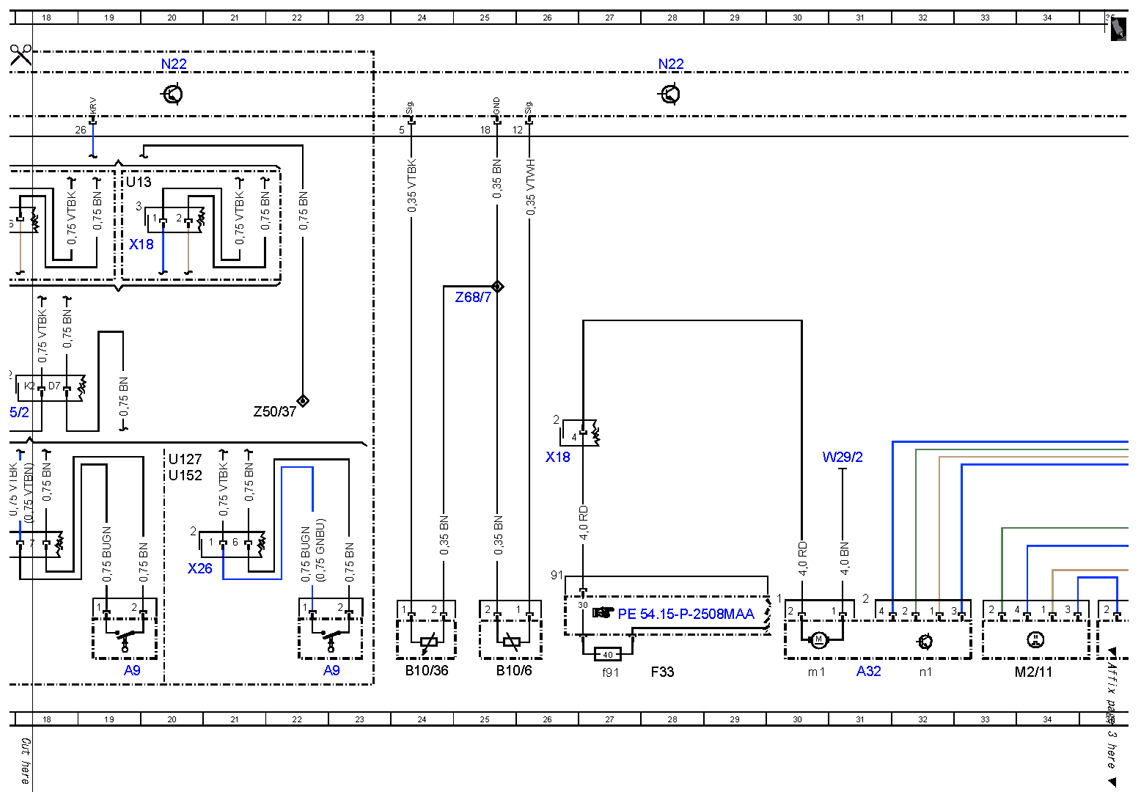

| A32 |
AC air recirculation unit |
31L |
| A32m1 |
Blower motor |
30L |
| A32n1 |
Blower regulator |
32L |

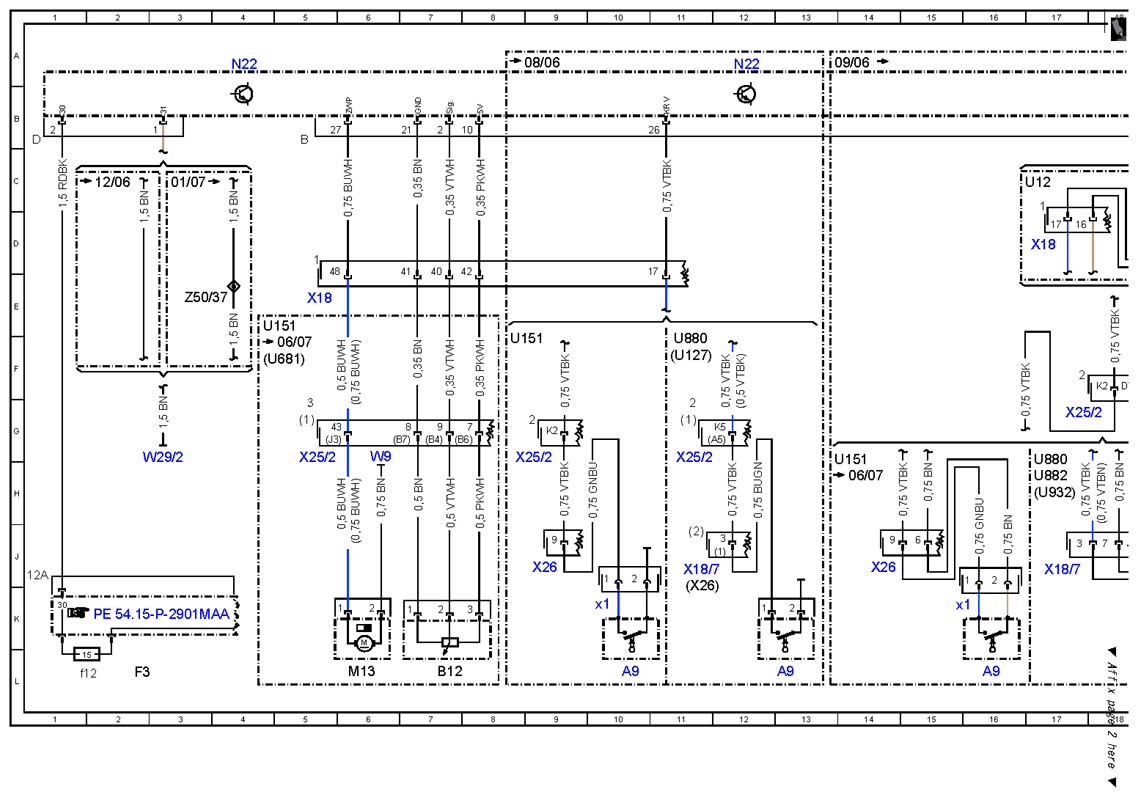

| A9 |
Refrigerant compressor |
13L |
| A9 |
Refrigerant compressor |
10L |
| A9 |
Refrigerant compressor |
19L |
| A9 |
Refrigerant compressor |
16L |
| A9 |
Refrigerant compressor |
22L |
| A9x1 |
Refrigerant compressor connector |
10K |
| A9x1 |
Refrigerant compressor connector |
15K |

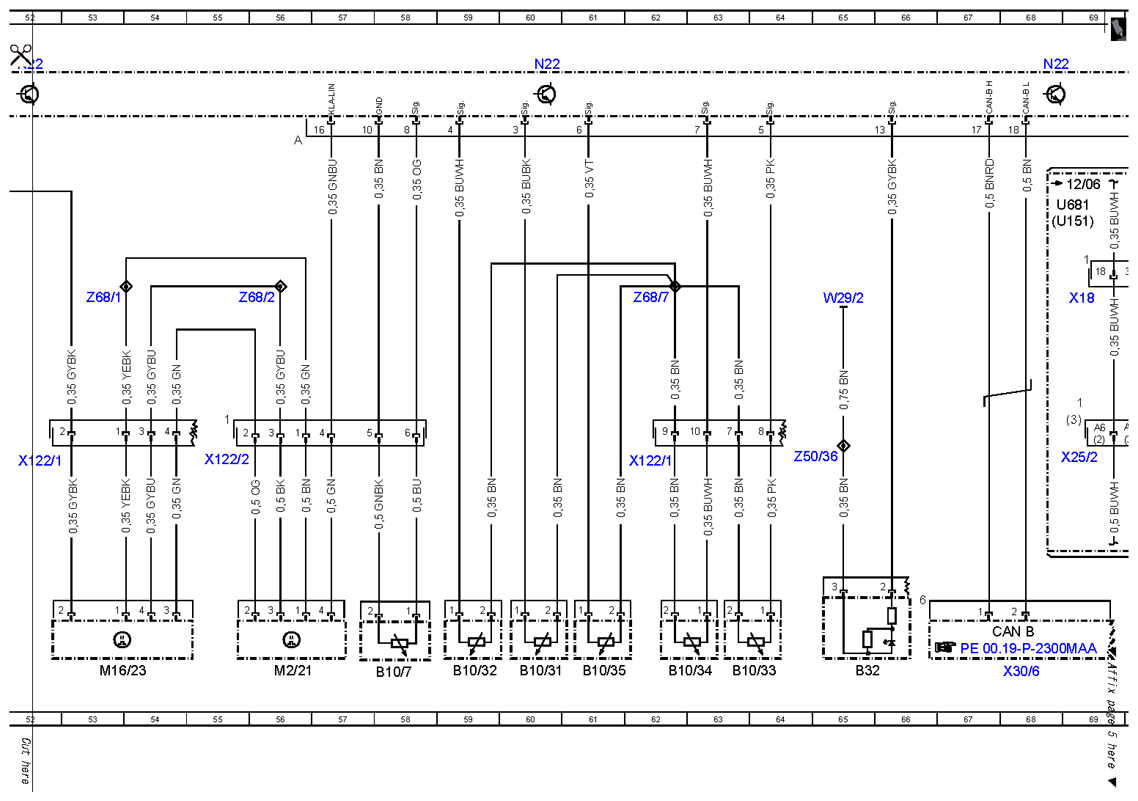

| B10/31 |
Left side outlet temperature sensor |
60L |
| B10/32 |
Right side outlet temperature sensor |
59L |
| B10/33 |
Left center outlet temperature sensor |
63L |
| B10/34 |
Right center outlet temperature sensor |
62L |
| B10/35 |
Left footwell temperature sensor |
61L |
| B10/36 |
Right footwell temperature sensor |
24L |
| B10/6 |
Evaporator temperature sensor |
25L |
| B10/7 |
Center rear interior temperature sensor |
58L |
| B12 |
Refrigerant pressure sensor |
7L |
| B14 |
Outside temperature display temperature sensor |
76L |
| B14x1 |
Outside temperature indicator temperature sensor connector |
75K |
| B32 |
Sun sensor |
65L |
| CAN B |
Interior CAN |
68K |
| F3 |
Cockpit fuse box |
2L |
| F33 |
Battery compartment prefuse box |
28L |
| F33 |
Battery compartment prefuse box |
50L |
| F33f78 |
Fuse 78 |
48K |
| F33f91 |
Fuse 91 |
27L |
| F3f12 |
Fuse 12 |
1L |
| M13 |
Coolant circulation pump |
6L |
| M16/23 |
Left center air flap actuator motor |
53L |

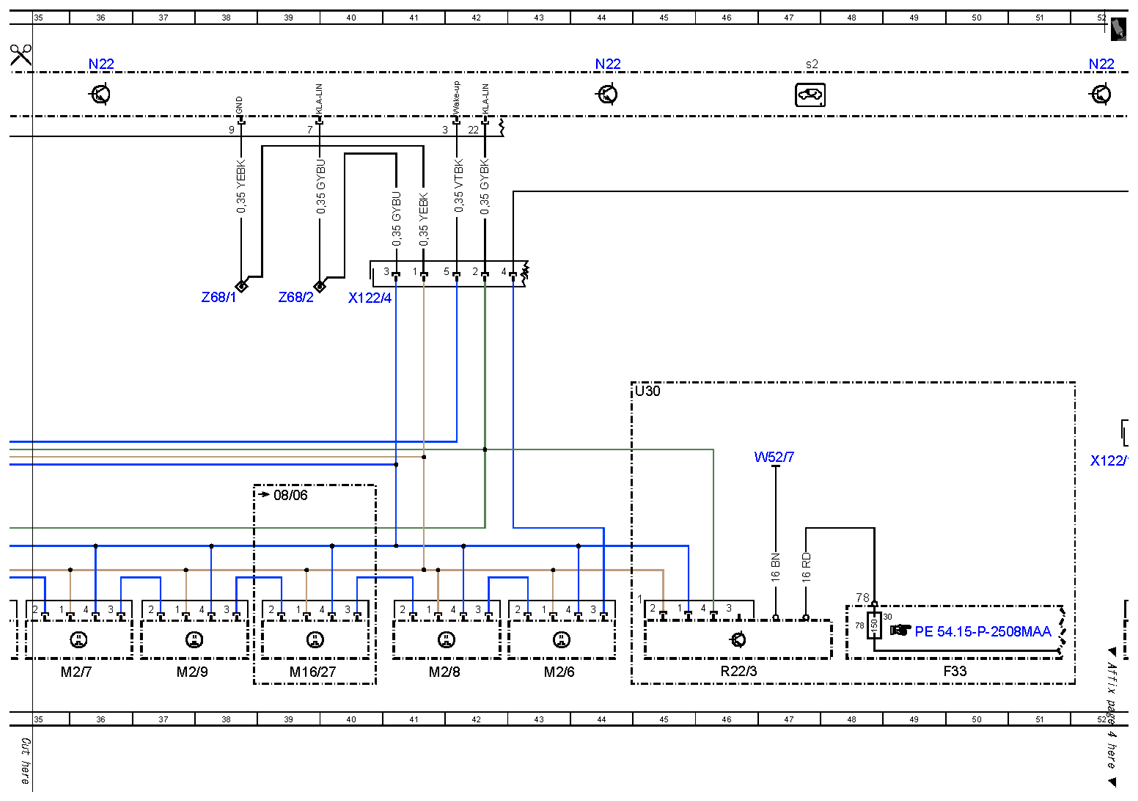

| M16/27 |
Diverter flap actuator motor |
39L |
| M2/11 |
Right footwell flap actuator motor |
34L |
| M2/21 |
Rear air distribution flap actuator motor |
56L |
| M2/6 |
Left blending air flap actuator |
43L |
| M2/7 |
Right blending air flap actuator |
35L |
| M2/8 |
Left defroster vent flap actuator motor |
41L |
| M2/9 |
Right defroster vent flap actuator motor |
37L |
| N22 |
AAC [KLA] control and operating unit |
4A |
| N22 |
AAC [KLA] control and operating unit |
12A |
| N22 |
AAC [KLA] control and operating unit |
28A |
| N22 |
AAC [KLA] control and operating unit |
20A |
| N22 |
AAC [KLA] control and operating unit |
36A |
| N22 |
AAC [KLA] control and operating unit |
44A |
| N22 |
AAC [KLA] control and operating unit |
52A |
| N22 |
AAC [KLA] control and operating unit |
60A |
| N22 |
AAC [KLA] control and operating unit |
68A |
| N22 |
AAC [KLA] control and operating unit |
76A |
| N22s2 |
Air recirculation switch |
47A |
| R22/3 |
PTC heater booster |
46L |
| U12 |
Valid for left-hand drive vehicles |
16C |
| U12 |
Valid for left-hand drive vehicles |
70C |
| U127 |
Valid for engine 272, engine 273 KE |
20H |
| U127 |
Valid for engine 272, engine 273 KE |
11F |
| U13 |
Valid for right-hand drive vehicles |
19C |
| U13 |
Valid for right-hand drive vehicles |
72C |
| U151 |
Valid for engine 113 |
13H |
| U151 |
Valid for engine 113 |
4E |
| U151 |
Valid for engine 113 |
8F |
| U151 |
Valid for engine |
113 |
| U152 |
Valid for engine 156 |
20H |
| U30 |
Valid for heater booster |
45F |
| U681 |
Valid for all except M113 |
68C |
| U681 |
Valid for all except M113 |
5F |
| U880 |
Valid for engine 642 |
17H |
| U880 |
Valid for engine 642 |
11F |
| U882 |
Valid for engine 629 |
17H |
| U932 |
Valid for engine 642 BLUETEC |
17H |
| U978 |
Valid for full hybrid drive |
76K |
| W29/2 |
Ground (right A-pillar) |
3H |
| W29/2 |
Ground (right A-pillar) |
31G |
| W29/2 |
Ground (right A-pillar) |
65E |
| W52/7 |
Ground (PTC heater booster) |
47G |
| W9 |
Ground (left front, at lamp unit) |
6G |
| X122/1 |
Center air outlet connector |
52H |
| X122/1 |
Center air outlet connector |
62H |
| X122/2 |
Booster blower connector (air conditioning) |
55H |
| X122/4 |
Cockpit AC connector |
40E |
| X18 |
Interior/cockpit connector |
26H |
| X18 |
Interior/cockpit connector |
5E |
| X18 |
Interior/cockpit connector |
17D |
| X18 |
Interior/cockpit connector |
20D |
| X18 |
Interior/cockpit connector |
69E |
| X18 |
Interior/cockpit connector |
71E |
| X18 |
Interior/cockpit connector |
73E |
| X18/7 |
Interior/engine connector |
11J |
| X18/7 |
Interior/engine connector |
17J |
| X25/2 |
Engine compartment/interior compartment connector |
5H |
| X25/2 |
Engine compartment/interior compartment connector |
9H |
| X25/2 |
Engine compartment/interior compartment connector |
11H |
| X25/2 |
Engine compartment/interior compartment connector |
17G |
| X25/2 |
Engine compartment/interior compartment connector |
69H |
| X25/2 |
Engine compartment/interior compartment connector |
71H |
| X25/2 |
Engine compartment/interior compartment connector |
73H |
| X26 |
Interior and engine wiring harness connector |
9J |
| X26 |
Interior and engine wiring harness connector |
14J |
| X26 |
Interior and engine wiring harness connector |
20J |
| X26 |
Interior and engine wiring harness connector |
11J |
| X26/32 |
Left front engine compartment/bumper connector |
75H |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
68L |
| Z50/36 |
Circuit 31 (4) cockpit connector sleeve) |
65G |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
22G |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
3E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
38E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
53E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
39E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
56E |
| Z68/7 |
Cockpit AC system sensor ground |
25E |
| Z68/7 |
Cockpit AC system sensor ground |
62E |
