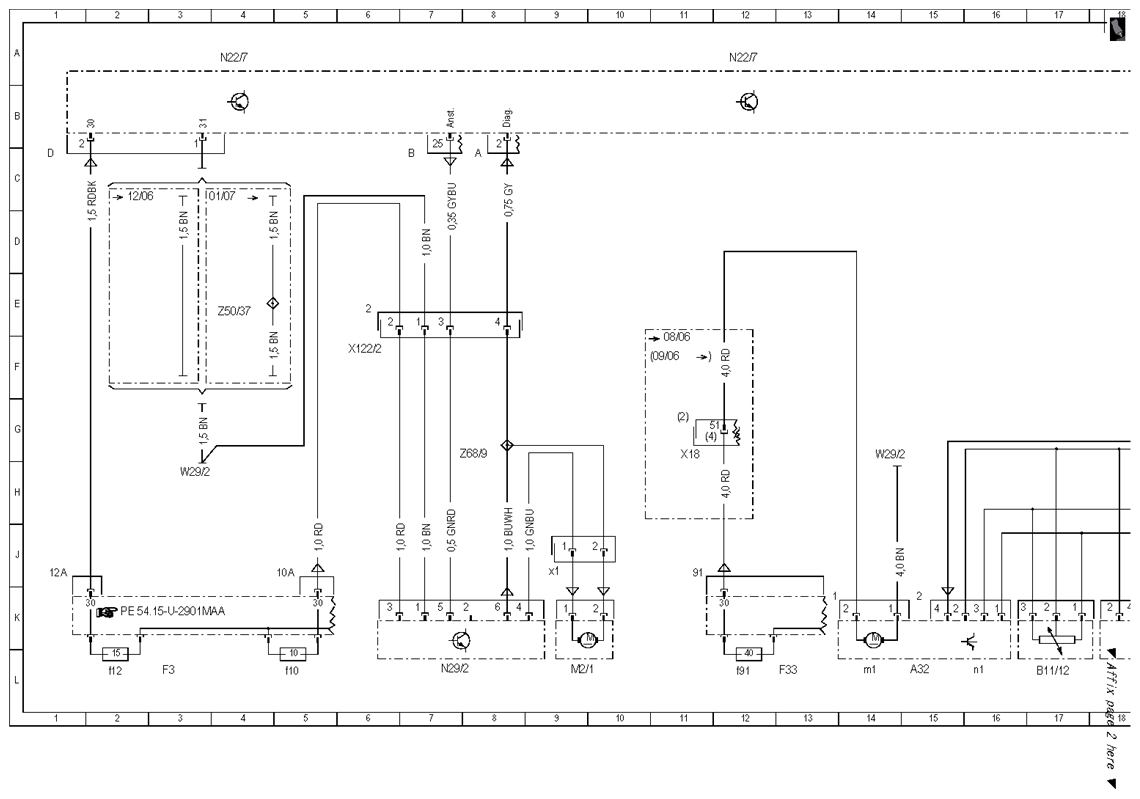

| A32 |
AC air recirculation unit |
15 L |
| A32m1 |
Blower motor |
14 L |
| A32n1 |
Blower regulator |
15 L |

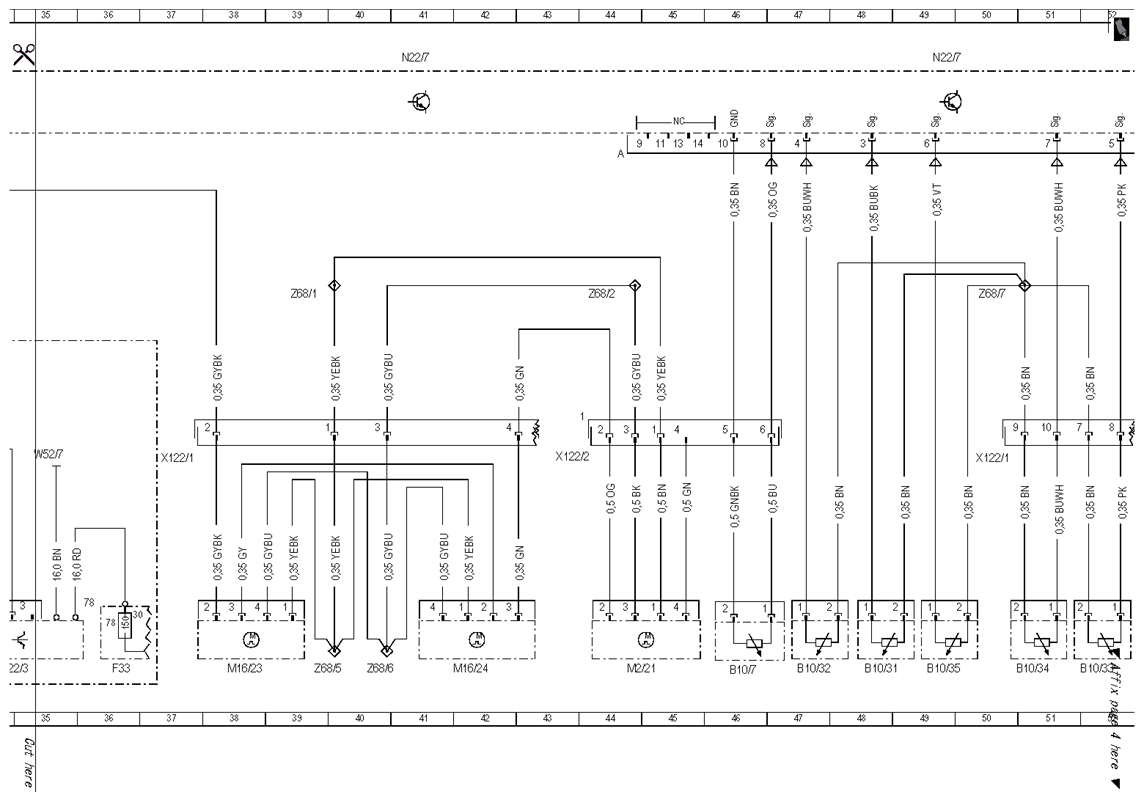

| B10/31 |
Left side outlet temperature sensor |
48 L |
| B10/32 |
Right side outlet temperature sensor |
47 L |
| B10/33 |
Left center outlet temperature sensor |
51 L |
| B10/34 |
Right center outlet temperature sensor |
50 L |
| B10/35 |
Left footwell temperature sensor |
49 L |
| B10/7 |
Center rear interior temperature sensor |
46 L |
| B11/12 |
Dew point sensor |
17 L |

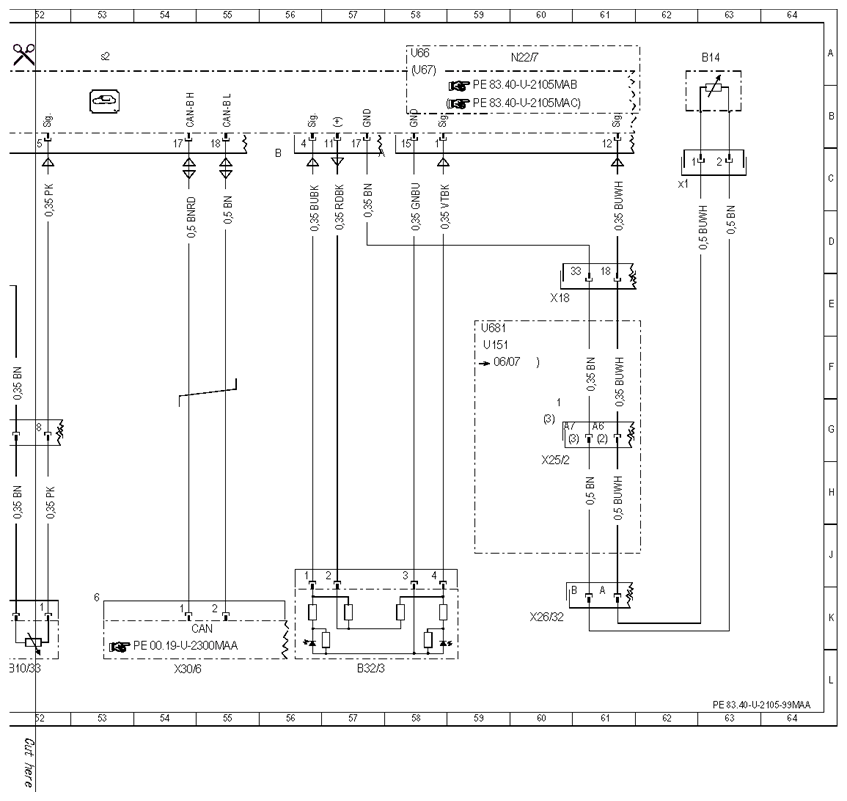

| B14 |
Outside temperature display temperature sensor |
62 A |
| B14x1 |
Outside temperature indicator temperature sensor connector |
62 C |
| B32/3 |
Dual sun sensor |
57 L |
| F3 |
Cockpit fuse box |
3 L |
| F33 |
Battery compartment prefuse box |
13 L |
| F33 |
Battery compartment prefuse box |
36 L |
| F33f78 |
Fuse 78 |
36 K |
| F33f91 |
Fuse 91 |
12 L |
| F3f10 |
Fuse 10 |
5 L |
| F3f12 |
Fuse 12 |
2 L |
| M16/23 |
Left center air flap actuator motor |
38 L |
| M16/24 |
Right center air flap actuator motor |
41 L |

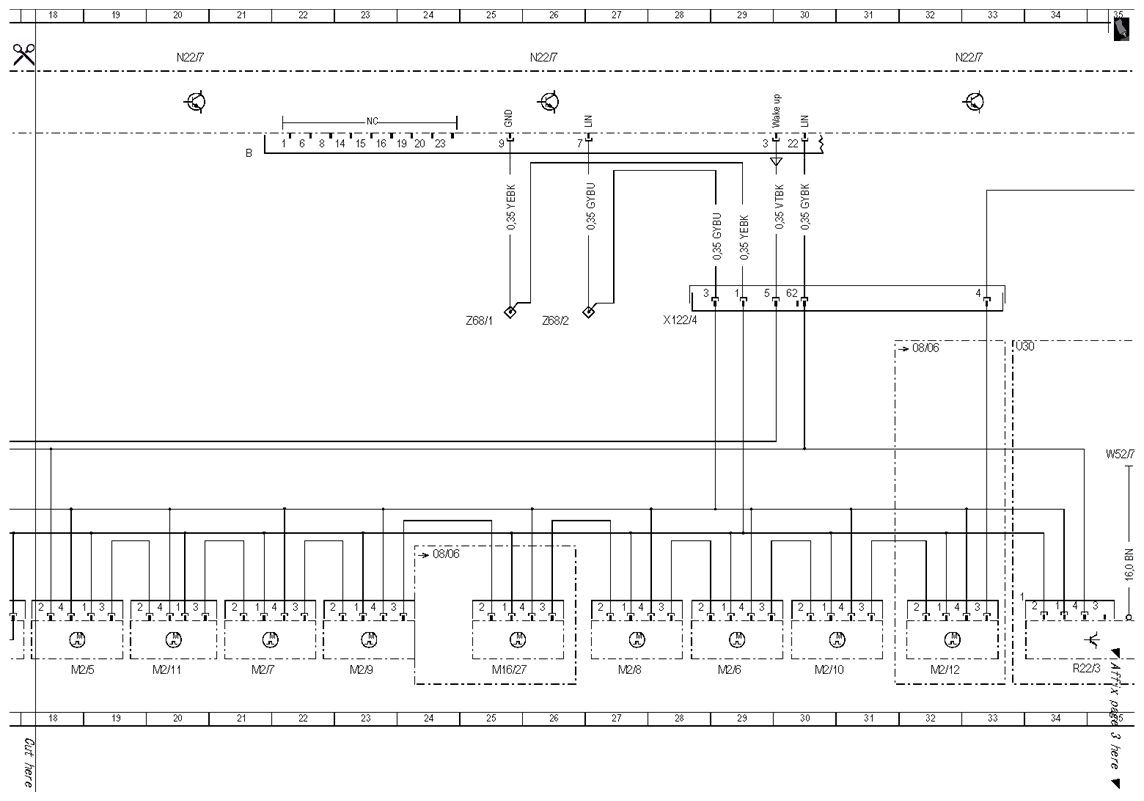

| M16/27 |
Diverter flap actuator motor |
25 L |
| M2/1 |
Booster blower motor |
9 L |
| M2/10 |
Left footwell flap actuator motor |
30 L |
| M2/11 |
Right footwell flap actuator motor |
20 L |
| M2/12 |
Rear shutoff flap actuator motor |
32 L |
| M2/21 |
Rear air distribution flap actuator motor |
44 L |
| M2/5 |
Fresh air/air recirculation flaps actuator motor |
18 L |
| M2/6 |
Left blending air flap actuator |
29 L |
| M2/7 |
Right blending air flap actuator |
21 L |
| M2/8 |
Left defroster vent flap actuator motor |
27 L |
| M2/9 |
Right defroster vent flap actuator motor |
23 L |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
4 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
12 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
20 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
26 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
32 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
41 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
49 A |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
59 A |
| N22/7s2 |
Air recirculation switch |
53 A |
| N29/2 |
Booster blower electronic blower controller |
7 L |
| N29/2x1 |
Rear air conditioning electronic blower regulator connector |
9 J |
| R22/3 |
PTC heater booster |
34 L |
| U151 |
Valid for engine 113 |
59 F |
| U30 |
Valid for heater booster |
33 F |
| U66 |
Valid for rear air conditioning |
58 A |
| U67 |
Not valid for rear air conditioning |
58 A |
| U681 |
Valid for all except M113 |
59 F |
| W29/2 |
Ground (right A-pillar) |
3 H |
| W29/2 |
Ground (right A-pillar) |
14 H |
| W52/7 |
Ground (PTC heater booster) |
35 H |
| X122/1 |
Center air outlet connector |
37 H |
| X122/1 |
Center air outlet connector |
50 H |
| X122/2 |
Booster blower connector (air conditioning) |
6 F |
| X122/2 |
Booster blower connector (air conditioning) |
43 H |
| X122/4 |
Cockpit AC connector |
28 E |
| X18 |
Interior/cockpit connector |
11 H |
| X18 |
Interior/cockpit connector |
60 E |
| X25/2 |
Engine compartment/interior compartment connector |
60 H |
| X26/32 |
Left front engine compartment/bumper connector |
60 K |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
54 L |
| Z50/37 |
Air conditioner compressor ground connector sleeve |
4 E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
25 E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
39 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
26 E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
44 E |
| Z68/5 |
Center ventilator circuit 31 climate control LIN connector sleeve |
39 L |
| Z68/6 |
Center ventilator climate control LIN positive line connector sleeve |
40 L |
| Z68/7 |
Cockpit AC system sensor ground |
50 E |
| Z68/9 |
Rear air conditioning blower regulator diagnosis connector sleeve |
7 H |
