Wiring diagram automatic air conditioning (AAC) control module - PE83.40-U-2101-99MAA

Code: Designation: Position:
A32 AC air recirculation unit 36 L
A32m1 Blower motor 35 L
A32n1 Blower regulator 37 L
A9 Refrigerant compressor 11 L
A9 Refrigerant compressor 14 L
A9 Refrigerant compressor 17 L
A9 Refrigerant compressor 20 L
A9 Refrigerant compressor 24 L
A9 Refrigerant compressor 27 L
A9x1 Refrigerant compressor connector 14 K
A9x1 Refrigerant compressor connector 20 K
B10/31 Left side outlet temperature sensor 62 L
B10/32 Right side outlet temperature sensor 61 L
B10/33 Left center outlet temperature sensor 65 L
B10/34 Right center outlet temperature sensor 64 L
B10/35 Left footwell temperature sensor 63 L
B10/36 Right footwell temperature sensor 28 L
B10/6 Evaporator temperature sensor 30 L
B10/7 Center rear interior temperature sensor 59 L
B12 Refrigerant pressure sensor 8 L
B14 Outside temperature display temperature sensor 75 L
B14x1 Outside temperature indicator temperature sensor connector 75 K
B32 Sun sensor 67 L
CAN B Interior CAN 69 K
F3 Cockpit fuse box 2 L
F33 Battery compartment prefuse box 33 L
F33 Battery compartment prefuse box 53 L
F33f78 Fuse 78 53 K
F33f91 Fuse 91 32 L
F3f12 Fuse 12 1 L
M13 Coolant circulation pump 7 L
M16/23 Left center air flap actuator motor 55 L
M2/10 Left footwell flap actuator motor 46 L
M2/12 Rear shutoff flap actuator motor 48 L
M2/21 Rear air distribution flap actuator motor 58 L
M2/5 Fresh air/air recirculation flaps actuator motor 39 L
M2/6 Left blending air flap actuator 44 L
M2/7 Right blending air flap actuator 41 L
M2/8 Left defroster vent flap actuator motor 42 L
N22 AAC [KLA] control and operating unit 4 A
N22 AAC [KLA] control and operating unit 12 A
N22 AAC [KLA] control and operating unit 20 A
N22 AAC [KLA] control and operating unit 29 A
N22 AAC [KLA] control and operating unit 36 A
N22 AAC [KLA] control and operating unit 44 A
N22 AAC [KLA] control and operating unit 52 A
N22 AAC [KLA] control and operating unit 61 A
N22 AAC [KLA] control and operating unit 68 A
N22 AAC [KLA] control and operating unit 76 A
N22s2 Air recirculation switch 54 A
R22/3 PTC heater booster 51 L
U127 Valid for engine 272, engine 273 KE 24 H
U151 Valid for engine 113 5 E
U151 Valid for engine 113 12 F
U151 Valid for engine 113 18 H
U151 Valid for engine 113 70 F
U152 Valid for engine 156 24 H
U30 Valid for heater booster 50 E
U475 Valid for M 272 9 F
U681 Valid for all except M113 5 F
U681 Valid for all except M113 70 F
U880 Valid for engine 642 15 F
U880 Valid for engine 642 21 H
U932 Valid for engine 642 BLUETEC 21 H
U978 Valid for full hybrid drive 76 K
W29/2 Ground (right A-pillar) 3 H
W29/2 Ground (right A-pillar) 36 H
W29/2 Ground (right A-pillar) 67 E
W52/7 Ground (PTC heater booster) 51 H
W9 Ground (left front, at lamp unit) 7 H
X122/1 Center air outlet connector 54 H
X122/1 Center air outlet connector 63 H
X122/2 Booster blower connector (air conditioning) 57 H
X122/4 Cockpit AC connector 45 E
X18 Interior/cockpit connector 6 E
X18 Interior/cockpit connector 22 E
X18 Interior/cockpit connector 31 H
X18 Interior/cockpit connector 71 E
X18/7 Interior/engine connector 15 J
X18/7 Interior/engine connector 21 J
X25/2 Engine compartment/interior compartment connector 6 H
X25/2 Engine compartment/interior compartment connector 9 H
X25/2 Engine compartment/interior compartment connector 12 H
X25/2 Engine compartment/interior compartment connector 15 H
X25/2 Engine compartment/interior compartment connector 22 G
X25/2 Engine compartment/interior compartment connector 71 H
X26 Interior and engine wiring harness connector 10 J
X26 Interior and engine wiring harness connector 12 J
X26 Interior and engine wiring harness connector 19 J
X26 Interior and engine wiring harness connector 25 J
X26/32 Left front engine compartment/bumper connector 74 H
X30/6 Cockpit voltage distributor (CAN) connector 70 L
Z50/36 Circuit 31 (4) cockpit connector sleeve) 66 H
Z50/37 Air conditioner compressor ground connector sleeve 3 E
Z50/37 Air conditioner compressor ground connector sleeve 25 E
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve 42 E
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve 55 E
Z68/2 Instrument panel climate control LIN positive line connector sleeve 44 E
Z68/2 Instrument panel climate control LIN positive line connector sleeve 57 E
Z68/7 Cockpit AC system sensor ground 29 E
Z68/7 Cockpit AC system sensor ground 64 E

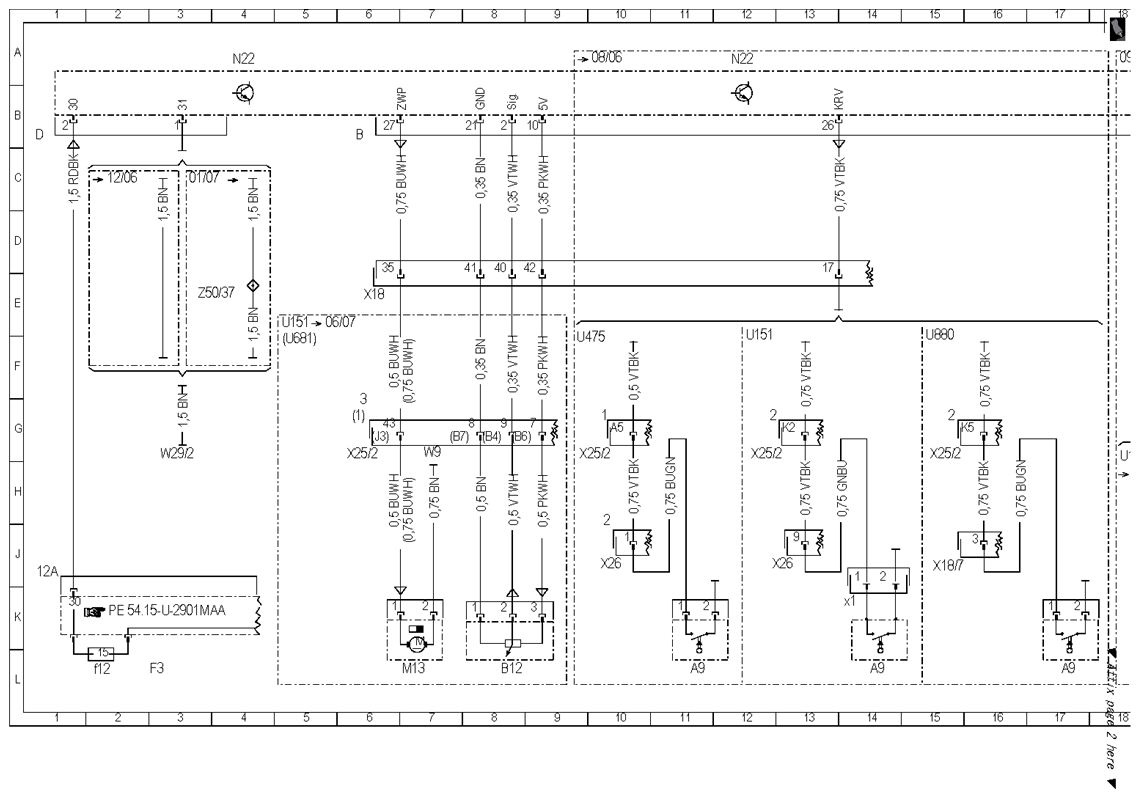

Fig 1: Automatic Air Conditioning Control Module - Wiring Diagram (1 Of 5)
G10119068Courtesy of MERCEDES-BENZ USA

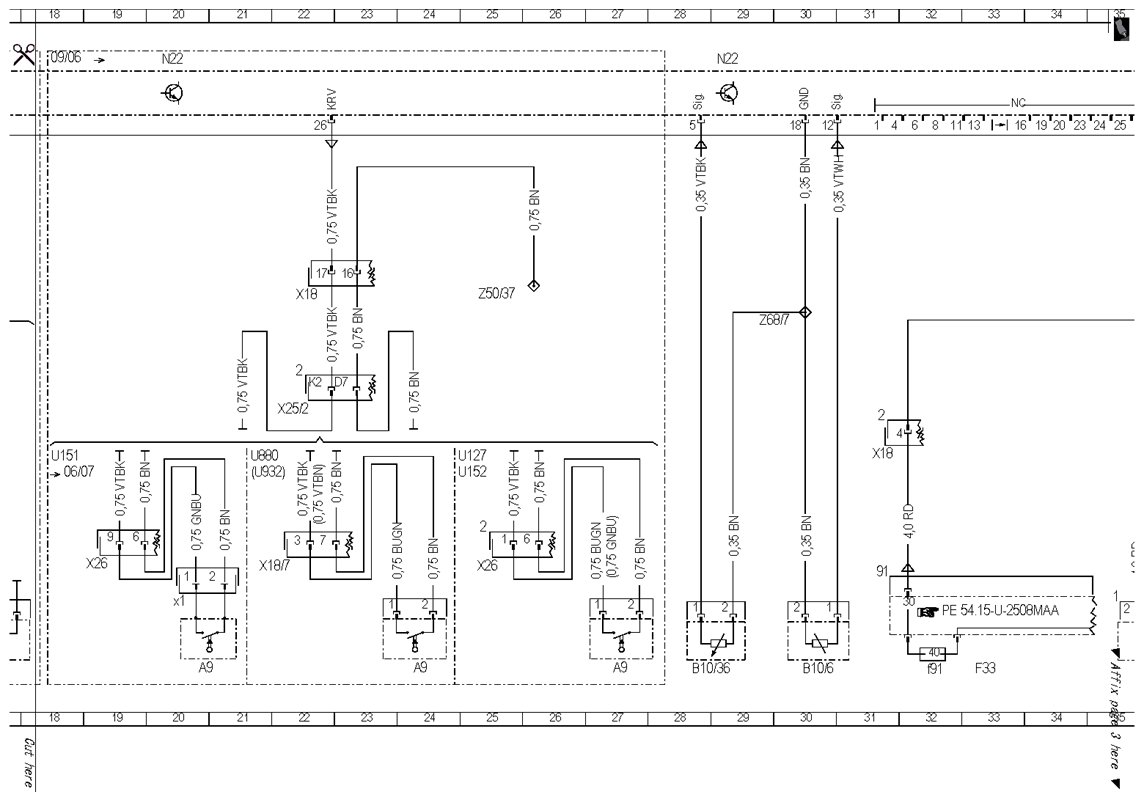

Fig 2: Automatic Air Conditioning Control Module - Wiring Diagram (2 Of 5)
G10119069Courtesy of MERCEDES-BENZ USA

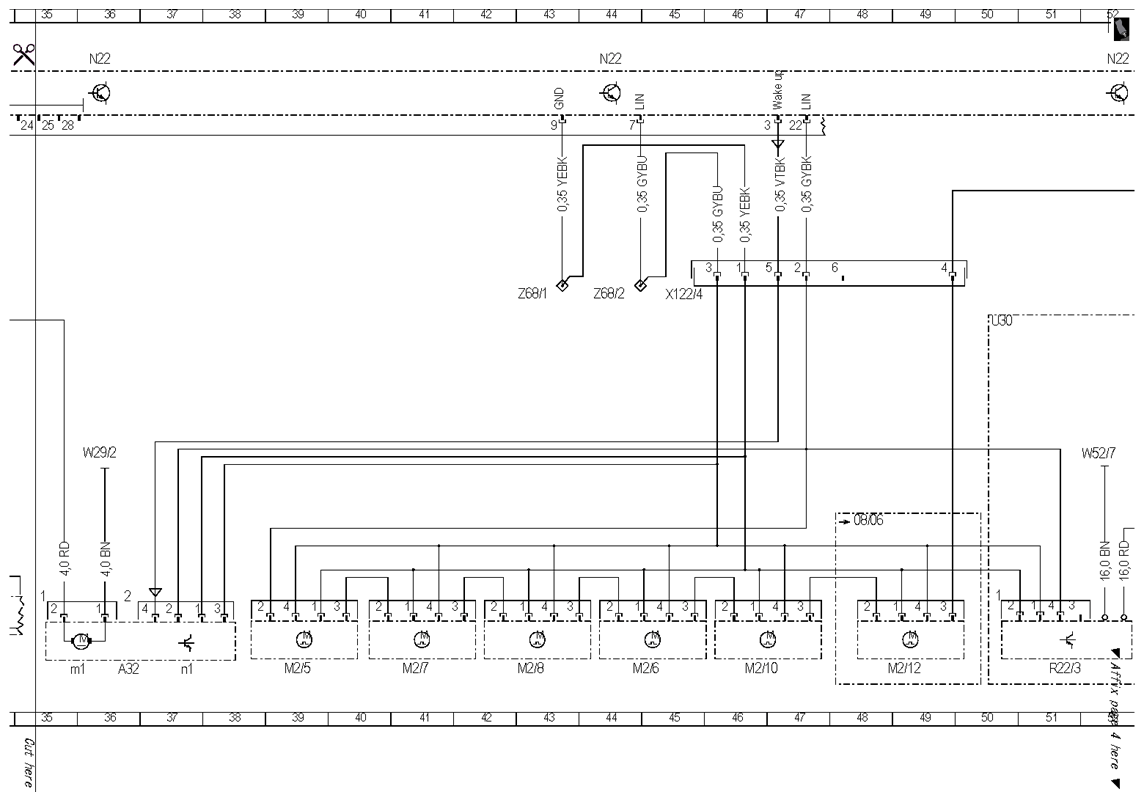

Fig 3: Automatic Air Conditioning Control Module - Wiring Diagram (3 Of 5)
G10119070Courtesy of MERCEDES-BENZ USA

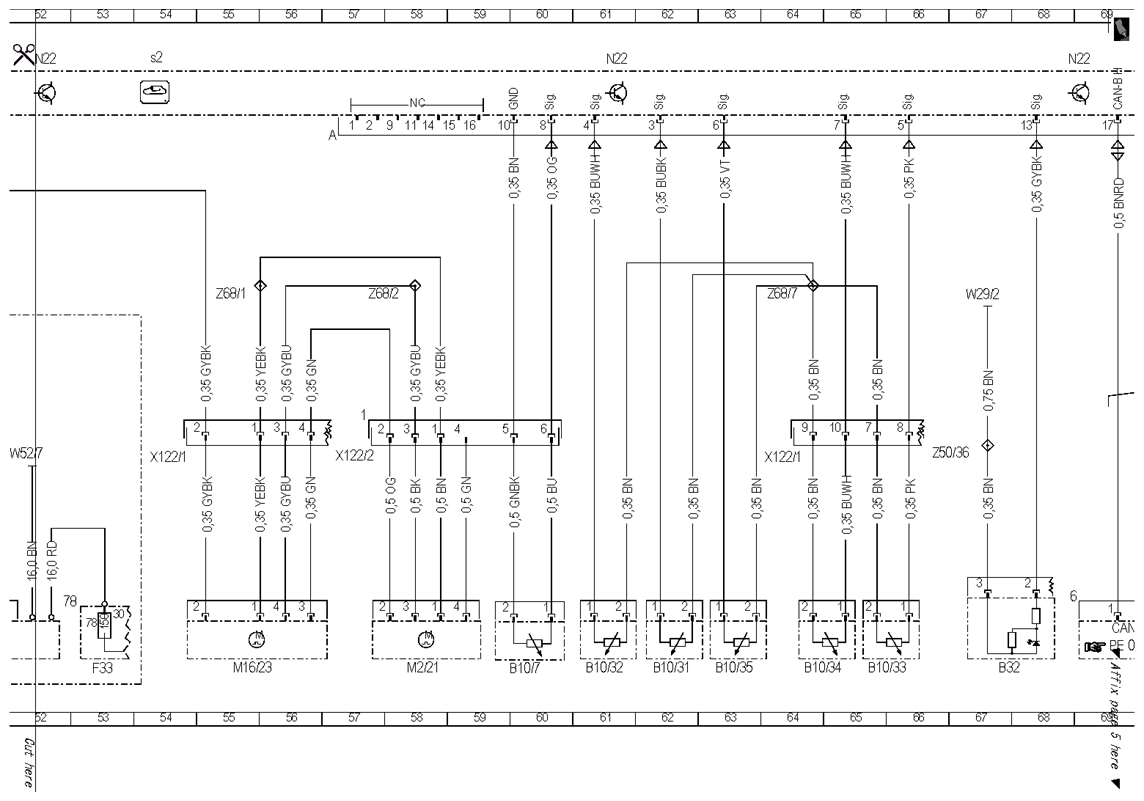

Fig 4: Automatic Air Conditioning Control Module - Wiring Diagram (4 Of 5)
G10119071Courtesy of MERCEDES-BENZ USA

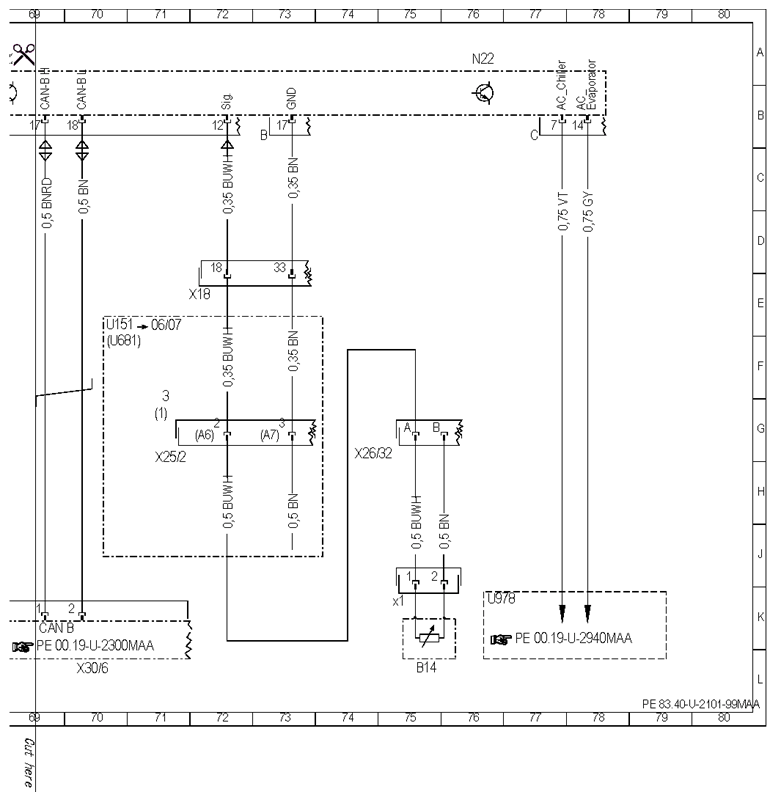

Fig 5: Automatic Air Conditioning Control Module - Wiring Diagram (5 Of 5)
G10119072Courtesy of MERCEDES-BENZ USA
