Wiring diagram of CAN bus - interior compartment - PE00.19-U-2300-99MAB

MODEL 164 Voltage distributor X30/7, Specification 2

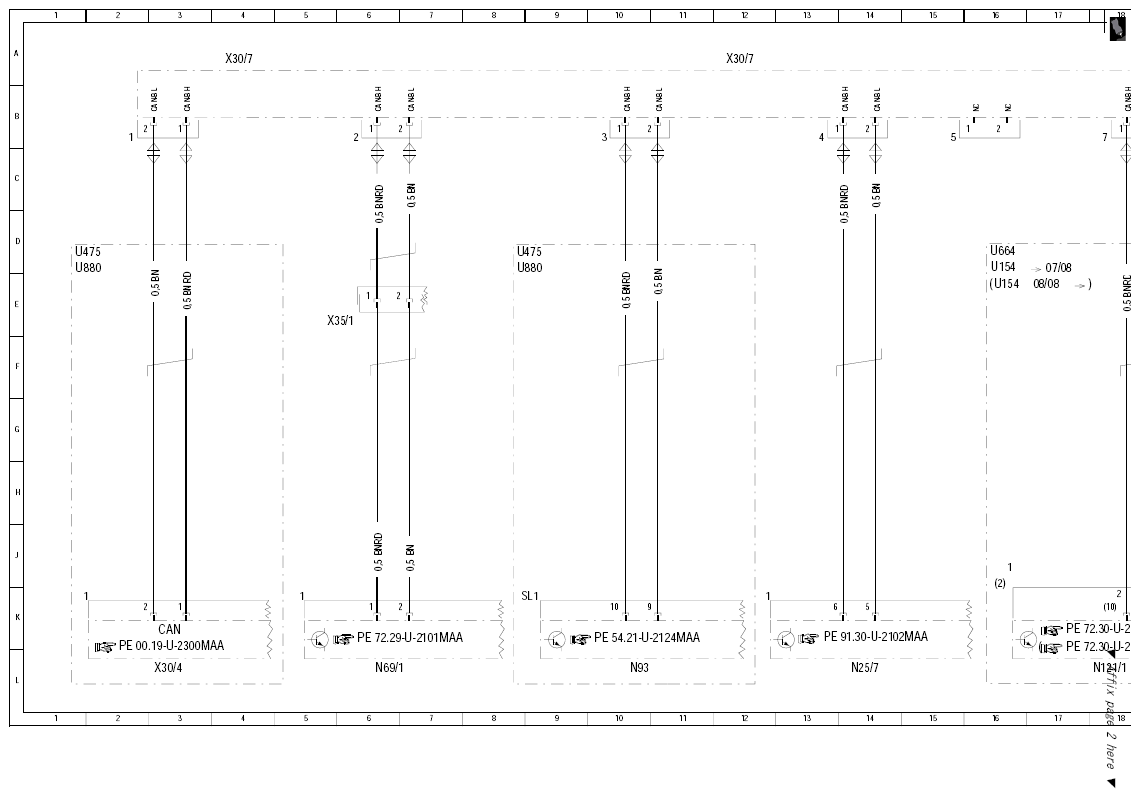

Fig 1: Interior Compartment CAN Bus - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

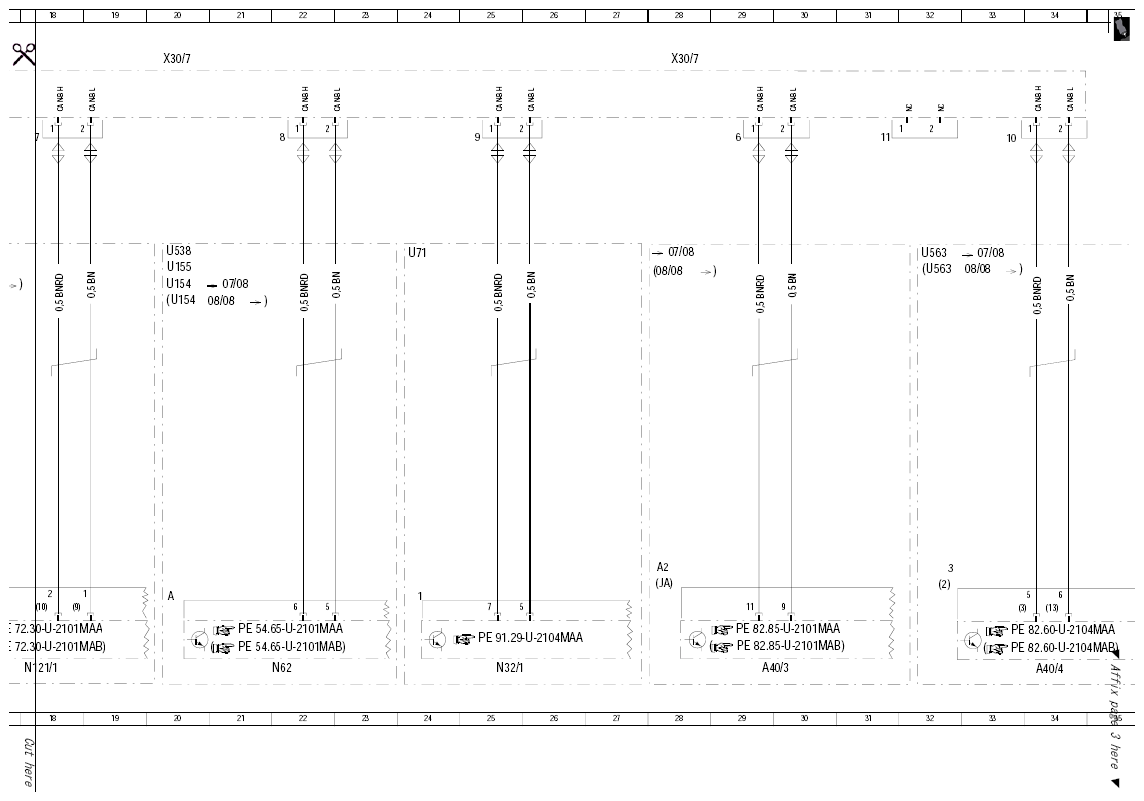

Fig 2: Interior Compartment CAN Bus - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

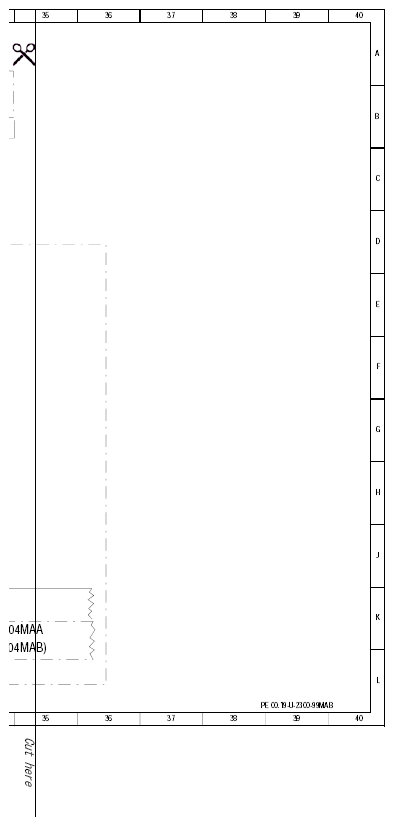

Fig 3: Interior Compartment CAN Bus - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
