Wiring diagram of CAN bus - engine - PE00.19-U-2200-99MAB

MODEL 164.1 with ENGINE 156, 272, 273, 642 as of Model Year 2010 Voltage distributor X30/19 and X30/46

MODEL 164.8 with ENGINE 273, 642 as of Model Year 2010 Voltage distributor X30/19 and X30/46

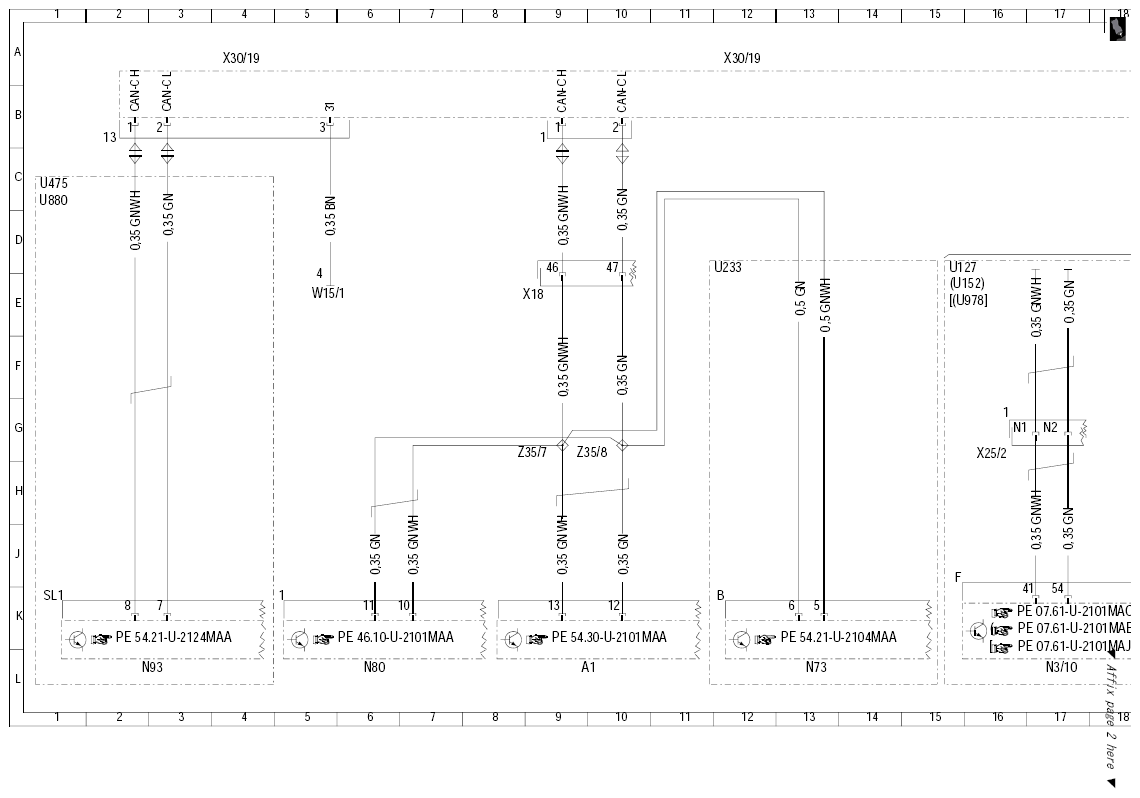

Fig 1: Engine CAN Bus - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

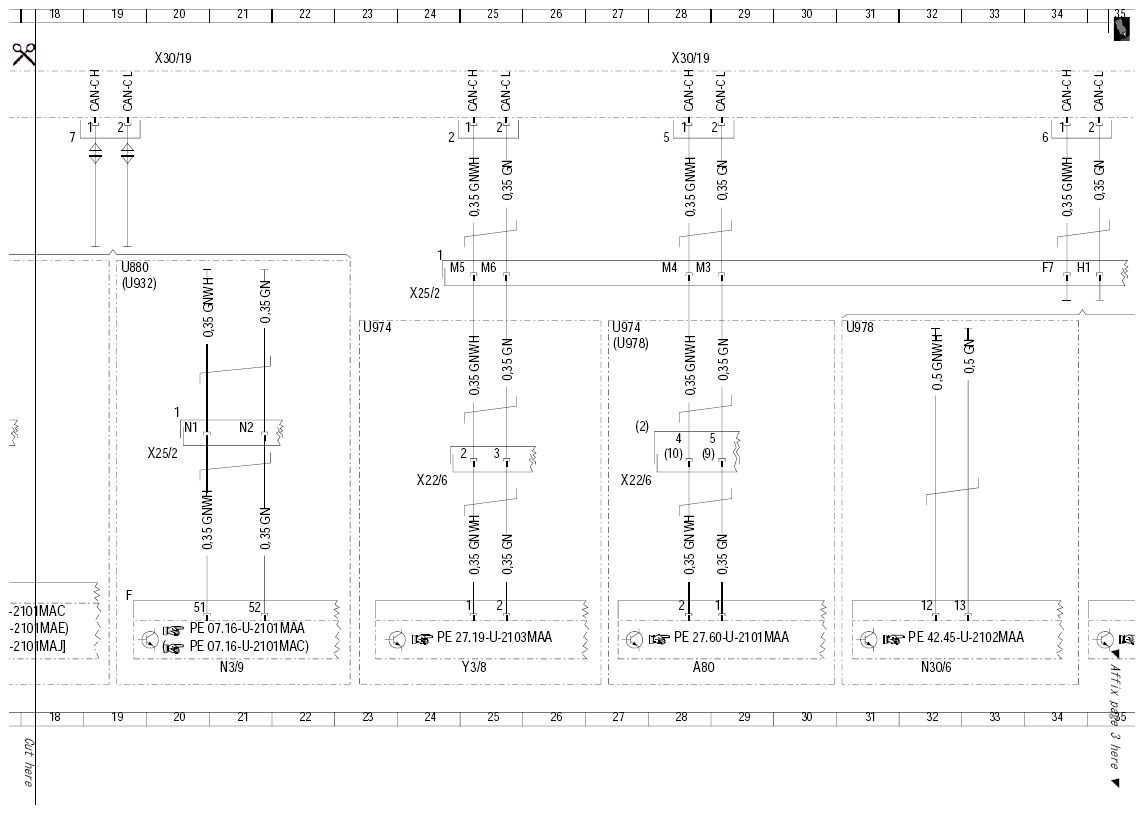

Fig 2: Engine CAN Bus - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

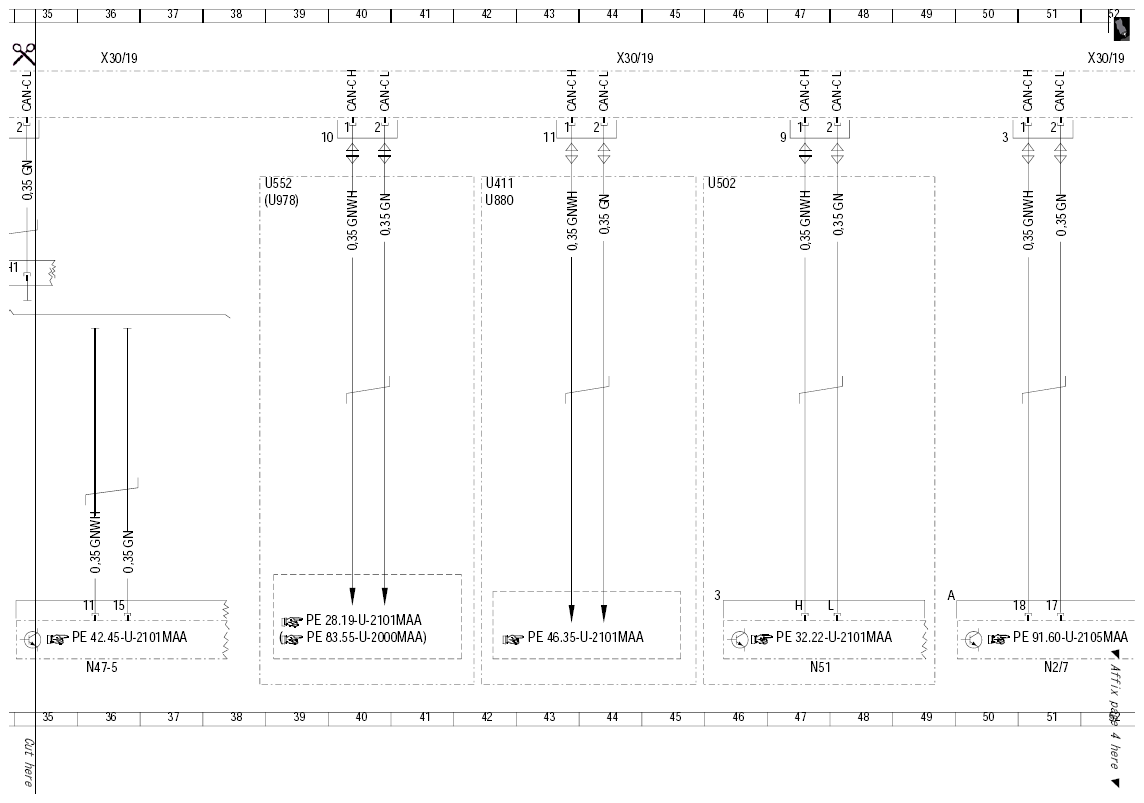

Fig 3: Engine CAN Bus - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

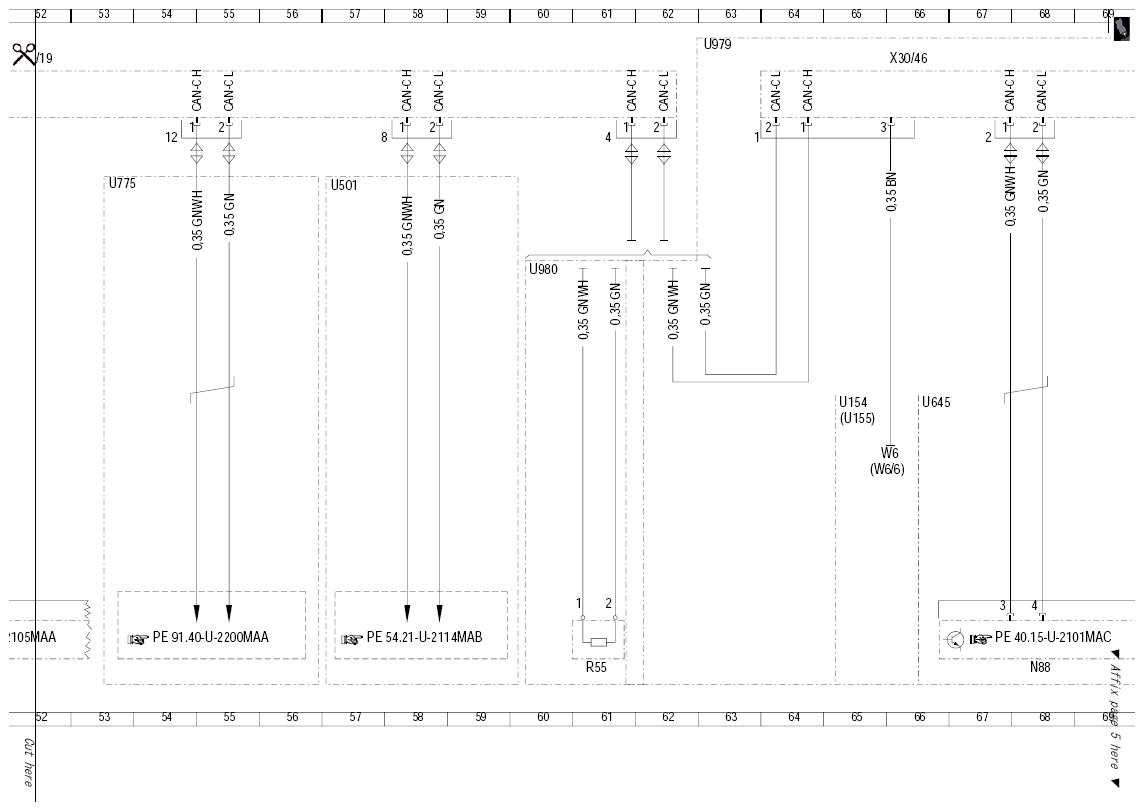

Fig 4: Engine CAN Bus - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

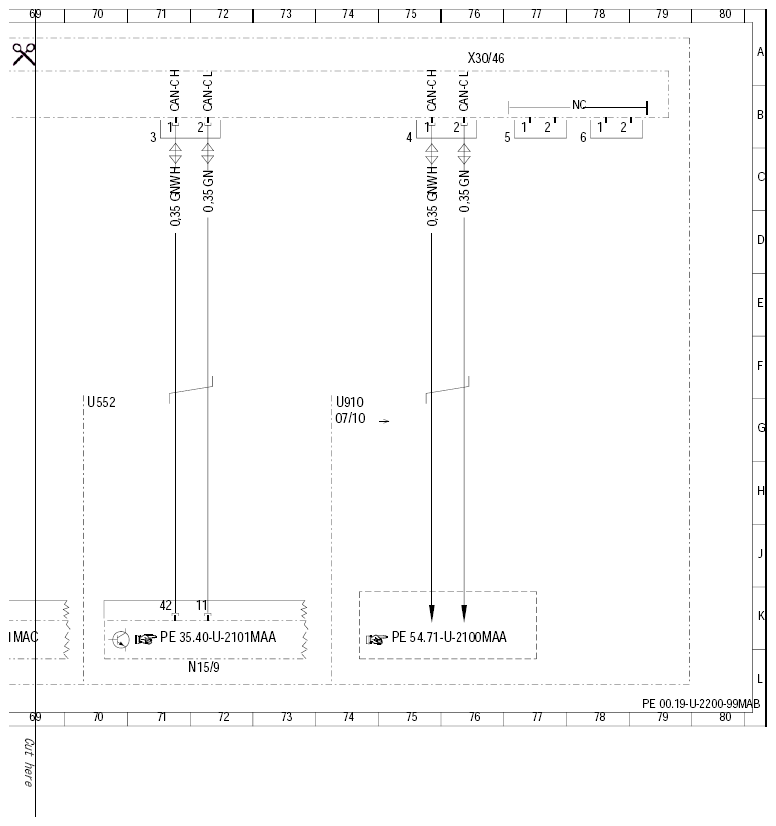

Fig 5: Engine CAN Bus - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
