Wiring diagram of CAN bus - engine - PE00.19-U-2200-99MAA

MODEL 164 with ENGINE 113, 156, 272, 273, 642 up to Model Year 2010 Voltage distributor X30/19

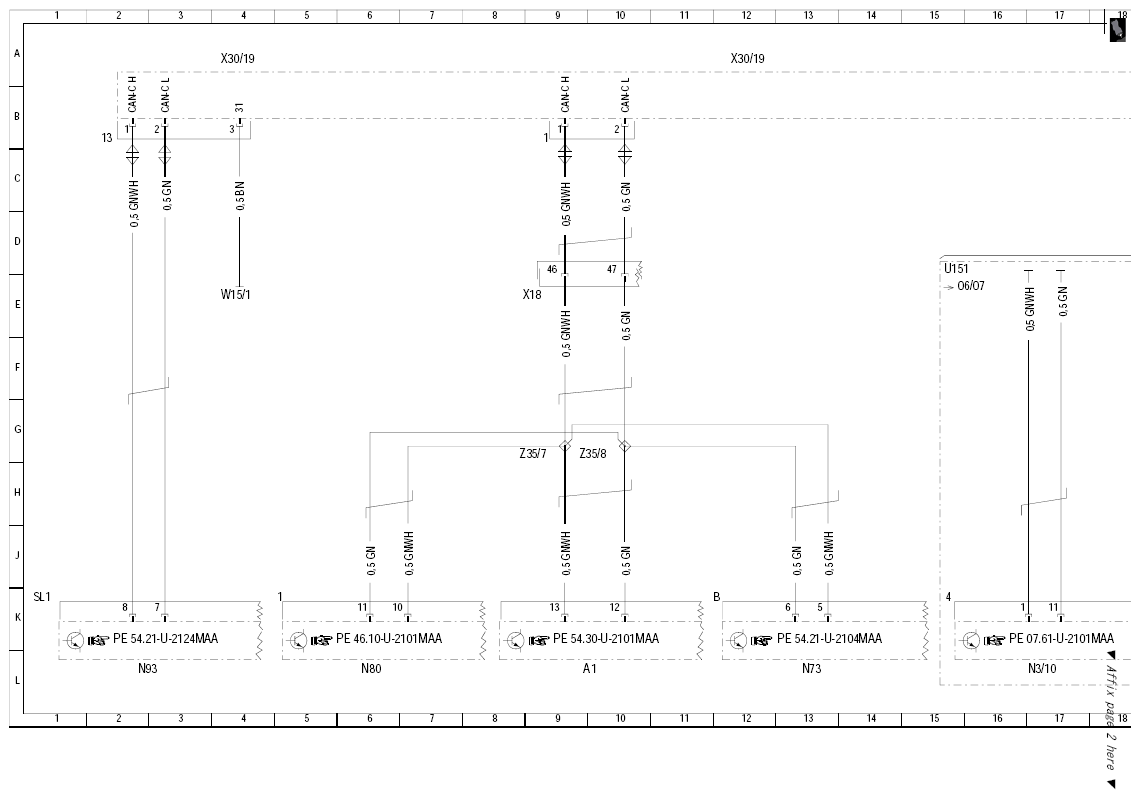

Fig 1: Engine CAN Bus - Wiring Diagram (1 Of 4)

Courtesy of MERCEDES-BENZ USA

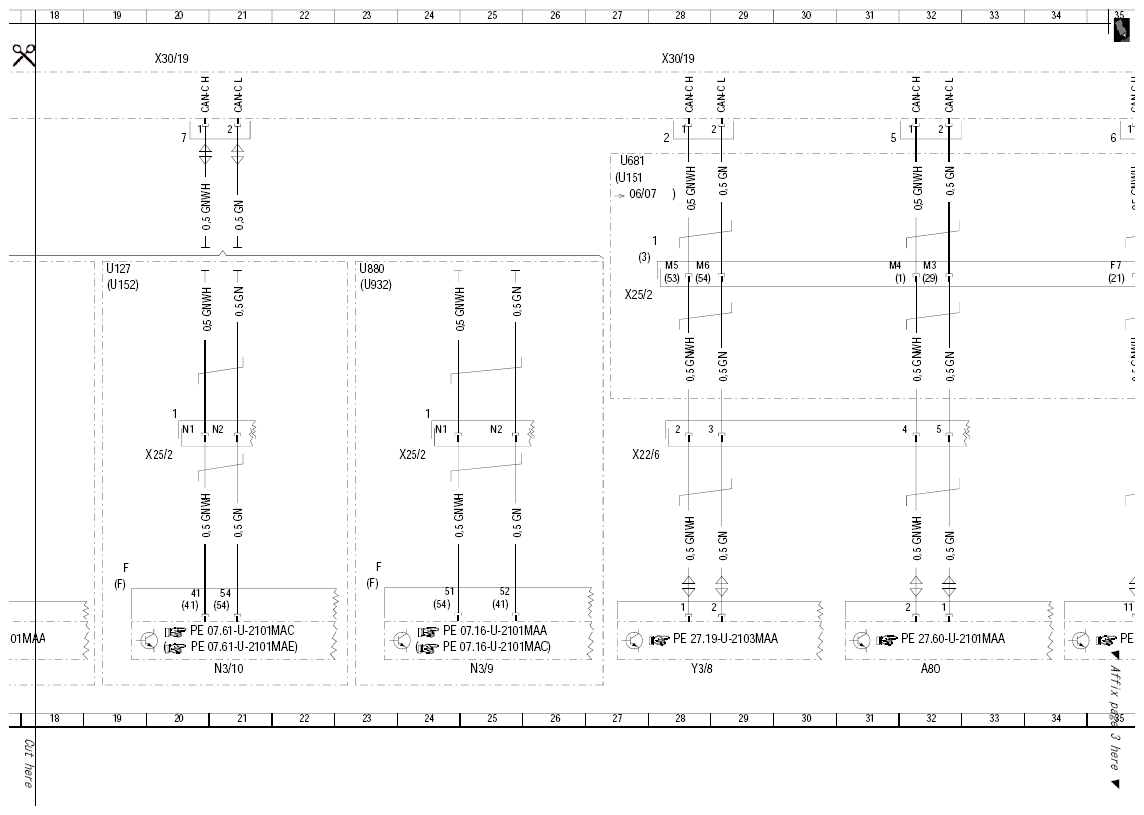

Fig 2: Engine CAN Bus - Wiring Diagram (2 Of 4)

Courtesy of MERCEDES-BENZ USA

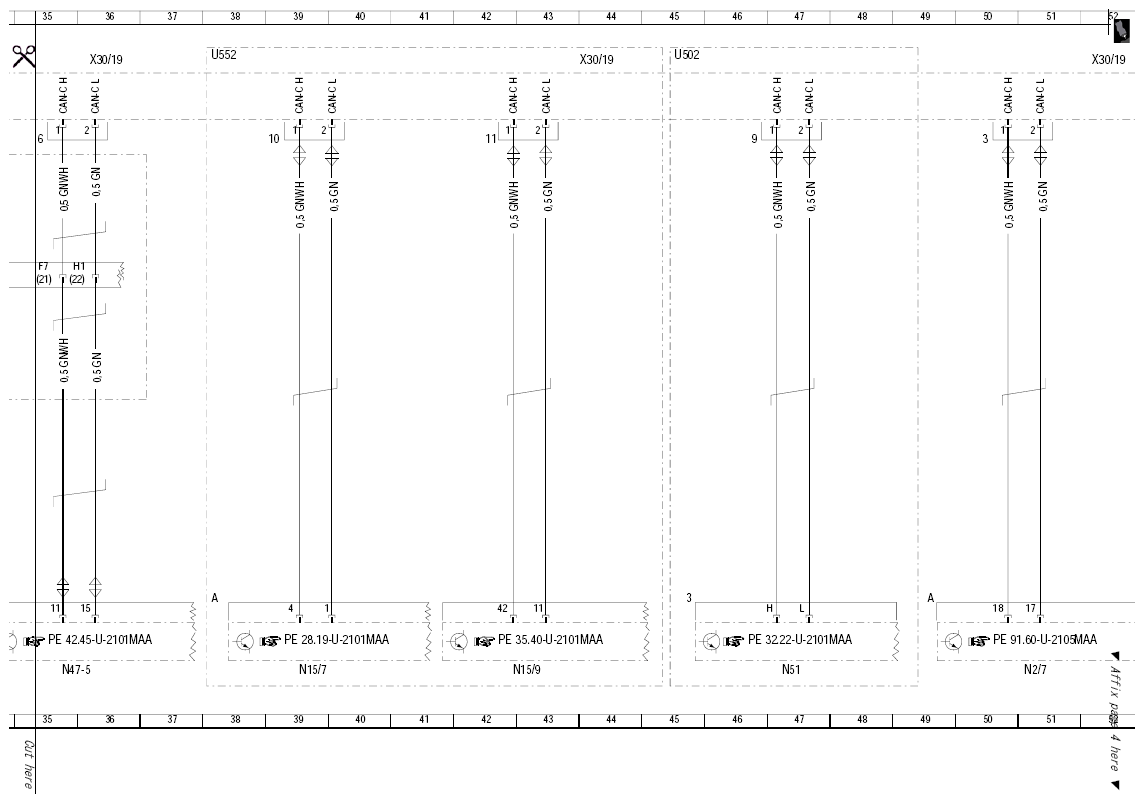

Fig 3: Engine CAN Bus - Wiring Diagram (3 Of 4)

Courtesy of MERCEDES-BENZ USA

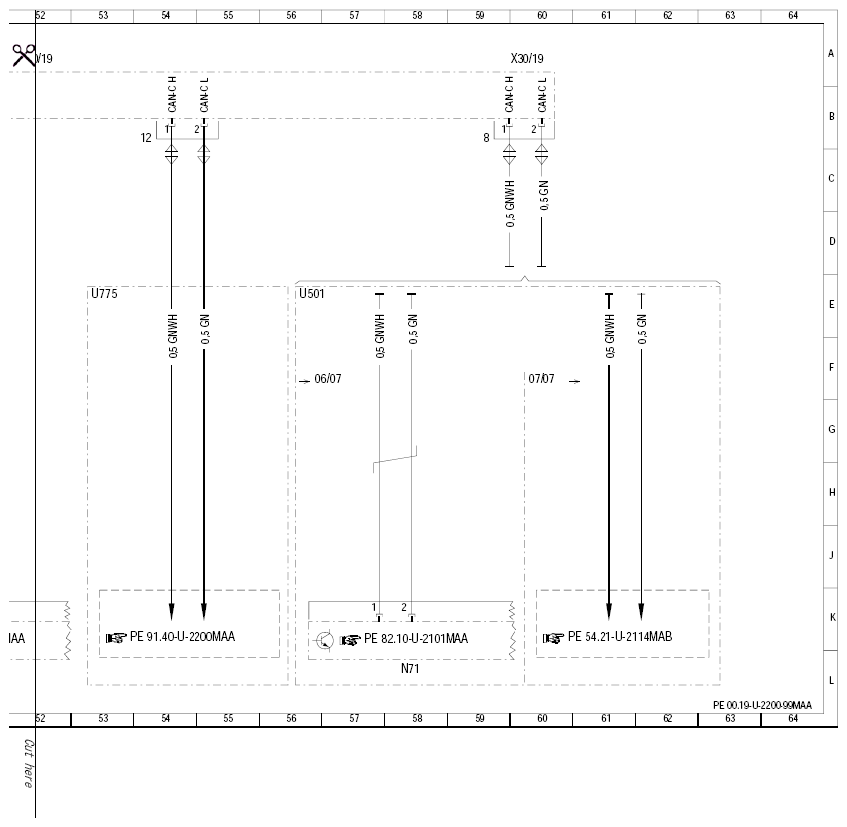

Fig 4: Engine CAN Bus - Wiring Diagram (4 Of 4)

Courtesy of MERCEDES-BENZ USA
