Electric wiring diagram of solder joints/Z connector sleeves - PE00.19-U-2600-99MAD

MODEL 164 Z50/5, Z51/6, Z81/8, Z204

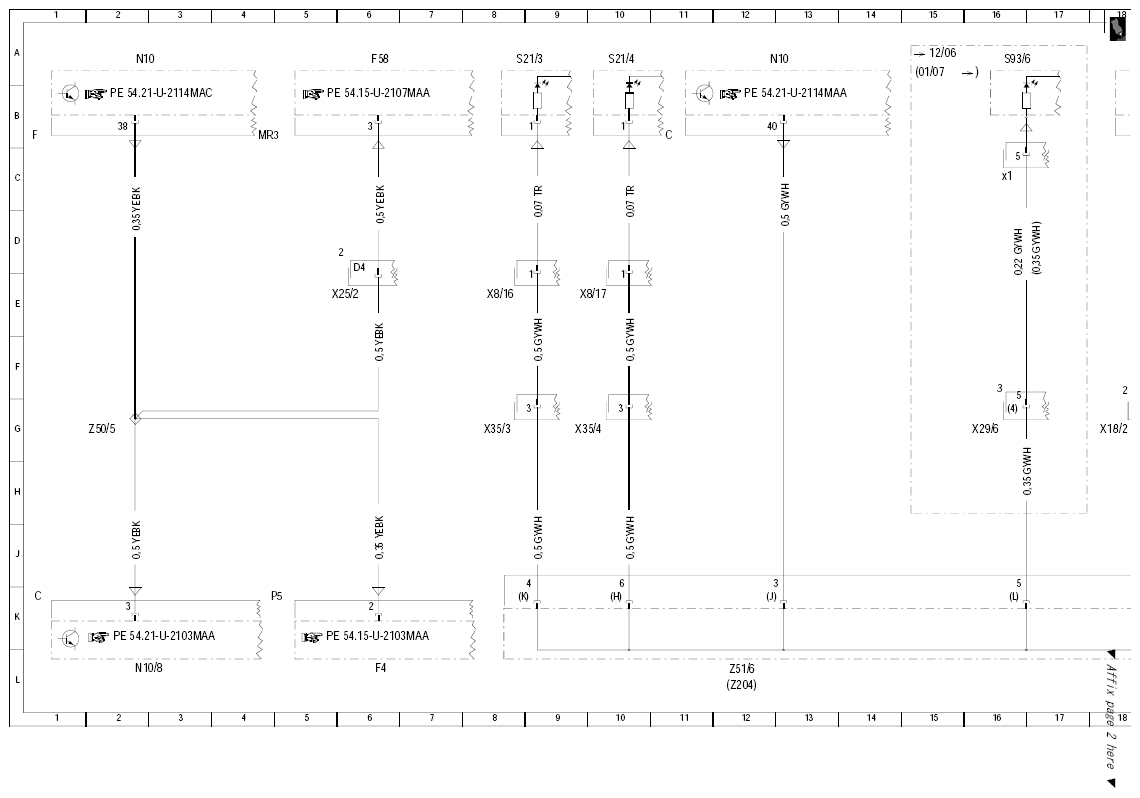

Fig 1: Solder Joints/Z Connector Sleeves - Wiring Diagram (1 Of 4)
G10114905Courtesy of MERCEDES-BENZ USA

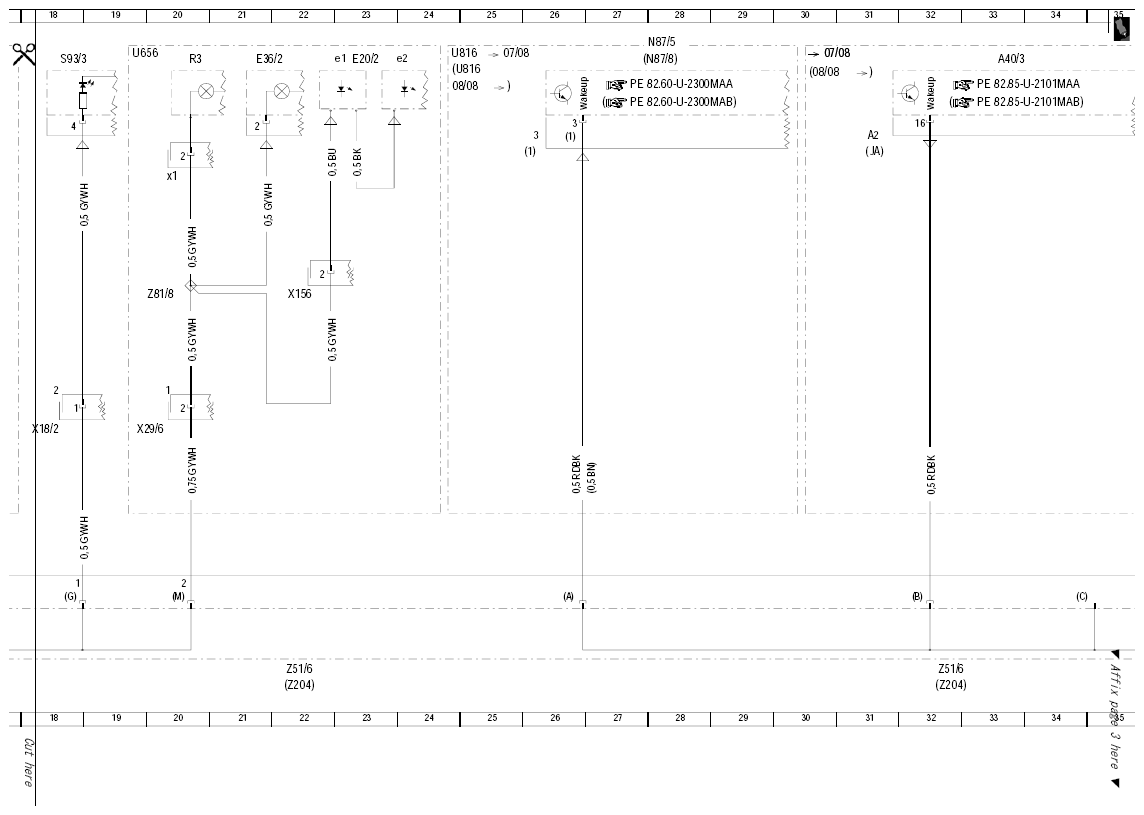

Fig 2: Solder Joints/Z Connector Sleeves - Wiring Diagram (2 Of 4)
G10114906Courtesy of MERCEDES-BENZ USA

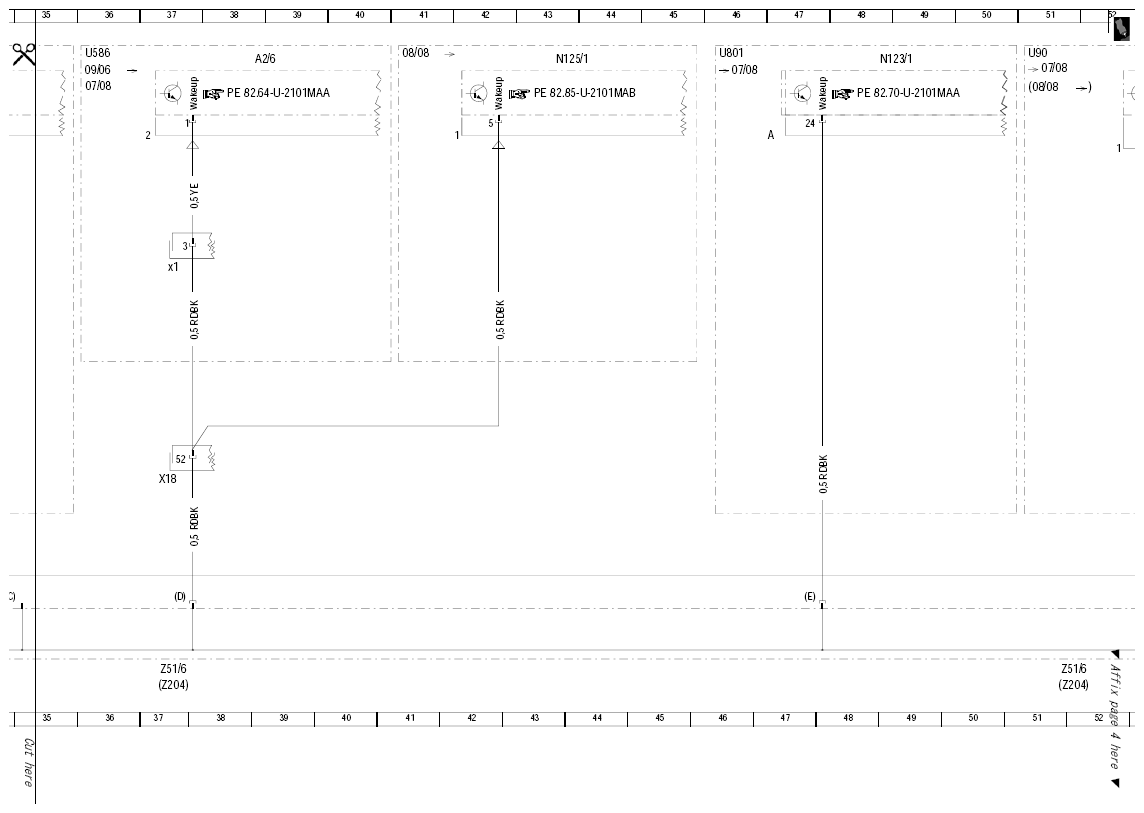

Fig 3: Solder Joints/Z Connector Sleeves - Wiring Diagram (3 Of 4)
G10114907Courtesy of MERCEDES-BENZ USA

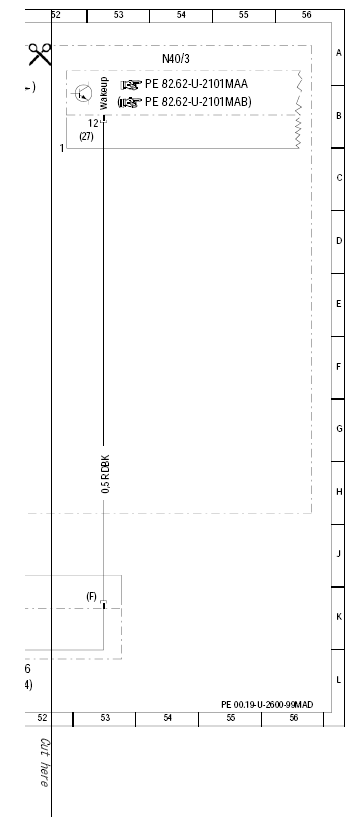

Fig 4: Solder Joints/Z Connector Sleeves - Wiring Diagram (4 Of 4)
G10114908Courtesy of MERCEDES-BENZ USA
