Electric wiring diagram of ground wiring - PE00.19-U-2800-99MAD

MODEL 164 W17/1, W17/3, Solder joints/Z connector sleeves Z53/26, Z53/28, Z61/4, Z62/12, Z61/13, Z204/3, Z204/6

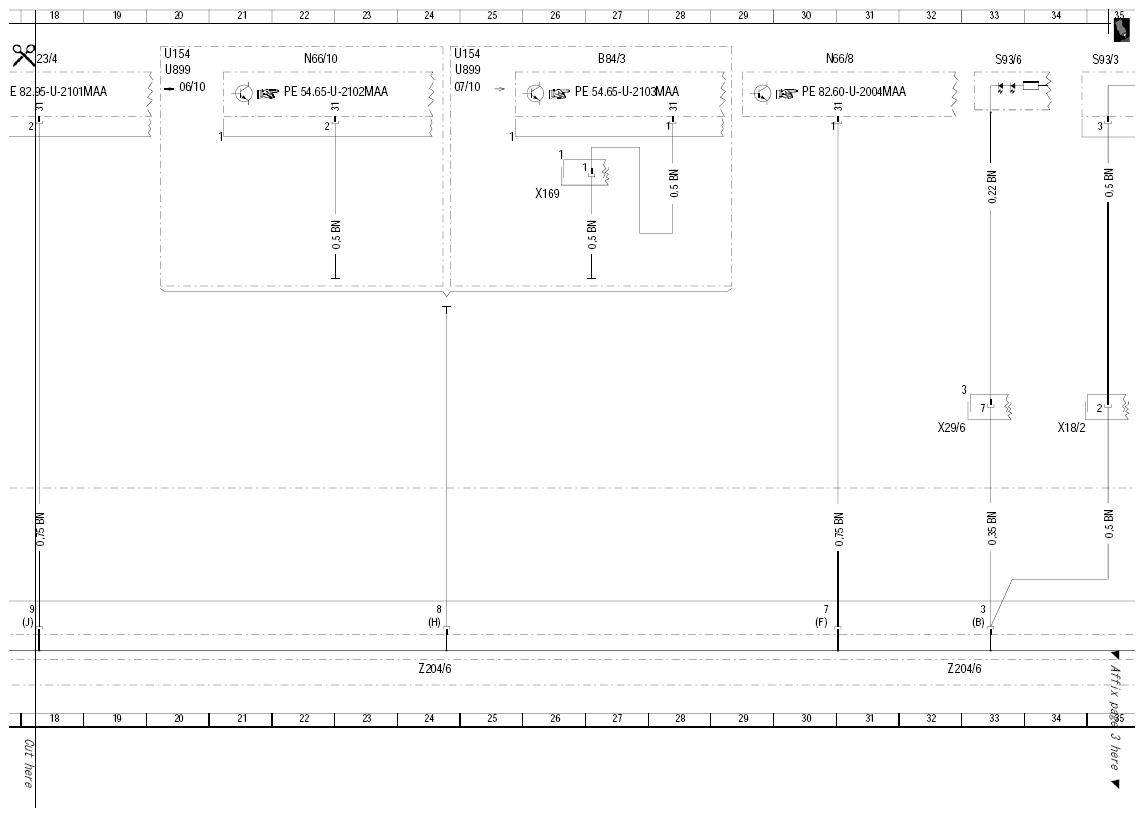

Fig 1: Electric Ground - Wiring Diagram (1 Of 4)

Courtesy of MERCEDES-BENZ USA

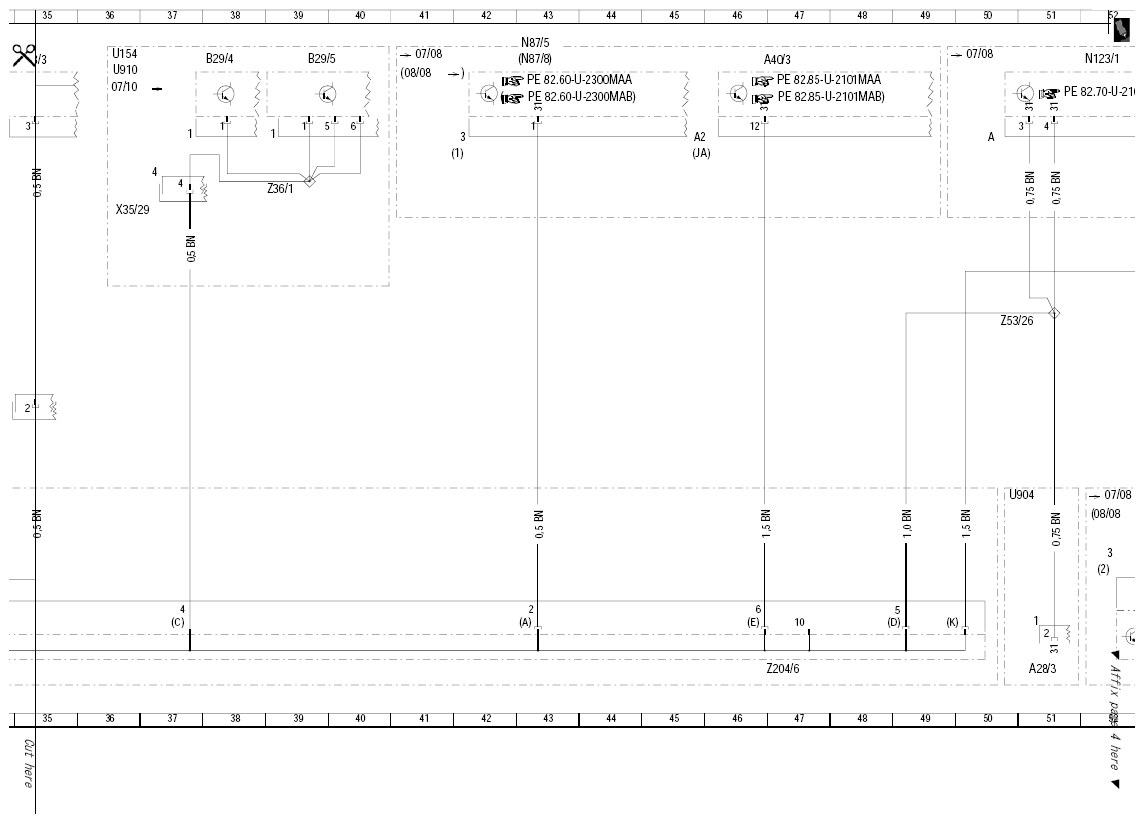

Fig 2: Electric Ground - Wiring Diagram (2 Of 4)

Courtesy of MERCEDES-BENZ USA

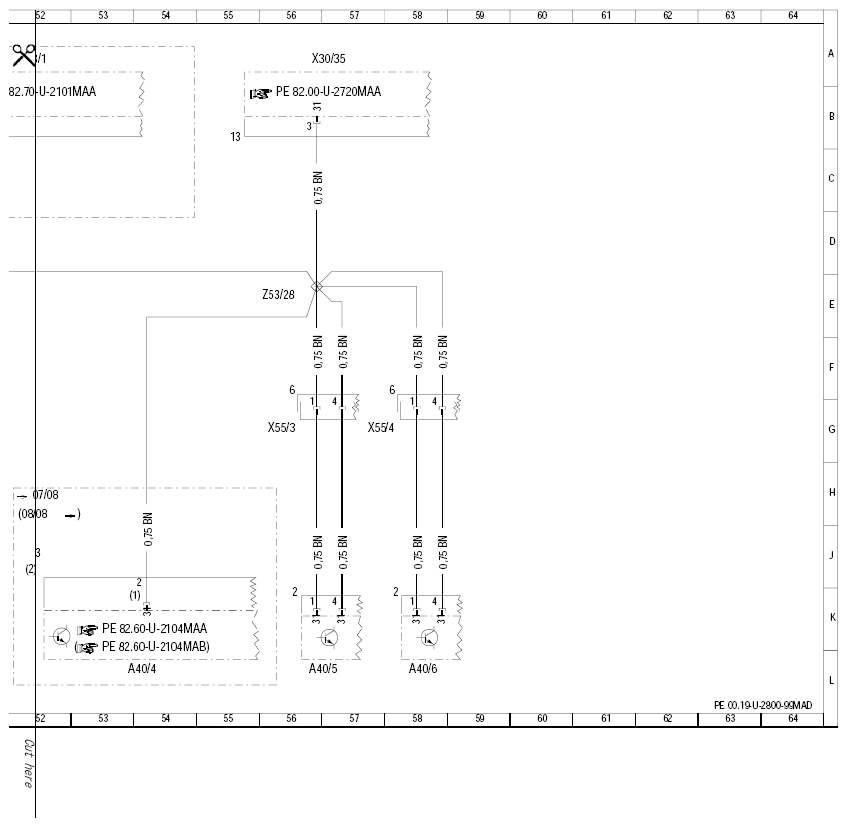

Fig 3: Electric Ground - Wiring Diagram (3 Of 4)

Courtesy of MERCEDES-BENZ USA

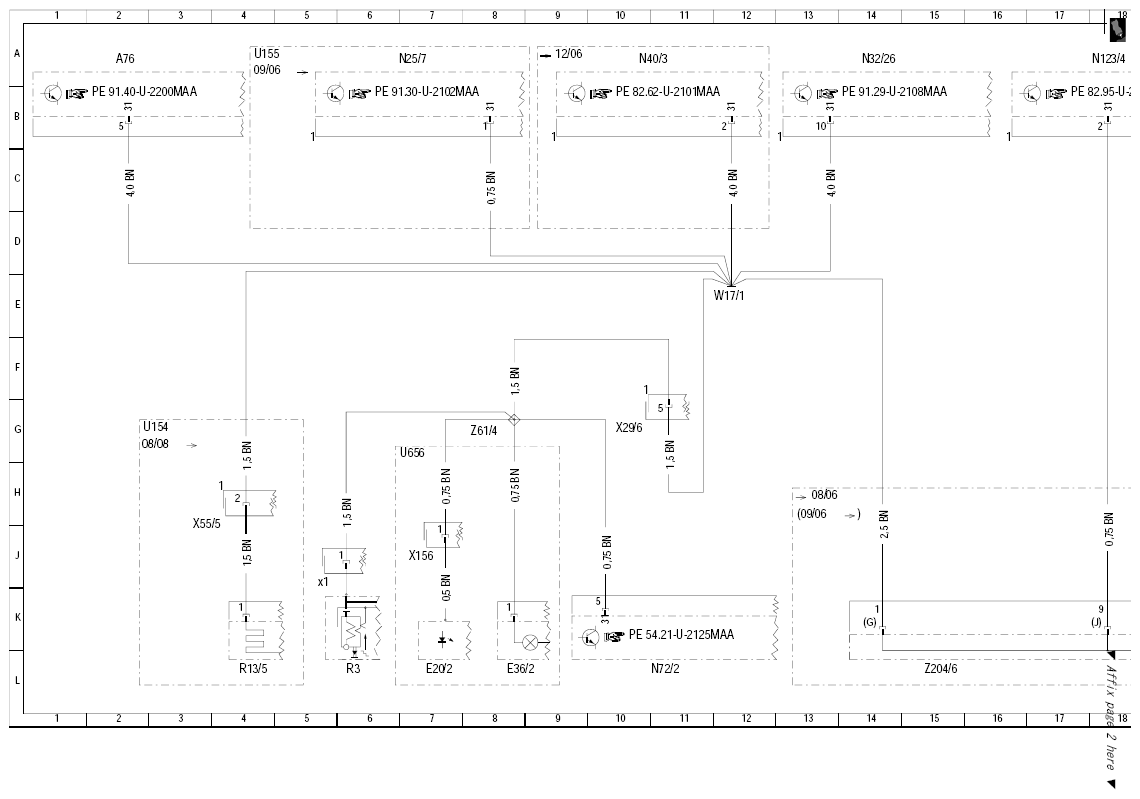

Fig 4: Electric Ground - Wiring Diagram (4 Of 4)

Courtesy of MERCEDES-BENZ USA
