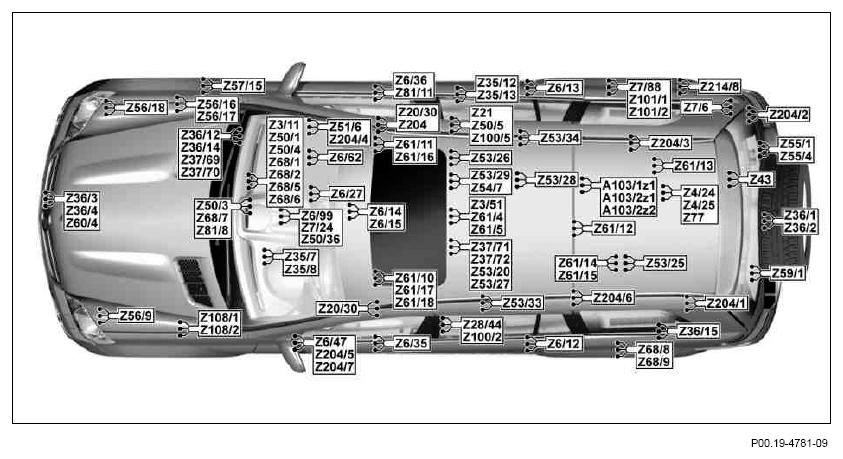

Location and assignment of Z connector sleeves (wiring and plug connectors in wiring harness) - GF00.19-P-3000MAA
MODEL 164
| A103/1z1 | Connector sleeve/temperature sensor for AdBlue® tank module | M642.8 | GF00.19-P-3000-06MAA |
| A103/2z1 | Connector sleeve/AdBlue® delivery module reversing valve | M642.8 | GF00.19-P-3000-06MAA |
| A103/2z2 | Connector sleeve/delivery pump and heating element of AdBlue® delivery module | M642.8 | GF00.19-P-3000-06MAA |

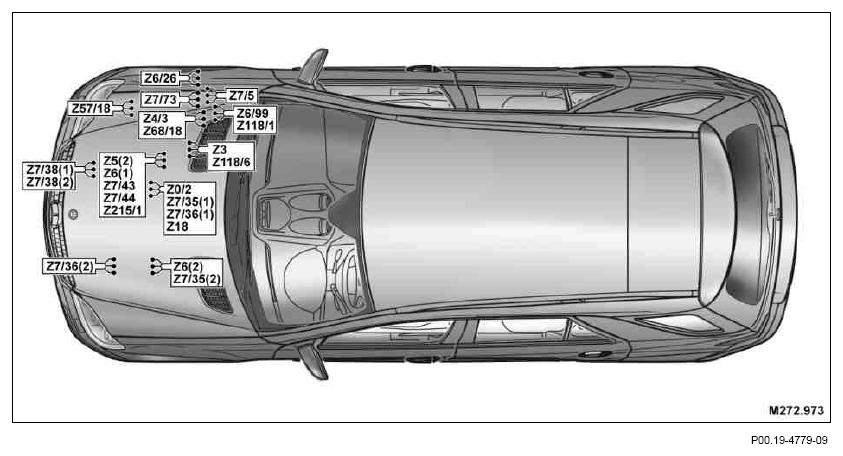

| Z0/2 | Connector sleeve (solder connector in harness) | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |

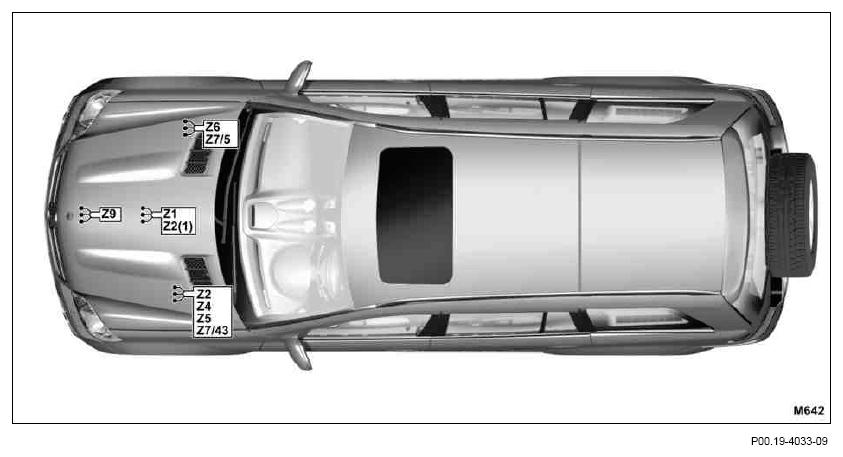

| Z1 | Connector sleeve 2 (solder joint in harness) | M642 | GF00.19-P-3000-01MAF |
| Z100/2 | Wake-up signal connector sleeve | GF00.19-P-3000-04MAA | |
| Z100/5 | Wake-up signal 2 connector sleeve | GF00.19-P-3000-05MAA | |
| Z101/1 | Pulse width module fuel pump connector sleeve | GF00.19-P-3000-07MAA | |
| Z101/2 | Fuel pump connector sleeve | GF00.19-P-3000-07MAA | |
| Z108/1 | Washer nozzle heater circuit 31 connector sleeve | GF00.19-P-3000-01MAA | |
| Z108/2 | Washer nozzle heater signal connector sleeve | GF00.19-P-3000-01MAA | |
| Z118/1 | Brake booster hydraulic unit connector sleeve, circuit 86 | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z118/6 | Brake fluid indicator switch connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z18 | Connector sleeve 18 | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z2 | Circuit TD connector sleeve | M642 | GF00.19-P-3000-01MAF |
| Z2 (1) | Circuit TD connector sleeve | M642 | GF00.19-P-3000-01MAF |
| Z20/30(1) | Tracer wire connector sleeve | GF00.19-P-3000-04MAA | |
| Z20/30(2) | Tracer wire connector sleeve | GF00.19-P-3000-04MAA | |
| Z20/30(3) | Tracer wire connector sleeve | GF00.19-P-3000-05MAA | |
| Z20/30(4) | Tracer wire connector sleeve | GF00.19-P-3000-05MAA | |
| Z20/30 (5) | Tracer wire connector sleeve | GF00.19-P-3000-04MAA | |
| Z20/30 (6) | Tracer wire connector sleeve | GF00.19-P-3000-04MAA | |
| Z20/30 (7) | Tracer wire connector sleeve | GF00.19-P-3000-05MAA | |
| Z20/30(9) | Tracer wire connector sleeve | GF00.19-P-3000-05MAA | |
| Z204 | Wake-up signal/circuit 58d voltage distributor connector | GF00.19-P-3000-05MAA | |
| Z204/1 | Left wheel well luggage compartment, voltage distributor connector Circuit 31 | GF00.19-P-3000-06MAA | |
| Z204/2 | Circuit 31 right wheelhouse luggage compartment voltage distributor connector | GF00.19-P-3000-07MAA | |
| Z204/3 | Circuit 31 right rear seat voltage distributor connector | GF00.19-P-3000-07MAA | |
| Z204/4 | Circuit 31 right footwell voltage distributor connector | GF00.19-P-3000-05MAA | |
| Z204/5 | Voltage distributor connector, left footwell. Circuit 31 (1) | GF00.19-P-3000-04MAA | |
| Z204/6 | Voltage distributor connector, left rear seat Circuit 31 | GF00.19-P-3000-04MAA | |
| Z204/7 | Voltage distributor connector, left footwell. circuit 31 (2) | GF00.19-P-3000-04MAA | |
| Z21 | Front rotary tumbler switch connector sleeve | GF00.19-P-3000-05MAA | |
| Z214/8 | Shutoff valve supply connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-05MAA |
| Z215/1 | Sensor ground connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z28/44 | Antenna actuation connector sleeve | GF00.19-P-3000-04MAA | |
| Z3 | Tml. 15 connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z3/11 | Circuit 15 (fused) connector sleeve | GF00.19-P-3000-03MAA | |

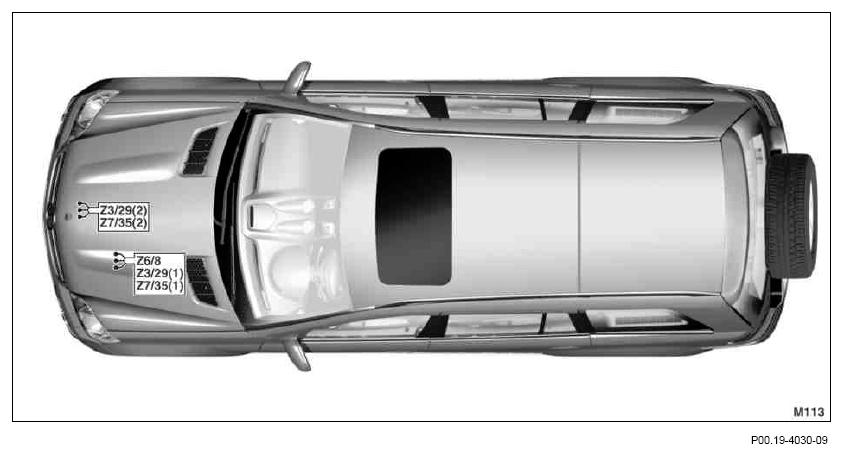

| Z3/29 (1) | Circuit 15 connector sleeve (fused) | M113 | GF00.19-P-3000-01MAB |
| Z3/29(2) | Circuit 15 connector sleeve (fused) | M113 | GF00.19-P-3000-01MAB |
| Z3/51 | Front center console connector sleeve, circuit 15R | GF00.19-P-3000-04MAA | |
| Z35/12 | CAN D low connector sleeve | GF00.19-P-3000-05MAA | |
| Z35/13 | CAN D high connector sleeve | GF00.19-P-3000-05MAA | |
| Z35/14 | CAN-C low engine compartment connector sleeve | GF00.19-P-3000-02MAA | |
| Z35/15 | CAN-C high engine compartment connector sleeve | GF00.19-P-3000-02MAA | |
| Z35/7 | Cockpit CAN bus node (high) | GF00.19-P-3000-03MAA | |
| Z35/8 | Cockpit CAN bus node (low) | GF00.19-P-3000-03MAA | |
| Z36/1 | Rear PTS sensor ground connector sleeve | GF00.19-P-3000-21MAA | |
| Z36/12 | Headlamp range adjustment (HRA [LWR]) control bus connector sleeve | GF00.19-P-3000-02MAA | |
| Z36/14 | Static headlamp range adjustment signal connector sleeve | GF00.19-P-3000-02MAA | |
| Z36/15 | Rear additional tail lamp ground connector sleeve | GF00.19-P-3000-06MAA | |
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | GF00.19-P-3000-21MAA | |
| Z36/3 | Front PTS sensor ground connector sleeve | GF00.19-P-3000-20MAA | |
| Z36/4 | Front PTS sensor voltage supply connector sleeve | GF00.19-P-3000-20MAA | |
| Z37/69 | Dynamic CAN bus (high) connector sleeve | GF00.19-P-3000-02MAA | |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | GF00.19-P-3000-02MAA | |
| Z37/71 | Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve | GF00.19-P-3000-04MAA | |
| Z37/72 | Reversible emergency tensioning retractor CAN engine bus (high) connector sleeve | GF00.19-P-3000-04MAA | |
| Z4 | Circuit 15/30 connector sleeve (solder connector in wiring harness) | M642 | GF00.19-P-3000-01MAF |
| Z4/24 | Electric loading floor signal circuit 30 connector sleeve | GF00.19-P-3000-07MAA | |
| Z4/25 | Electric loading floor load circuit 30 connector sleeve | GF00.19-P-3000-07MAA | |
| Z4/3 | Tml. 30 connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z43 | Heated rear window connector sleeve | GF00.19-P-3000-07MAA | |
| Z5 | Connector sleeve (solder connector in harness) | M642 | GF00.19-P-3000-01MAF |
| Z5 (2) | Connector sleeve (solder connector in harness) | M272 | GF00.19-P-3000-02MAD |
| Z5 (2) | Connector sleeve (solder connector in harness) | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z50/3 | Circuit 31 cockpit connector sleeve (1, left) | GF00.19-P-3000-03MAA | |
| Z50/36 | Circuit 31 (4) cockpit connector sleeve) | GF00.19-P-3000-03MAA | |
| Z50/4 | Circuit 31 cockpit connector sleeve (2, right) | GF00.19-P-3000-03MAA | |
| Z50/5 | Tml. 15 connector sleeve | GF00.19-P-3000-05MAA | |
| Z51/6 | Circuit 58d interior connector sleeve | GF00.19-P-3000-05MAA | |
| Z53/20 | Interior connector sleeve, 15R | GF00.19-P-3000-04MAA | |
| Z53/25 | UPCI [UHI] circuit 30 interior compartment solder point | GF00.19-P-3000-04MAA | |
| Z53/26 | Telematics circuit 31 interior solder point 1 | GF00.19-P-3000-05MAA | |
| Z53/27 | TV amplifier supply | GF00.19-P-3000-04MAA | |
| Z53/28 | Telematics circuit 31 interior solder point 2 | GF00.19-P-3000-05MAA | |
| Z53/28 | Telematics circuit 31 interior solder point 2 | GF00.19-P-3000-05MAA | |
| Z53/29 | Rear seat entertainment circuit 30 solder connector | GF00.19-P-3000-04MAA | |
| Z53/33 | Left 2nd seat row seat heater terminal connector | GF00.19-P-3000-04MAA | |
| Z53/34 | Right IRM 2SR seat heater terminal connector | GF00.19-P-3000-05MAA | |
| Z54/7 | Footwell lamps connector sleeve | GF00.19-P-3000-04MAA | |
| Z55/1 | Rear-end door circuit 31 connector sleeve | GF00.19-P-3000-07MAA | |
| Z55/4 | Rear-end door warning lamp terminal connector | GF00.19-P-3000-07MAA | |
| Z56/16 | Level sensor ground engine compartment solder point | GF00.19-P-3000-02MAA | |
| Z56/17 | Level sensor supply engine compartment solder point | GF00.19-P-3000-02MAA | |
| Z56/18 | Low temperature water pump connector sleeve | GF00.19-P-3000-02MAA | |
| Z56/9 | Left engine compartment connector sleeve (circuit 56B) | GF00.19-P-3000-01MAA | |
| Z57/15 | Right engine compartment connector sleeve (circuit 56B) | GF00.19-P-3000-02MAA | |
| Z57/18 | High-voltage signal distribution connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z59/1 | Wheel carrier connector sleeve (circuit 31) | GF00.19-P-3000-06MAA | |
| Z6 | Ground connector sleeve | M642 | GF00.19-P-3000-01MAF |

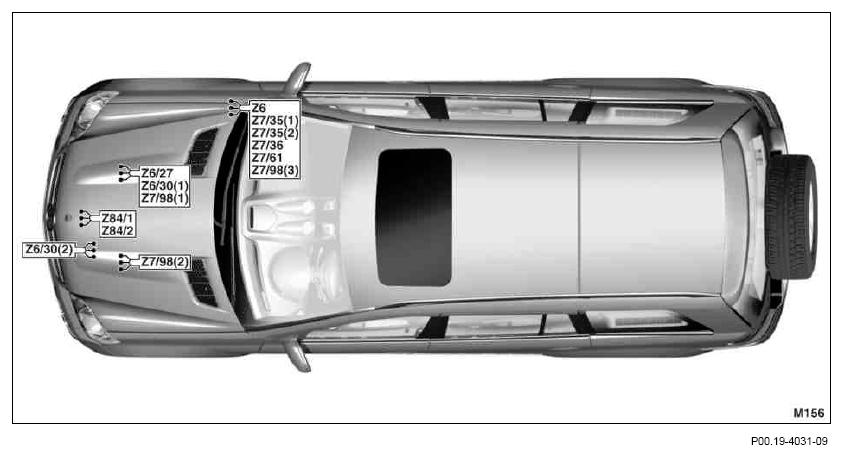

| Z6 | Ground connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z6(1) | Ground connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |

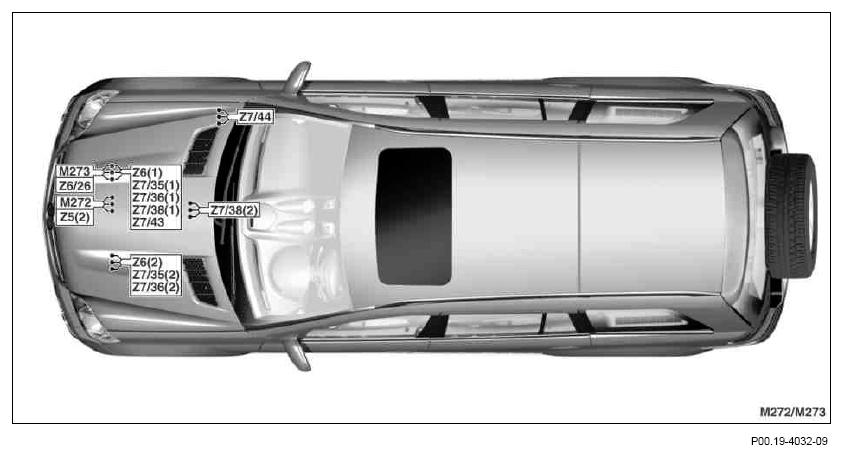

| Z6(1) | Ground connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z6(1) | Ground connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z6(2) | Ground connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-01MAG |
| Z6(2) | Ground connector sleeve | M272 | GF00.19-P-3000-01MAD |
| Z6(2) | Ground connector sleeve | M273 | GF00.19-P-3000-01MAE |
| Z6/12 | Left rear door ground connector sleeve | GF00.19-P-3000-04MAA | |
| Z6/13 | Right rear door ground connector sleeve | GF00.19-P-3000-05MAA | |
| Z6/14 | Circuit 31 ground connector sleeve (left belt buckle) | GF00.19-P-3000-04MAA | |
| Z6/15 | Circuit 31 ground connector sleeve (right belt buckle) | GF00.19-P-3000-04MAA | |
| Z6/26 | Sensor supply connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z6/26 | Sensor supply connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z6/27 | Sensor ground connector sleeve | M113 | GF00.19-P-3000-02MAB |
| Z6/27 | Sensor ground connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z6/30 (1) | ME-SFI [ME] diagnosis connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z6/30 (2) | ME-SFI [ME] diagnosis connector sleeve | M156 | GF00.19-P-3000-01MAC |
| Z6/35 | Left front door ground connector sleeve | GF00.19-P-3000-04MAA | |
| Z6/36 | Right front door ground connector sleeve | GF00.19-P-3000-05MAA | |
| Z6/47 | Ground (W15/2) connector sleeve | GF00.19-P-3000-04MAA | |
| Z6/62 | Circuit 31 connector sleeve (ECE) | GF00.19-P-3000-03MAA | |
| Z6/8 | Sensor ground connector sleeve | M113 | GF00.19-P-3000-01MAB |
| Z6/99 | Transmission circuit 31 connector sleeve | Except engine 272.973 in model 164.195 | GF00.19-P-3000-01MAA |
| Z6/99 | Transmission circuit 31 connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAA |
| Z60/4 | Front fog lamp wiring harness connector sleeve (circuit 31) | GF00.19-P-3000-20MAA | |
| Z61/10 | Driver seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-04MAA | |
| Z61/11 | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-P-3000-05MAA | |
| Z61/12 | Left circuit 31 2nd seat row solder point | GF00.19-P-3000-04MAA | |
| Z61/13 | Right circuit 31 2nd seat row solder point | GF00.19-P-3000-05MAA | |
| Z61/14 | 3rd seat row supply solder point | GF00.19-P-3000-04MAA | |
| Z61/15 | Circuit 31 3rd seat row solder point | GF00.19-P-3000-04MAA | |
| Z61/16 | Convenience relay circuit 30 connector sleeve | GF00.19-P-3000-05MAA | |
| Z61/17 | Convenience relay circuit 31 connector sleeve | GF00.19-P-3000-04MAA | |
| Z61/18 | Driver seat circuit 15R connector sleeve | GF00.19-P-3000-04MAA | |
| Z61/4 | Front center console circuit 31 connector sleeve | GF00.19-P-3000-04MAA | |
| Z61/5 | Circuit 31 center console wiring harness connector sleeve | GF00.19-P-3000-04MAA | |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | GF00.19-P-3000-03MAA | |
| Z68/18 | Rear AC LIN connector sleeve (signal) | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z68/2 | Instrument panel climate control LIN positive line connector sleeve | GF00.19-P-3000-03MAA | |
| Z68/5 | Center ventilator circuit 31 climate control LIN connector sleeve | GF00.19-P-3000-03MAA | |
| Z68/6 | Center ventilator climate control LIN positive line connector sleeve | GF00.19-P-3000-03MAA | |
| Z68/7 | Cockpit AC system sensor ground | GF00.19-P-3000-03MAA | |
| Z68/8 | Rear air conditioning sensor ground connector sleeve | GF00.19-P-3000-06MAA | |
| Z68/9 | Rear air conditioning blower regulator diagnosis connector sleeve | GF00.19-P-3000-06MAA | |
| Z7/24 | Circuit 87 connector sleeve | GF00.19-P-3000-01MAA | |
| Z7/35 (1) | Circuit 87M1e connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/35 (1) | Circuit 87M1e connector sleeve | M113 | GF00.19-P-3000-01MAB |
| Z7/35 (1) | Circuit 87M1e connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z7/35 (1) | Circuit 87 M1e connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/35 (1) | Circuit 87M1e connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z7/35(2) | Circuit 87M1e connector sleeve | M273 | GF00.19-P-3000-01MAE |
| Z7/35(2) | Circuit 87M1e connector sleeve | M272 | GF00.19-P-3000-01MAD |
| Z7/35(2) | Circuit 87 M1e connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-01MAG |
| Z7/35(2) | Circuit 87M1e connector sleeve | M113 | GF00.19-P-3000-01MAB |
| Z7/35(2) | Circuit 87M1e connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z7/36 | Circuit 87 M2e connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z7/36(1) | Circuit 87 M2e connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z7/36(1) | Circuit 87 M2e connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/36(1) | Circuit 87 M2e connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/36(2) | Circuit 87 M2e connector sleeve | M273 | GF00.19-P-3000-01MAE |
| Z7/36(2) | Circuit 87 M2e connector sleeve | M272 | GF00.19-P-3000-01MAD |
| Z7/36(2) | Circuit 87 M2e connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-01MAG |
| Z7/38 (1) | Circuit 87 M1i connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z7/38 (1) | Circuit 87 M1i connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/38 (1) | Circuit 87 M1i connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/38(2) | Circuit 87 M1i connector sleeve | M273 | GF00.19-P-3000-01MAE |
| Z7/38(2) | Circuit 87 M1i connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/38(2) | Circuit 87 M1i connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/43 | Sensor ground connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/43 | Sensor ground connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z7/43 | Sensor ground connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/43 | Sensor ground connector sleeve | M642 | GF00.19-P-3000-01MAF |
| Z7/44 | Sensor ground connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/44 | Sensor ground connector sleeve | M272 | GF00.19-P-3000-02MAD |
| Z7/44 | Sensor ground connector sleeve | M273 | GF00.19-P-3000-02MAE |
| Z7/5 | Circuit 87 connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/5 | Circuit 87 connector sleeve | M642 | GF00.19-P-3000-02MAA |
| Z7/6 | Circuit 87 connector sleeve (body) | Engine 272.973 in model 164.195 | GF00.19-P-3000-05MAA |
| Z7/61 | 5V output 2 connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z7/73 | Circuit 87D4 connector sleeve | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF |
| Z7/88 | Fuel pump control unit circuit 30 connector sleeve | GF00.19-P-3000-07MAA | |
| Z7/98(1) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z7/98(2) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-01MAC |
| Z7/98 (3) | Circuit 87 M3e connector sleeve | M156 | GF00.19-P-3000-02MAC |
| Z77 | Electric loading floor circuit 31 connector sleeve | GF00.19-P-3000-07MAA | |
| Z81/11 (LHD) | Front passenger circuit 58d connector sleeve | GF00.19-P-3000-05MAA | |
| Z81/11 (RHD) | Front passenger circuit 58d connector sleeve | GF00.19-P-3000-04MAA | |
| Z81/8 | Front center console circuit 58d connector sleeve | GF00.19-P-3000-03MAA | |
| Z84/1 | Throttle valve actuator connector sleeve (+ signal) | M156 | GF00.19-P-3000-01MAC |
| Z84/2 | Throttle valve actuator connector sleeve (- signal) | M156 | GF00.19-P-3000-01MAC |
| Z9 | Connector sleeve 1 | M642 | GF00.19-P-3000-01MAF |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | GF00.19-P-3000-01MAA | ||
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 113 in model 164 | GF00.19-P-3000-01MAB | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 156 in model 164 | GF00.19-P-3000-01MAC | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 272 in model 164 | GF00.19-P-3000-01MAD | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 273 in model 164 | GF00.19-P-3000-01MAE | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 642.9 in model 164 | GF00.19-P-3000-01MAF | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment left | Engine 272.973 in model 164.195 | GF00.19-P-3000-01MAG | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | GF00.19-P-3000-02MAA | ||
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | Engine 113 in model 164 | GF00.19-P-3000-02MAB | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | Engine 156 in model 164 | GF00.19-P-3000-02MAC | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | Engine 272 in model 164 | GF00.19-P-3000-02MAD | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | Engine 273 in model 164 | GF00.19-P-3000-02MAE | |
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - engine compartment, right | Engine 272.973 in model 164.195 | GF00.19-P-3000-02MAF | |
| Location and assignment of Z connector sleeves (line connections in wiring harness), cockpit | GF00.19-P-3000-03MAA | ||
| Location and assignment of Z connector sleeves (line connections in wiring harness), interior left | GF00.19-P-3000-04MAA | ||
| Location and assignment of Z connector sleeves (line connections in wiring harness), interior right | GF00.19-P-3000-05MAA | ||
| Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left | GF00.19-P-3000-06MAA | ||
| Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk right | GF00.19-P-3000-07MAA | ||
| Location and assignment of Z connector sleeves (connectors in wiring harness) - front bumper | GF00.19-P-3000-20MAA | ||
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - rear outer | GF00.19-P-3000-21MAA |
