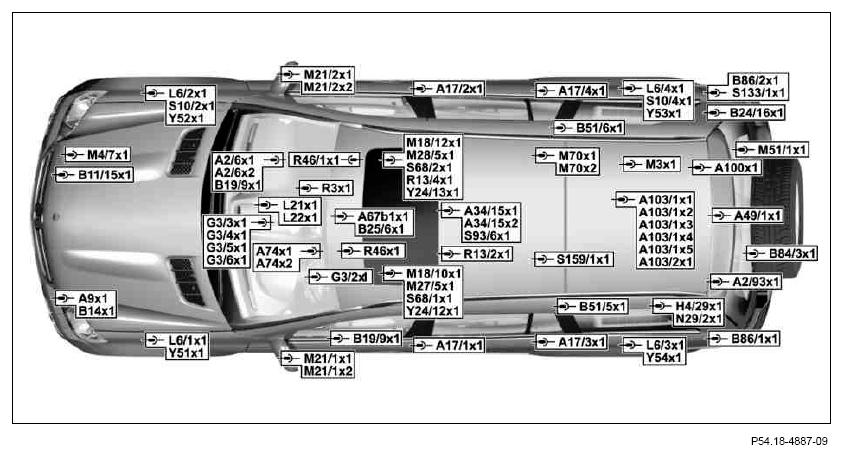

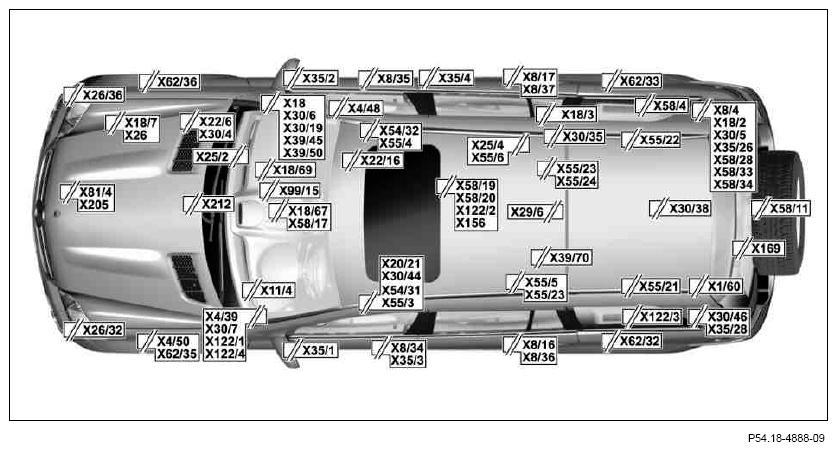

Arrangement and assignment of the wiring and plug connectors - GF00.19-U-1000MAA
MODEL 164
| A17/1x1 | Left front Keyless Go door handle connector | GF00.19-U-1000-04MAA | |
| A17/2x1 | Right front Keyless Go door handle connector | GF00.19-U-1000-05MAA | |
| A17/3x1 | Left rear Keyless Go door handle connector | GF00.19-U-1000-04MAA | |
| A17/4x1 | Right rear Keyless Go door handle connector | GF00.19-U-1000-05MAA | |
| A2/6x1 | CD changer connector 1 | GF00.19-U-1000-05MAA | |
| A2/6x2 | CD changer 2 connector | GF00.19-U-1000-05MAA | |
| A2/93x1 | Roof antenna module connector | GF00.19-U-1000-06MAA | |
| A34/15x1 | Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-05MAA | |
| A34/15x2 | Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) | GF00.19-U-1000-05MAA | |
| A49/1x1 | Interference filter 1 input connector | GF00.19-U-1000-07MAA | |
| A67b1x1 | Hands-free system microphone group connector | GF00.19-U-1000-04MAA | |
| A9x1 | AC compressor connector | GF00.19-U-1000-01MAA | |
| A74x1 | Steering wheel heater/fanfare horns electronics plug-in connector 1 | GF00.19-U-1000-04MAA | |
| A74x2 | Steering wheel heater/fanfare horns electronics plug-in connector 2 | GF00.19-U-1000-04MAA | |
| A100x1 | High-voltage battery module with interlock circuit electrical connector | GF00.19-U-1000-07MAA | |
| A103/1x1 | Connector AdBlue® tank module | GF00.19-U-1000-06MAA | |
| A103/1x2 | Connector/fill level sensor for AdBlue® tank module | GF00.19-U-1000-06MAA | |
| A103/1x3 | Connector/temperature sensor and heating element for AdBlue® tank module | GF00.19-U-1000-06MAA | |
| A103/1x4 | Connector 1/heating element of pressure line for AdBlue® tank module | GF00.19-U-1000-06MAA | |
| A103/1x5 | Connector 2/heating element of pressure line for AdBlue® tank module | GF00.19-U-1000-06MAA | |
| A103/2x1 | Connector/AdBlue® delivery module | GF00.19-U-1000-06MAA | |
| B11/15x1 | Cooler sensor for engine diagnosis electrical connector | GF00.19-U-1000-02MAA | |
| B14x1 | Ambient temperature indicator temperature sensor connector | GF00.19-U-1000-38MAA | |
| B19/9x1 | Temperature sensor connector upstream of diesel particulate filter | GF00.19-U-1000-01MAA | |
| B24/16x1 | Rear-end door opening angle recognition sensor connector | GF00.19-U-1000-07MAA | |
| B25/6x1 | Sound amplifier microphone connector | GF00.19-U-1000-04MAA | |
| B51/5x1 | Left vent window obstruction sensor strip connector | GF00.19-U-1000-04MAA | |
| B51/6x1 | Right vent window obstruction sensor strip connector | GF00.19-U-1000-05MAA | |
| B84/3x1 | Backup camera connector | GF00.19-U-1000-06MAA | |
| B86/1x1 | Left rear-end door closing obstruction sensor strip connector | GF00.19-U-1000-06MAA | |
| B86/2x1 | Right rear-end door closing obstruction sensor strip connector | GF00.19-U-1000-07MAA | |
| G3/2x1 | 02 sensor upstream TWC [KAT] connector | GF00.19-U-1000-04MAA | |
| G3/3x1 | Left O2 sensor upstream TWC [KAT] connector | GF00.19-U-1000-04MAA | |
| G3/4x1 | Right O2 sensor upstream TWC [KAT] connector | GF00.19-U-1000-04MAA | |
| G3/5x1 | Left O2 sensor downstream TWC [KAT] connector | GF00.19-U-1000-04MAA | |
| G3/6x1 | Right O2 sensor downstream TWC [KAT] connector | GF00.19-U-1000-04MAA | |
| H4/29x1 | Subwoofer connector | GF00.19-U-1000-06MAA | |
| L6/1x1 | Wheel speed sensor connector | GF00.19-U-1000-02MAA | |
| L6/2x1 | Wheel speed sensor connector | GF00.19-U-1000-01MAA | |
| L6/3x1 | Wheel speed sensor connector | GF00.19-U-1000-06MAA | |
| L6/4x1 | Wheel speed sensor connector | GF00.19-U-1000-07MAA | |
| L21x1 | Electrical connector for rotor position sensor/temperature sensor of electric machine 1 | GF00.19-U-1000-02MAA | |
| L22x1 | Electrical connector for rotor position sensor/temperature sensor of electric machine 2 | GF00.19-U-1000-02MAA | |
| M18/10x1 | Left front seat backrest ventilation motor group connector | GF00.19-U-1000-04MAA | |
| M18/12x1 | Right front seat backrest ventilation motor group connector | GF00.19-U-1000-05MAA | |
| M21/1x1 | Left electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-04MAA | |
| M21/1x2 | Left electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-04MAA | |
| M21/2x1 | Right electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-05MAA | |
| M21/2x2 | Right electrically adjustable and heated exterior mirror connector | GF00.19-U-1000-05MAA | |
| M27/5x1 | Driver backrest angle adjustment motor connector 1 | GF00.19-U-1000-04MAA | |
| M28/5x1 | Front passenger backrest angle adjustment motor connector 1 | GF00.19-U-1000-05MAA | |
| M3x1 | Fuel pump connector | GF00.19-U-1000-05MAA | |
| M4/7x1 | Engine and AC electric suction fan with integrated control connector 1 | GF00.19-U-1000-02MAA | |
| M51/1x1 | Rear-end door hydraulic pump connector | GF00.19-U-1000-07MAA | |
| M70x1 | Rear axle differential actuator motor connector | GF00.19-U-1000-05MAA | |
| M70x2 | Rear axle differential actuator motor connector | GF00.19-U-1000-05MAA | |
| N29/2x1 | Rear automatic climate control electronic blower regulator connector | GF00.19-U-1000-06MAA | |
| R13/2x1 | Left front backrest heated cushion connector | GF00.19-U-1000-04MAA | |
| R13/4x1 | Right front backrest heater element connector | GF00.19-U-1000-05MAA | |
| R3x1 | Front cigar lighter (with ashtray illumination) connector | GF00.19-U-1000-05MAA | |
| R46/1x1 | Driver buckle ETR squib connector | GF00.19-U-1000-05MAA | |
| R46x1 | Driver buckle ETR squib | GF00.19-U-1000-04MAA | |
| S10/2x1 | Right front brake pad contact sensor connector | GF00.19-U-1000-02MAA | |
| S10/4x1 | Right rear brake pad contact sensor connector | GF00.19-U-1000-07MAA | |
| S159/1x1 | Right easy entry feature microswitch connector, 2nd seat row | GF00.19-U-1000-04MAA | |
| S68/1x1 | Left front seat belt buckle and seat belt warning switch connector | GF00.19-U-1000-04MAA | |
| S68/2x1 | Right front seat belt buckle and seat belt warning switch connector | GF00.19-U-1000-05MAA | |
| S93/6x1 | MB-Info and breakdown assistance button group connector | GF00.19-U-1000-05MAA | |
| S133/1x1 | Fuel filler flap switch electrical connector | GF00.19-U-1000-05MAA | |
| X1/60 | Tire pressure monitor connector | GF00.19-U-1000-06MAA | |
| X4/48 | Additional battery separating point | GF00.19-U-1000-05MAA | |
| X11/4 | Data link connector | GF00.19-U-1000-04MAA | |
| X122/1 | Center air outlet connector | GF00.19-U-1000-04MAA | |
| X122/2 | Booster blower connector (air conditioning) | GF00.19-U-1000-05MAA | |
| X122/3 | Rear AC connector | GF00.19-U-1000-06MAA | |
| X122/4 | Cockpit AC connector | GF00.19-U-1000-04MAA | |
| X156 | Illuminated cup holder separation point | GF00.19-U-1000-05MAA | |
| X169 | Trailer hitch socket (13-pin) | GF00.19-U-1000-06MAA | |
| X18 | Interior/cockpit connector | GF00.19-U-1000-05MAA | |
| X18/2 | Interior/roof connector | GF00.19-U-1000-07MAA | |
| X18/3 | Interior/fuel tank connector | GF00.19-U-1000-07MAA | |
| X18/7 | Interior/engine connector | GF00.19-U-1000-02MAA | |
| X18/67 | Media interface connector 1 | GF00.19-U-1000-05MAA | |
| X18/69 | Media interface connector 2 | GF00.19-U-1000-05MAA | |
| X205 | Tumble flap/variable intake manifold switchover valves connector | GF00.19-U-1000-02MAA | |
| X22/6 | Automatic transmission/intelligent servo module connector | GF00.19-U-1000-02MAA | |
| X22/16 | Transmission housing electrical connector | GF00.19-U-1000-02MAA | |
| X25/2 | Engine compartment/interior compartment connector | GF00.19-U-1000-05MAA | |
| X25/4 | Fuel tank (pressure, activated charcoal filter) connector | GF00.19-U-1000-05MAA | |
| X26 | Interior and engine wiring harness connector | GF00.19-U-1000-02MAA | |
| X26/32 | Left front engine compartment/bumper connector | GF00.19-U-1000-01MAA | |
| X26/36 | Right front engine compartment/bumper connector | GF00.19-U-1000-38MAA | |
| X29/6 | Center console intermediate connector | GF00.19-U-1000-06MAA | |
| X30/19 | Passenger-side voltage distributor (CAN C) connector | GF00.19-U-1000-05MAA | |
| X30/35 | Telematics CAN voltage distributor connector | GF00.19-U-1000-07MAA | |
| X30/4 | Right voltage distributor (CAN) connector | GF00.19-U-1000-05MAA | |
| X30/5 | Left voltage distributor (CAN) connector | GF00.19-U-1000-07MAA | |
| X30/6 | Cockpit voltage distributor (CAN) connector | GF00.19-U-1000-05MAA | |
| X30/7 | Voltage distributor (CAN) connector | GF00.19-U-1000-04MAA | |
| X30/21 | Drive train CAN voltage distributor connector | GF00.19-U-1000-04MAA | |
| X30/38 | Voltage distributor (CAN) connector | GF00.19-U-1000-07MAA | |
| X30/44 | Hybrid CAN voltage distributor connector | GF00.19-U-1000-04MAA | |
| X30/46 | Rear end CAN C potential distributor connector | GF00.19-U-1000-06MAA | |
| X35/1 | Left front door separation point | GF00.19-U-1000-04MAA | |
| X35/2 | Right front door separation point | GF00.19-U-1000-05MAA | |
| X35/26 | PTS, roof warning indicator connector | GF00.19-U-1000-07MAA | |
| X35/28 | PTS connector, rear bumper | GF00.19-U-1000-06MAA | |
| X35/3 | Left rear door separation point | GF00.19-U-1000-04MAA | |
| X35/4 | Right rear door separation point | GF00.19-U-1000-05MAA | |
| X39/45 | Walkman separation point | GF00.19-U-1000-05MAA | |
| X39/50 | Fiber optical cable connector (MOST) | GF00.19-U-1000-05MAA | |
| X39/70 | FFS [RBA} microphone array connector | GF00.19-U-1000-04MAA | |
| X4/39 | Steering column module separation point | GF00.19-U-1000-04MAA | |
| X4/50 | Battery cooling system connector 1 | GF00.19-U-1000-01MAA | |
| X54/31 | Driver seat external power feed separation point | GF00.19-U-1000-04MAA | |
| X54/32 | Front passenger seat external power feed separation point | GF00.19-U-1000-05MAA | |
| X55/21 | Left 3rd seat row connector block | GF00.19-U-1000-06MAA | |
| X55/22 | Right 3rd seat row connector block | GF00.19-U-1000-07MAA | |
| X55/23 | Left 2/3 bench seat (2nd seat row) backrest/cushion separation point | GF00.19-U-1000-06MAA | |
| X55/24 | Right 1/3 bench seat (2nd seat row) backrest/cushion separation point | GF00.19-U-1000-05MAA | |
| X55/3 | Left front seat contacting strip | GF00.19-U-1000-04MAA | |
| X55/4 | Right front seat contacting strip | GF00.19-U-1000-05MAA | |
| X55/5 | Left rear seat adjustment contacting strip | GF00.19-U-1000-04MAA | |
| X55/6 | Right rear seat adjustment contacting strip | GF00.19-U-1000-05MAA | |
| X58/11 | Trailer hitch socket (7-pin) | GF00.19-U-1000-06MAA | |
| X58/17 | Front interior socket | GF00.19-U-1000-05MAA | |
| X58/19 | Left 2nd seat row socket | GF00.19-U-1000-05MAA | |
| X58/20 | Right 2nd seat row socket | GF00.19-U-1000-05MAA | |
| X58/28 | Electric brake control separation point | GF00.19-U-1000-07MAA | |
| X58/33 | Interior compartment/trailer hitch separation point | GF00.19-U-1000-07MAA | |
| X58/34 | 115 V socket | GF00.19-U-1000-07MAA | |
| X58/4 | Cargo area socket | GF00.19-U-1000-07MAA | |
| X62/32 | Left rear axle electrical distributor connector | GF00.19-U-1000-04MAA | |
| X62/33 | Right rear axle electrical distributor connector | GF00.19-U-1000-05MAA | |
| X62/35 | BWI [BBV]/rpm left front axle connector | GF00.19-U-1000-01MAA | |
| X62/36 | BWI [BBV]/rpm right front axle connector | GF00.19-U-1000-02MAA | |
| X62/36 | BWI [BBV]/rpm right front axle connector | GF00.19-U-1000-02MAA | |
| X8/16 | Left rear door printed wiring harness connector | GF00.19-U-1000-04MAA | |
| X8/17 | Right rear door printed wiring harness connector | GF00.19-U-1000-05MAA | |
| X8/34 | Left front door handle connector | GF00.19-U-1000-04MAA | |
| X8/35 | Right front door handle connector | GF00.19-U-1000-05MAA | |
| X8/36 | Left rear door handle connector | GF00.19-U-1000-04MAA | |
| X8/37 | Right rear door handle connector | GF00.19-U-1000-05MAA | |
| X8/4 | Rear-end door separation point | GF00.19-U-1000-07MAA | |
| X81/4 | Engine wiring harness/throttle valve actuator connector | GF00.19-U-1000-02MAA | |
| X99/15 | Airbag separation point | GF00.19-U-1000-05MAA | |
| X212 | Power electronics interlock circuit electrical connector | GF00.19-U-1000-01MAA | |
| Y24/12x1 | Driver NECK-PRO head restraint solenoid connector | GF00.19-U-1000-04MAA | |
| Y24/13x1 | Front passenger NECK-PRO head restraint solenoid connector | GF00.19-U-1000-05MAA | |
| Y51x1 | Left front axle damping valve unit connector | GF00.19-U-1000-01MAA | |
| Y52x1 | Right front axle damping valve unit connector | GF00.19-U-1000-02MAA | |
| Y53x1 | Damping valve unit connector | GF00.19-U-1000-07MAA | |
| Y54x1 | Damping valve unit connector | GF00.19-U-1000-06MAA | |
