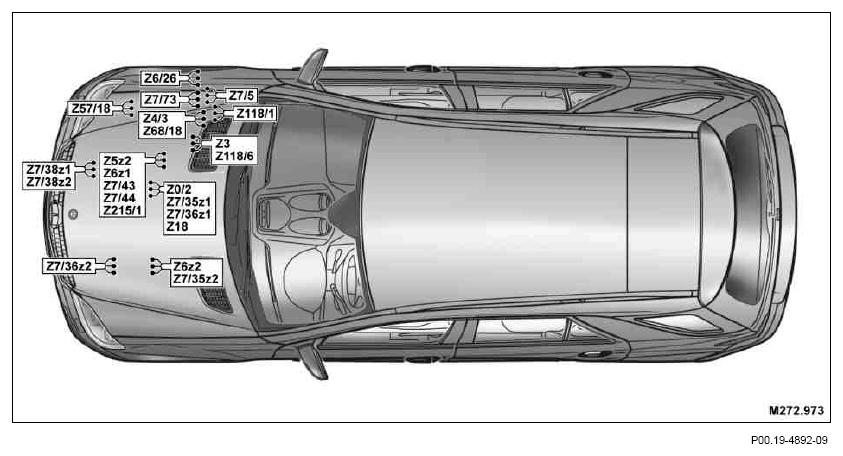

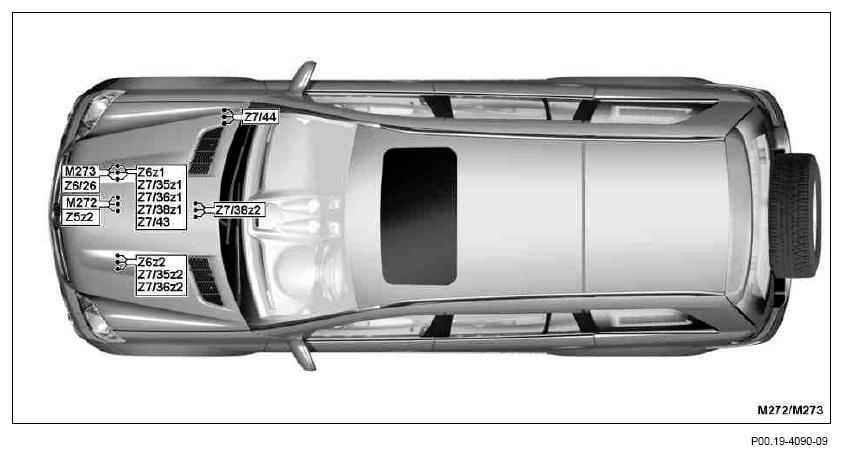

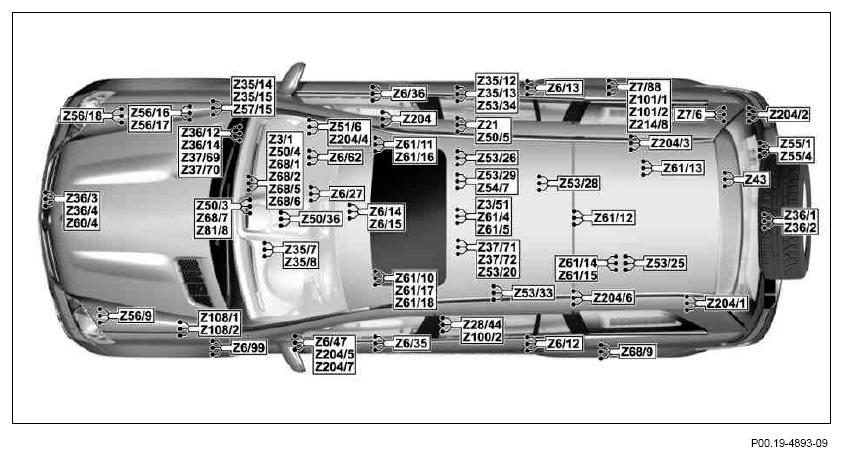

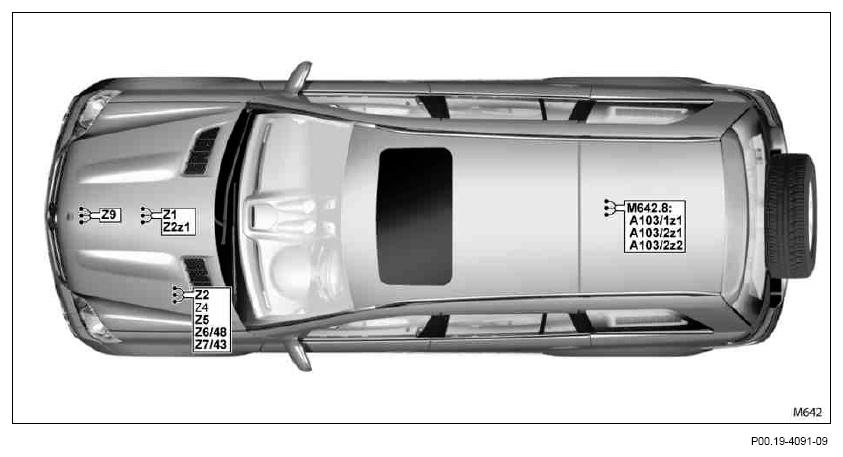

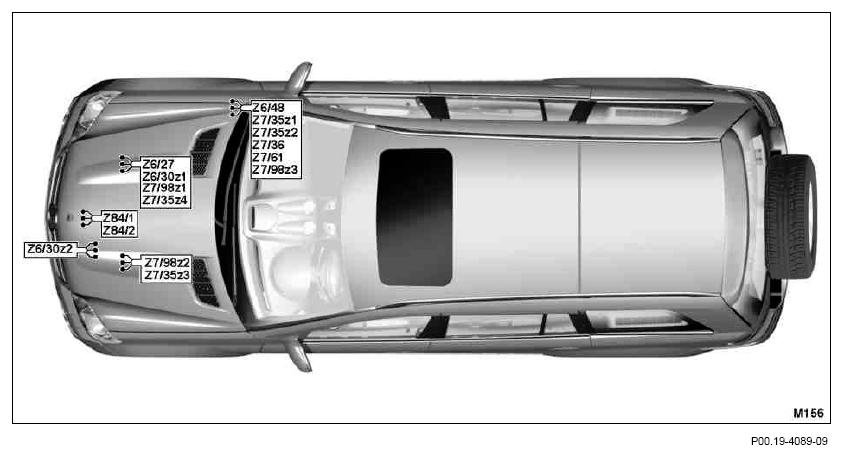

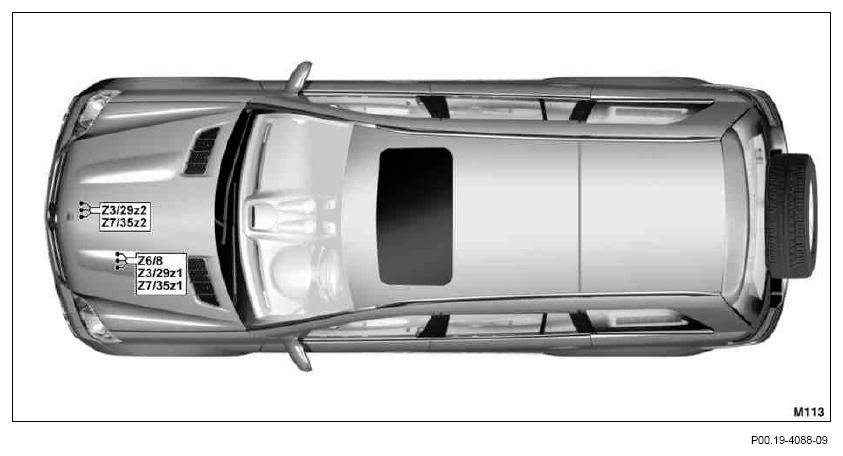

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - GF00.19-U-3000MAA
MODEL 164
| A103/1z1 | Temperature sensor AdBlue® tank module connector sleeve | Engine 642.8 | GF00.19-U-3000-06MAA |
| A103/2z1 | End sleeve reversing valve AdBlue® transport module | Engine 642.8 | GF00.19-U-3000-06MAA |
| A103/2z2 | Transport modules heater element AdBlue® delivery module connector sleeve | Engine 642.8 | GF00.19-U-3000-06MAA |
| Z0/2 | Connector sleeve (solder connector in harness) | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z1 | Connector sleeve 2 (solder joint in harness) | Engine 642 | GF00.19-U-3000-01MAF |
| Z2 | Circuit TD connector sleeve | Engine 642 | GF00.19-U-3000-01MAF |
| Z2z1 | Circuit TD connector sleeve | Engine 642 | GF00.19-U-3000-01MAF |
| Z3 | 15 connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z3/11 | Circuit 15 (fused) connector sleeve | GF00.19-U-3000-03MAA | |
| Z3/29z1 | Circuit 15 connector sleeve (fused) | Engine 113 | GF00.19-U-3000-01MAB |
| Z3/29z2 | Circuit 15 connector sleeve (fused) | Engine 113 | GF00.19-U-3000-01MAB |
| Z3/51 | Front center console connector sleeve, circuit 15R | GF00.19-U-3000-04MAA | |
| Z4 | Connector sleeve (solder joint in harness) | Engine 642 | GF00.19-U-3000-01MAF |
| Z4/3 | Tml. 30 connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z5 | Connector sleeve (solder joint in harness) | Engine 642 | GF00.19-U-3000-01MAF |
| Z5z2 | Connector sleeve (solder joint in harness) | Engine 272 | GF00.19-U-3000-02MAD |
| Z5z2 | Connector sleeve (solder joint in harness) | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z6z1 | Ground connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z6z1 | Ground connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z6z1 | Ground connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z6z2 | Ground connector sleeve | Engine 272 | GF00.19-U-3000-01MAD |
| Z6z2 | Ground connector sleeve | Engine 273 | GF00.19-U-3000-01MAE |
| Z6z2 | Ground connector sleeve | Engine 272.973 | GF00.19-U-3000-01MAG |
| Z6/8 | Sensor ground connector sleeve | Engine 113 | GF00.19-U-3000-01MAB |
| Z6/12 | Left rear door ground connector sleeve | GF00.19-U-3000-04MAA | |
| Z6/13 | Right rear door ground connector sleeve | GF00.19-U-3000-05MAA | |
| Z6/14 | Circuit 31 ground connector sleeve (left belt buckle) | GF00.19-U-3000-04MAA | |
| Z6/15 | Circuit 31 ground connector sleeve (right belt buckle) | GF00.19-U-3000-04MAA | |
| Z6/26 | Sensor supply connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z6/26 | Sensor supply connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z6/27 | Sensor ground connector sleeve | Engine 113 | GF00.19-U-3000-02MAB |
| Z6/27 | Sensor ground connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z6/30z1 | ME-SFI [ME] diagnostic connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z6/30z2 | ME-SFI [ME] diagnostic connector sleeve | Engine 156 | GF00.19-U-3000-01MAC |
| Z6/35 | Left front door ground connector sleeve | GF00.19-U-3000-04MAA | |
| Z6/36 | Right front door ground connector sleeve | GF00.19-U-3000-05MAA | |
| Z6/47 | Ground (W15/2) connector sleeve | GF00.19-U-3000-04MAA | |
| Z6/48 | Ground (W2) connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z6/48 | Ground (W2) connector sleeve | Engine 642 | GF00.19-U-3000-01MAF |
| Z6/62 | Circuit 31 connector sleeve (ECE) | Engine 113 | GF00.19-U-3000-03MAA |
| Z6/99 | Transmission circuit 31 connector sleeve | GF00.19-U-3000-01MAA | |
| Z7/5 | Circuit 87 connector sleeve | Engine 642 | GF00.19-U-3000-01MAF |
| Z7/5 | Circuit 87 connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/6 | Circuit 87 connector sleeve (body) | Engine 272.973 | GF00.19-U-3000-05MAA |
| Z7/35z1 | Circuit 87M1e connector sleeve | Engine 113 | GF00.19-U-3000-01MAB |
| Z7/35z1 | Circuit 87M1e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/35z1 | Circuit 87M1e connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/35z1 | Circuit 87M1e connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/35z1 | Circuit 87M1e connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z7/35z2 | Circuit 87M1e connector sleeve | Engine 113 | GF00.19-U-3000-01MAB |
| Z7/35z2 | Circuit 87M1e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/35z2 | Circuit 87M1e connector sleeve | Engine 272 | GF00.19-U-3000-01MAD |
| Z7/35z2 | Circuit 87M1e connector sleeve | Engine 273 | GF00.19-U-3000-01MAE |
| Z7/35z2 | Circuit 87M1e connector sleeve | Engine 272.973 | GF00.19-U-3000-01MAG |
| Z7/35z3 | Circuit 87M1e connector sleeve | Engine 156 | GF00.19-U-3000-01MAC |
| Z7/35z4 | Circuit 87M1e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/36 | Circuit 87M2e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/36z1 | Circuit 87M2e connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/36z1 | Circuit 87M2e connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z7/36z1 | Circuit 87M2e connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/36z2 | Circuit 87M2e connector sleeve | Engine 272 | GF00.19-U-3000-01MAD |
| Z7/36z2 | Circuit 87M2e connector sleeve | Engine 273 | GF00.19-U-3000-01MAE |
| Z7/36z2 | Circuit 87M2e connector sleeve | Engine 272.973 | GF00.19-U-3000-01MAG |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z7/38z2 | Circuit 87 M1i connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/38z2 | Circuit 87 M1i connector sleeve | Engine 273 | GF00.19-U-3000-01MAE |
| Z7/38z2 | Circuit 87 M1i connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/43 | Sensor ground connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/43 | Sensor ground connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z7/43 | Sensor ground connector sleeve | Engine 642 | GF00.19-U-3000-01MAF |
| Z7/43 | Sensor ground connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/44 | Sensor ground connector sleeve | Engine 272 | GF00.19-U-3000-02MAD |
| Z7/44 | Sensor ground connector sleeve | Engine 273 | GF00.19-U-3000-02MAE |
| Z7/44 | Sensor ground connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/61 | 5V output 2 connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/73 | Circuit 87D4 connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z7/88 | Fuel pump control unit circuit 30 connector sleeve | GF00.19-U-3000-07MAA | |
| Z7/98z1 | Circuit 87 M3e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z7/98z2 | Circuit 87 M3e connector sleeve | Engine 156 | GF00.19-U-3000-01MAC |
| Z7/98z3 | Circuit 87 M3e connector sleeve | Engine 156 | GF00.19-U-3000-02MAC |
| Z9 | Connector sleeve 1 | Engine 642 | GF00.19-U-3000-01MAF |
| Z18 | Connector sleeve 18 | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z21 | Front rotary tumbler switch connector sleeve | GF00.19-U-3000-05MAA | |
| Z28/44 | Antenna actuation connector sleeve | GF00.19-U-3000-04MAA | |
| Z35/7 | CAN databus junction (high) (cockpit) | GF00.19-U-3000-03MAA | |
| Z35/8 | CAN databus junction (low) (cockpit) | GF00.19-U-3000-03MAA | |
| Z35/12 | CAN D low connector sleeve | GF00.19-U-3000-05MAA | |
| Z35/13 | CAN D high connector sleeve | GF00.19-U-3000-05MAA | |
| Z35/14 | CAN-C low engine compartment connector sleeve | GF00.19-U-3000-02MAA | |
| Z35/15 | CAN-C high engine compartment connector sleeve | GF00.19-U-3000-02MAA | |
| Z36/1 | Rear PTS sensor ground connector sleeve | GF00.19-U-3000-21MAA | |
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | GF00.19-U-3000-21MAA | |
| Z36/3 | Front PTS sensor ground connector sleeve | GF00.19-U-3000-20MAA | |
| Z36/4 | Front PTS sensor voltage supply connector sleeve | GF00.19-U-3000-20MAA | |
| Z36/12 | Headlamp range adjustment (HRA [LWR]) control bus connector sleeve | GF00.19-U-3000-02MAA | |
| Z36/14 | Static headlamp range adjustment signal connector sleeve | GF00.19-U-3000-02MAA | |
| Z37/69 | Dynamic CAN bus (high) connector sleeve | GF00.19-U-3000-02MAA | |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | GF00.19-U-3000-02MAA | |
| Z37/71 | Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve | GF00.19-U-3000-04MAA | |
| Z37/72 | Reversible emergency tensioning retractor CAN engine bus (high) connector sleeve | GF00.19-U-3000-04MAA | |
| Z43 | Rear window defrost connector sleeve | GF00.19-U-3000-07MAA | |
| Z50/3 | Circuit 31 cockpit connector sleeve (1, left) | GF00.19-U-3000-03MAA | |
| Z50/4 | Circuit 31 cockpit connector sleeve (2, right) | GF00.19-U-3000-03MAA | |
| Z50/5 | Circuit 15 connector sleeve | GF00.19-U-3000-05MAA | |
| Z50/36 | Circuit 31 (4) cockpit connector sleeve) | GF00.19-U-3000-03MAA | |
| Z51/6 | Interior connector sleeve (circuit 58d) | GF00.19-U-3000-05MAA | |
| Z53/20 | Interior connector sleeve, 15R | GF00.19-U-3000-04MAA | |
| Z53/25 | UPCI [UHI] circuit 30 interior compartment solder point | GF00.19-U-3000-04MAA | |
| Z53/26 | Telematics circuit 31 interior solder point 1 | GF00.19-U-3000-05MAA | |
| Z53/28 | Telematics circuit 31 interior solder point 2 | GF00.19-U-3000-05MAA | |
| Z53/29 | Rear seat entertainment circuit 30 solder connector | GF00.19-U-3000-04MAA | |
| Z53/33 | Left 2nd seat row seat heater terminal connector | GF00.19-U-3000-04MAA | |
| Z53/34 | Right IRM 2SR seat heater terminal connector | GF00.19-U-3000-05MAA | |
| Z54/7 | Footwell lamps connector sleeve | GF00.19-U-3000-04MAA | |
| Z55/1 | Circuit 31 rear-end door connector sleeve | GF00.19-U-3000-07MAA | |
| Z55/4 | Rear-end door warning lamp terminal connector | GF00.19-U-3000-07MAA | |
| Z56/9 | Left engine compartment connector sleeve (circuit 56B) | GF00.19-U-3000-01MAA | |
| Z56/16 | Level sensor ground engine compartment solder point | GF00.19-U-3000-02MAA | |
| Z56/17 | Level sensor supply engine compartment solder point | GF00.19-U-3000-02MAA | |
| Z56/18 | Low temperature water pump connector sleeve | GF00.19-U-3000-02MAA | |
| Z57/15 | Right engine compartment connector sleeve (circuit 56B) | GF00.19-U-3000-02MAA | |
| Z57/18 | High-voltage signal distribution connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z60/4 | Foglamp wiring harness connector sleeve (circuit 31) | GF00.19-U-3000-20MAA | |
| Z61/4 | Front center console circuit 31 connector sleeve | GF00.19-U-3000-04MAA | |
| Z61/5 | Wiring harness connector sleeve for center console, terminal 31 | GF00.19-U-3000-04MAA | |
| Z61/10 | Driver seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-04MAA | |
| Z61/11 | Front passenger seat backrest/head restraint motor connector sleeve | GF00.19-U-3000-05MAA | |
| Z61/12 | Left circuit 31 2nd seat row solder point | GF00.19-U-3000-04MAA | |
| Z61/13 | Right circuit 31 2nd seat row solder point | GF00.19-U-3000-05MAA | |
| Z61/14 | 3rd seat row supply solder point | GF00.19-U-3000-04MAA | |
| Z61/15 | Circuit 31 3rd seat row solder point | GF00.19-U-3000-04MAA | |
| Z61/16 | Convenience relay circuit 30 connector sleeve | GF00.19-U-3000-05MAA | |
| Z61/17 | Convenience relay circuit 31 connector sleeve | GF00.19-U-3000-04MAA | |
| Z61/18 | Driver seat circuit 15R connector sleeve | GF00.19-U-3000-04MAA | |
| Z68/1 | AC-LIN bus ground (-) COC | GF00.19-U-3000-03MAA | |
| Z68/2 | AC-LIN bus Ub (+) COC | GF00.19-U-3000-03MAA | |
| Z68/5 | AC-LIN bus ground (-) center vent | GF00.19-U-3000-03MAA | |
| Z68/6 | AC-LIN bus Ub (+) center vent | GF00.19-U-3000-03MAA | |
| Z68/7 | Cockpit AC system sensor ground | GF00.19-U-3000-03MAA | |
| Z68/9 | Rear air conditioning blower regulator diagnosis connector sleeve | GF00.19-U-3000-06MAA | |
| Z68/18 | Rear AC LIN connector sleeve (signal) | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z81/8 | Front center console circuit 58d connector sleeve | GF00.19-U-3000-03MAA | |
| Z84/1 | Throttle valve actuator connector sleeve (+ signal) | Engine 156 | GF00.19-U-3000-01MAC |
| Z84/2 | Throttle valve actuator connector sleeve (- signal) | Engine 156 | GF00.19-U-3000-01MAC |
| Z100/2 | Wake-up signal connector sleeve | GF00.19-U-3000-04MAA | |
| Z101/1 | Pulse width module fuel pump connector sleeve | GF00.19-U-3000-07MAA | |
| Z101/2 | Fuel pump connector sleeve | GF00.19-U-3000-07MAA | |
| Z108/1 | Circuit 31 washer nozzle heater connector sleeve | GF00.19-U-3000-01MAA | |
| Z108/2 | Washer nozzle heater signal connector sleeve | GF00.19-U-3000-01MAA | |
| Z118/1 | Brake booster hydraulic unit connector sleeve, circuit 86 | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z118/6 | Brake fluid indicator switch connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Z204 | Wake-up signal/circuit 58d voltage distributor connector | GF00.19-U-3000-05MAA | |
| Z204/1 | Circuit 31 left wheelhouse luggage compartment voltage distributor connector | GF00.19-U-3000-06MAA | |
| Z204/2 | Circuit 31 right wheelhouse luggage compartment voltage distributor connector | GF00.19-U-3000-07MAA | |
| Z204/3 | Circuit 31 right rear seat voltage distributor connector | GF00.19-U-3000-07MAA | |
| Z204/4 | Circuit 31 right footwell voltage distributor connector | GF00.19-U-3000-05MAA | |
| Z204/5 | Circuit 31 left footwell voltage distributor connector (1) | GF00.19-U-3000-04MAA | |
| Z204/6 | Circuit 31 left rear seat voltage distributor connector | GF00.19-U-3000-04MAA | |
| Z204/7 | Circuit 31 left footwell voltage distributor connector (2) | GF00.19-U-3000-04MAA | |
| Z214/8 | Shutoff valve supply connector sleeve | Engine 272.973 | GF00.19-U-3000-05MAA |
| Z215/1 | Sensor ground connector sleeve | Engine 272.973 | GF00.19-U-3000-02MAF |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | GF00.19-U-3000-01MAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 113 in MODEL 164 | GF00.19-U-3000-01MAB | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 156 in MODEL 164 | GF00.19-U-3000-01MAC | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 272 in MODEL 164 | GF00.19-U-3000-01MAD | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 273 in MODEL 164 | GF00.19-U-3000-01MAE | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 642 in MODEL 164 | GF00.19-U-3000-01MAF | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left) | ENGINE 273.973 in MODEL 164.195 | GF00.19-U-3000-01MAG | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | GF00.19-U-3000-02MAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | ENGINE 113 in MODEL 164 | GF00.19-U-3000-02MAB | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | ENGINE 156 in MODEL 164 | GF00.19-U-3000-02MAC | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | ENGINE 272 in MODEL 164 | GF00.19-U-3000-02MAD | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | ENGINE 273 in MODEL 164 | GF00.19-U-3000-02MAE | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (right) | ENGINE 273.973 in MODEL 164.195 | GF00.19-U-3000-02MAF | |
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit | GF00.19-U-3000-03MAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (left) | GF00.19-U-3000-04MAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - interior compartment (right) | GF00.19-U-3000-05MAA | ||
| Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left) | GF00.19-U-3000-06MAA | ||
| Arrangement and assignment of Z end connectors (connectors in harness) in right of trunk | GF00.19-U-3000-07MAA | ||
| Location and assignment of Z connector sleeves (cable connections in wiring harness) - front bumpers | GF00.19-U-3000-20MAA | ||
| Arrangement and assignment of Z connector sleeves (cable and plug connectors in wiring harness) - outside rear | GF00.19-U-3000-21MAA |
