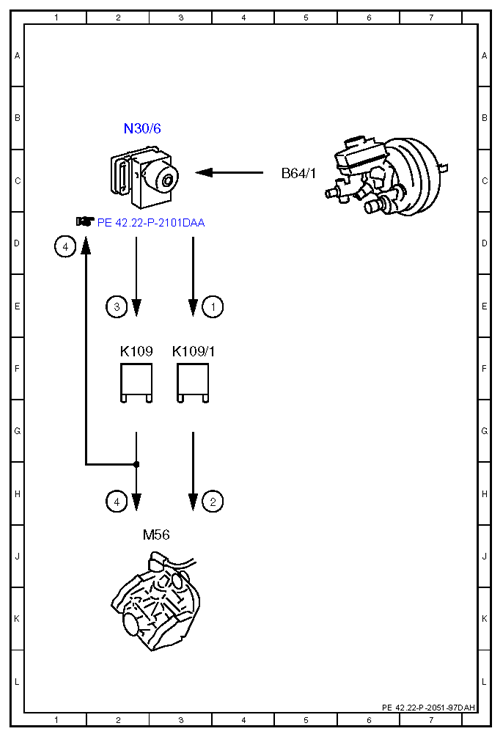

Electrical function schematic for vacuum supply - PE42.22-P-2051-97DAH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.095 with ENGINE 276.952
MODEL 212.098 /298 with ENGINE 651.924
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vacuum pump relay (-), request | 3E |
| 2 | Vacuum pump, actuation (-) | 3H |
| 3 | Vacuum pump relay, actuation | 2E |
| 4 | Vacuum pump, actuation | 2H |
| 4 | Vacuum pump, actuation | 1D |
| B64/1 | Brake vacuum sensor | 5C |
| K109 | Vacuum pump relay (+) | 2F |
| K109/1 | Vacuum pump relay (-) | 3F |
| M56 | Vacuum pump | 2J |
| N30/6 | Regenerative braking system control unit | 2B |
