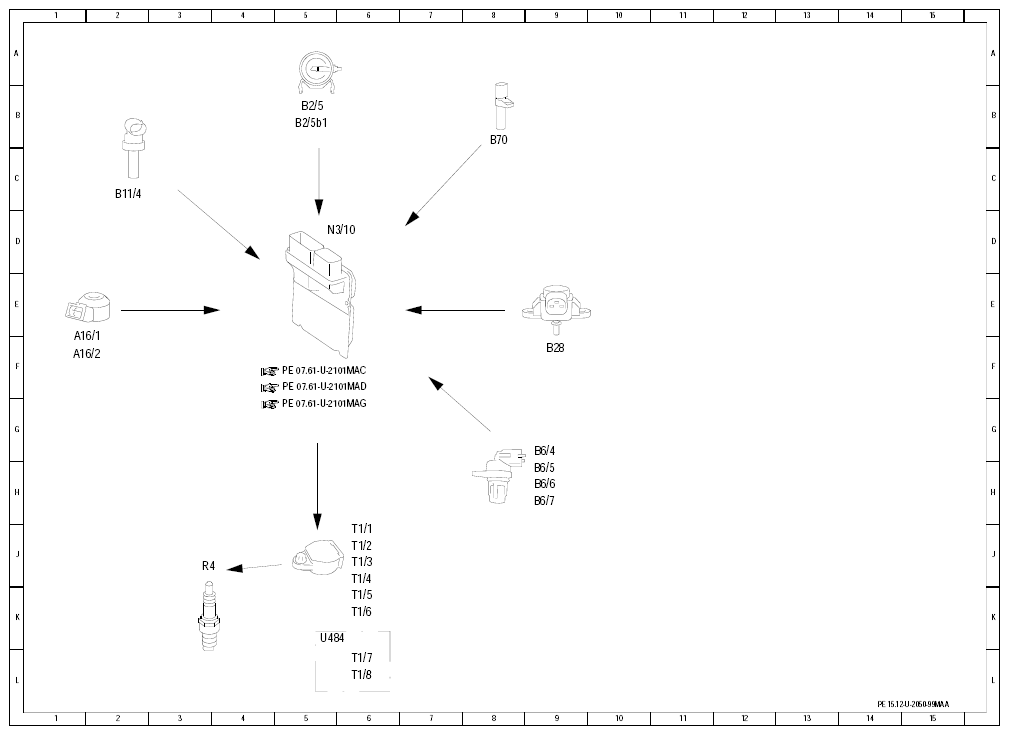

| A16/1 |
Right knock sensor 1 |
1 F |
| A16/2 |
Left knock sensor 2 |
1 F |
| B11/4 |
Coolant temperature sensor |
2 C |
| B2/5 |
Hot film MAF sensor |
5 B |
| B2/5b1 |
Intake air temperature sensor |
5 B |
| B28 |
Pressure sensor |
9 F |
| B6/4 |
Left intake camshaft Hall sensor |
9 H |
| B6/5 |
Right intake camshaft Hall sensor |
9 H |
| B6/6 |
Left exhaust camshaft Hall sensor |
9 H |
| B6/7 |
Right exhaust camshaft Hall sensor |
9 H |
| B70 |
Crankshaft Hall sensor |
8 C |
| N3/10 |
ME-SFI [ME] control module |
5 D |
| R4 |
Spark plugs |
3 J |
| T1/1 |
Cylinder 1 ignition coil |
6 J |
| T1/2 |
Cylinder 2 ignition coil |
6 J |
| T1/3 |
Cylinder 3 ignition coil |
6 J |
| T1/4 |
Cylinder 4 ignition coil |
6 K |
| T1/5 |
Cylinder 5 ignition coil |
6 K |
| T1/6 |
Cylinder 6 ignition coil |
6 K |
| T1/7 |
Cylinder 7 ignition coil |
6 L |
| T1/8 |
Cylinder 8 ignition coil |
6 L |
| U484 |
Valid for M273 ME |
5 L |
