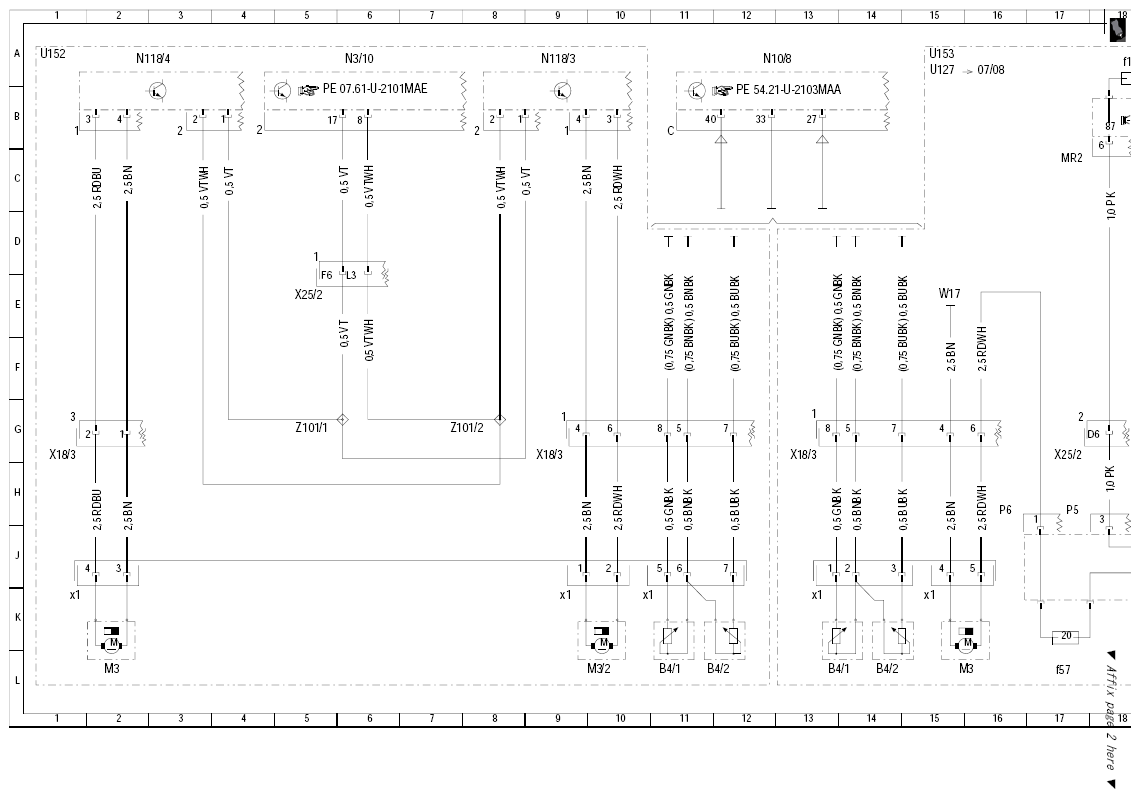

| B4/1 |
Left fuel level sensor |
11 L |
| B4/1 |
Left fuel level sensor |
13 L |
| B4/1 |
Left fuel level sensor |
36 L |
| B4/1x1 |
Left tank half fuel level sensor connector |
10 K |
| B4/1x1 |
Left tank half fuel level sensor connector |
13 K |
| B4/1x1 |
Left tank half fuel level sensor connector |
36 K |
| B4/2 |
Right fuel level sensor |
11 L |
| B4/2 |
Right fuel level sensor |
14 L |
| B4/2 |
Right fuel level sensor |
37 L |

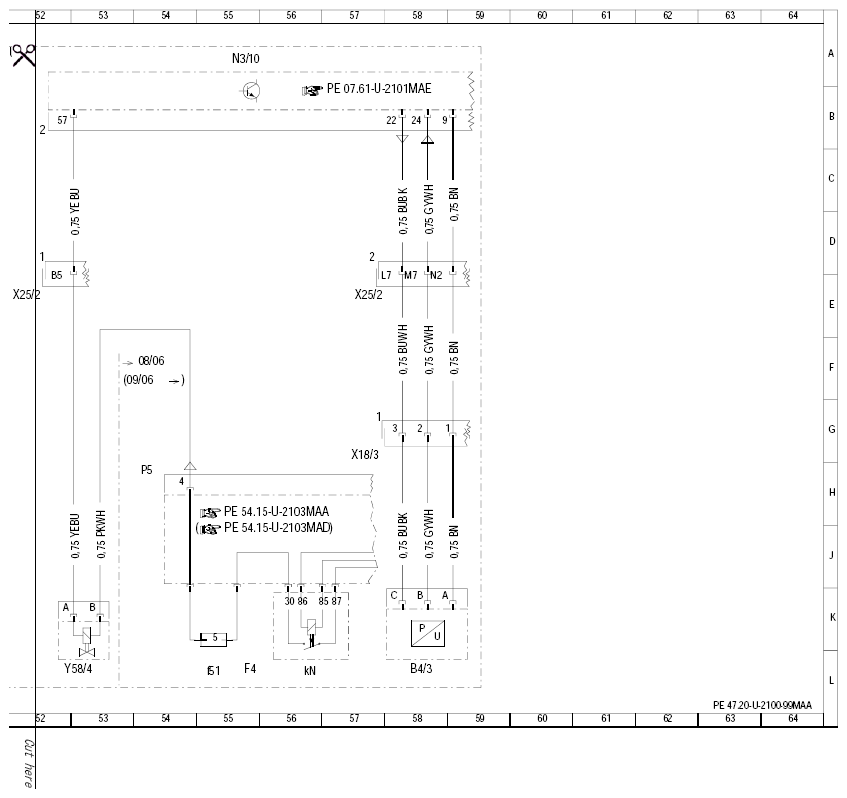

| B4/3 |
Fuel tank pressure sensor |
44 L |
| B4/3 |
Fuel tank pressure sensor |
58 L |

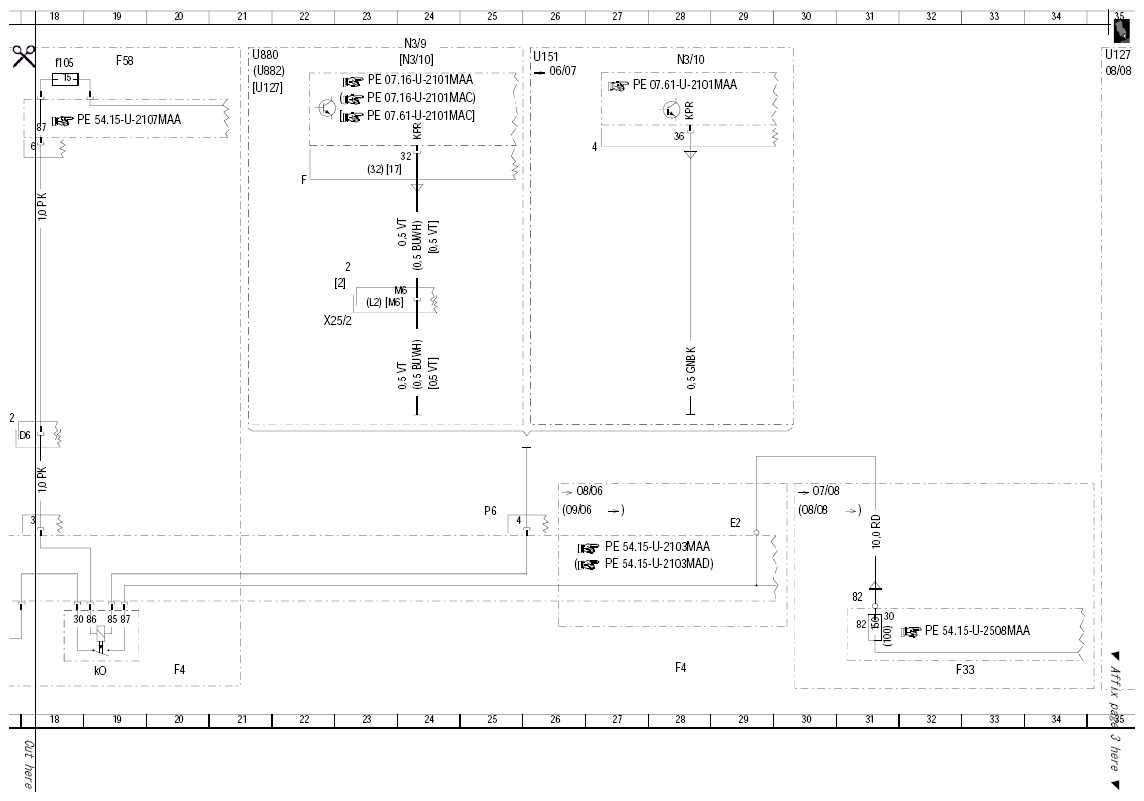

| F33 |
Battery compartment prefuse box |
32 L |
| F33f82 |
Fuse 82 |
31 K |
| F4 |
Load compartment fuse and relay box |
20 L |
| F4 |
Load compartment fuse and relay box |
28 L |
| F4 |
Load compartment fuse and relay box |
49 L |
| F4 |
Load compartment fuse and relay box |
55 L |
| F4f51 |
Fuse 51 |
48 L |
| F4f51 |
Fuse 51 |
54 L |
| F4f57 |
Fuse 57 |
17 L |
| F4kN |
Circuit 15 (1)/spare 1 relay (changeover contact) |
56 L |
| F4kO |
Fuel pump relay |
19 L |
| F58 |
Engine compartment fuse and relay box |
19 A |
| F58f105 |
Fuse 105 |
18 A |
| M3 |
Right fuel pump |
2 L |
| M3 |
Right fuel pump |
15 L |
| M3 |
Right fuel pump |
38 L |
| M3/2 |
Left fuel pump |
9 L |
| M3/2x1 |
Left fuel pump connector |
9 K |
| M3x1 |
Right fuel pump connector |
1 K |
| M3x1 |
Right fuel pump connector |
15 K |
| M3x1 |
Right fuel pump connector |
38 K |

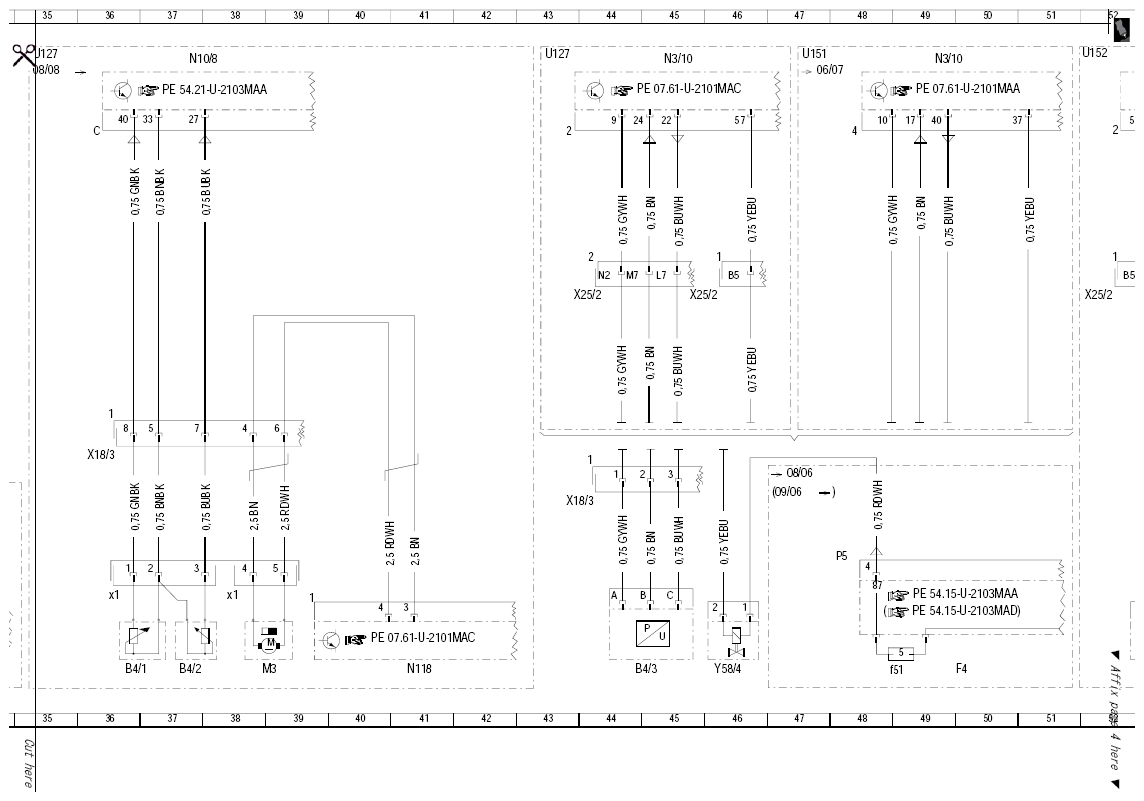

| N10/8 |
Rear SAM control unit |
12 A |
| N10/8 |
Rear SAM control unit |
37 A |
| N118 |
Fuel pump control unit |
41 L |
| N118/3 |
Left fuel pump control unit |
9 A |
| N118/4 |
Right fuel pump control unit |
2 A |
| N3/10 |
ME-SFI [ME] control unit |
6 A |
| N3/10 |
ME-SFI [ME] control unit |
23 A |
| N3/10 |
ME-SFI [ME] control unit |
28 A |
| N3/10 |
ME-SFI [ME] control unit |
45 A |
| N3/10 |
ME-SFI [ME] control unit |
49 A |
| N3/10 |
ME-SFI [ME] control unit |
55 A |
| N3/9 |
CDI control unit |
24 A |
| U127 |
Valid for engine 272, engine 273 KE |
15 A |
| U127 |
Valid for engine 272, engine 273 KE |
21 B |
| U127 |
Valid for engine 272, engine 273 KE |
35 A |
| U127 |
Valid for engine 272, engine 273 KE |
43 A |
| U151 |
Valid for engine 113 |
26 A |
| U151 |
Valid for engine 113 |
47 A |
| U152 |
Valid for engine 156 |
1 A |
| U152 |
Valid for engine 156 |
51 A |
| U153 |
Valid for all except engine 156 |
15 A |
| U880 |
Valid for engine 642 |
21 A |
| U882 |
Valid for engine 629 |
21 A |
| W17 |
Ground (right rear seat) |
15 E |
| X18/3 |
Interior/fuel tank connector |
1 H |
| X18/3 |
Interior/fuel tank connector |
9 H |
| X18/3 |
Interior/fuel tank connector |
13 H |
| X18/3 |
Interior/fuel tank connector |
36 H |
| X18/3 |
Interior/fuel tank connector |
43 H |
| X18/3 |
Interior/fuel tank connector |
57 H |
| X25/2 |
Engine compartment/interior compartment connector |
5 E |
| X25/2 |
Engine compartment/interior compartment connector |
17 H |
| X25/2 |
Engine compartment/interior compartment connector |
22 E |
| X25/2 |
Engine compartment/interior compartment connector |
43 E |
| X25/2 |
Engine compartment/interior compartment connector |
45 E |
| X25/2 |
Engine compartment/interior compartment connector |
52 E |
| X25/2 |
Engine compartment/interior compartment connector |
57 E |
| Y58/4 |
Activated charcoal filter shutoff valve |
46 L |
| Y58/4 |
Activated charcoal filter shutoff valve |
52 L |
| Z101/1 |
Pulse width module fuel pump connector sleeve |
5 G |
| Z101/2 |
Fuel pump connector sleeve |
7 G |
