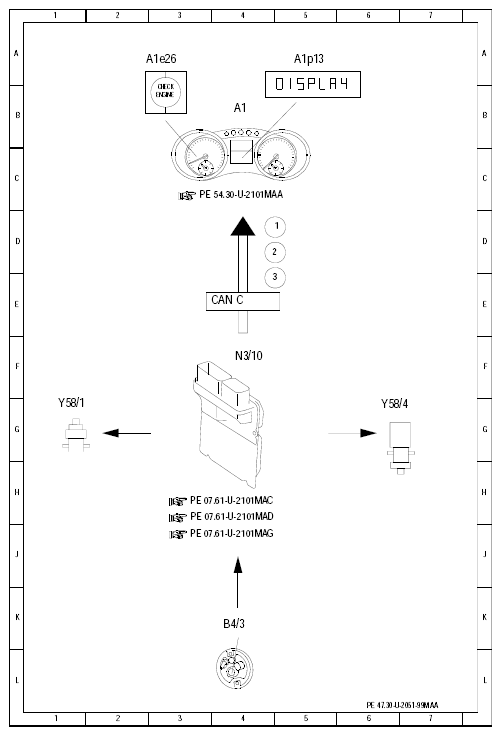

Electrical function diagram for system purging with leak test - PE47.30-U-2051-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | CHECK ENGINE indicator lamp, actuation | 4 D |
| 2 | Instrument cluster, message | 4 D |
| 3 | Fuel reserve warning lamp, actuation | 4 E |
| A1 | Instrument cluster | 4 B |
| A1e26 | "CHECK ENGINE" MIL | 2 A |
| A1p13 | Multifunction display | 5 A |
| B4/3 | Fuel tank pressure sensor | 4 K |
| CAN C | Engine compartment CAN | 3 E |
| N3/10 | ME-SFI [ME] control module | 4 F |
| Y58/1 | Purge control valve | 1 G |
| Y58/4 | Activated charcoal filter shutoff valve | 6 G |
