Remove/install noise damper downstream of charge air cooler - AR09.40-P-6925GZB
ENGINE 642 in MODEL 164, 166, 251
Shows model 164
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Removes strut tower brace | Model 164.8 |
AR62.30-P-2500GY |
| 2 | Remove engine cover | Model 166 | |
| MODEL 164 | AR01.10-P-2405GZB | ||
| MODEL 251 | AR01.10-P-2405RTB | ||
| 3 | Remove bolts (2) | *BA09.41-P-1007-01J | |

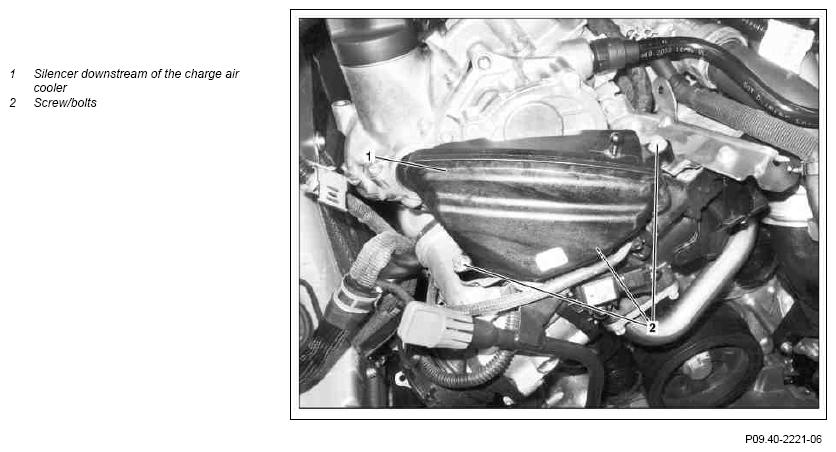

| 4 | Remove noise damper downstream of charge air cooler (1) | Check sealing ring for damage and replace on the case of damage. In this way one can avoid leaks and damage on the engine. |
|
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.41-P-1007-01J | Noise damper downstream of charge air cooler to mixing chamber | Nm | 9 |
