Remove/install intake port shutoff sensor - AR09.20-P-1315GZC
ENGINES 642 in MODEL 164, 251 with CODE (U42) BLUETEC diesel exhaust gas cleaning
| Remove/install | |||
| 1 | Remove intake port shutoff motor (M55) | AR09.20-P-1314GZB | |
| 2 | Disconnect the electrical connector of LH intake port shutoff end position sensor (B96/1) or RH intake port shutoff end position sensor (B96/2) | ||

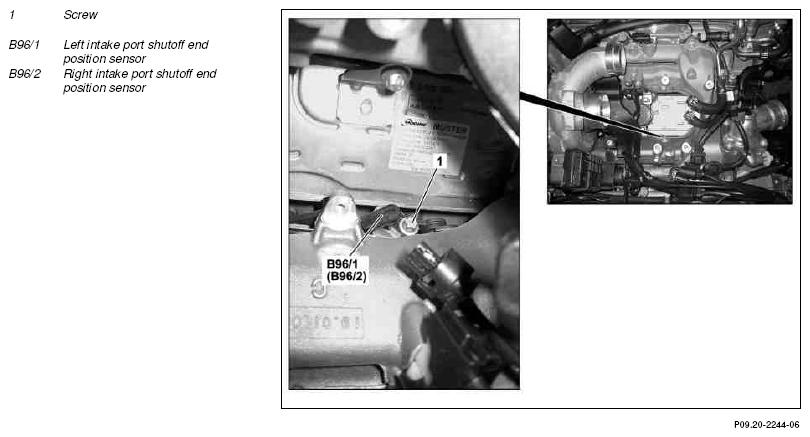

| 3 | Unscrew bolt (1) | *BA07.04-P-1016-01G | |
| 4 | Take out LH intake port shutoff end position sensor (B96/1) or RH intake port shutoff end position sensor (B96/2) | ||
| 5 | Install in the reverse order |
SENSORS
| Number | Designation | Engine 642 with particle filter | |
|---|---|---|---|
| BA07.04-P-1016-01G | Bolt, position sensor of end position sensor to charge air distribution line | Nm | 8 |
