Wiring diagram electronic stability program (ESP) control module - PE42.45-U-2101-99MAA

Code: Designation: Position:
A7/3 Traction system hydraulic unit 2 E
A7/3m1 High pressure and return pump 4 D
A7/3y10 Left rear solenoid valve (pressure hold) 1 C
A7/3y11 Left rear solenoid valve (pressure release) 3 C
A7/3y12 Right rear solenoid valve (pressure hold) 1 C
A7/3y13 Right rear solenoid valve (pressure release) 3 C
A7/3y18 Front axle switchover solenoid valve 1 B
A7/3y19 Rear axle switchover solenoid valve 3 B
A7/3y22 Front axle inlet solenoid valve 1 B
A7/3y23 Rear axle inlet solenoid valve 3 B
A7/3y6 Left front solenoid valve (pressure hold) 1 D
A7/3y7 Left front solenoid valve (pressure release) 3 D
A7/3y8 Right front solenoid valve (pressure hold) 1 D
A7/3y9 Right front solenoid valve (pressure release) 3 D
A7/7 BAS brake booster 53 L
A7/7b1 BAS diaphragm travel sensor 52 L
A7/7s1 BAS release switch 55 L
A7/7y1 BAS solenoid valve 56 L
B24/15 Micromechanical yaw rate sensor AY pickup 17 L
B24/15 Micromechanical yaw rate sensor AY pickup 20 L
B34 ESP brake pressure sensor 51 L
F58 Engine compartment fuse and relay box 9 L
F58f109 Fuse 109 8 L
F58f115 Fuse 115 9 L
L6/1 Left front rpm sensor 49 L
L6/1x1 Rpm sensor connector 49 K
L6/2 Right front rpm sensor 48 L
L6/2x1 Rpm sensor connector 47 K
L6/3 Left rear rpm sensor 29 L
L6/3 Left rear rpm sensor 31 L
L6/3x1 Rpm sensor connector 28 K
L6/3x1 Rpm sensor connector 31 K
L6/4 right rear rpm sensor 26 L
L6/4x1 Rpm sensor connector 25 K
N10 Front SAM control unit 38 L
N10/8 Rear SAM control unit 23 L
N47-5 ESP control unit 4 A
N47-5 ESP control unit 12 A
N47-5 ESP control unit 20 A
N47-5 ESP control unit 28 A
N47-5 ESP control unit 36 A
N47-5 ESP control unit 44 A
N47-5 ESP control unit 52 A
S10/2 Right front brake pad contact sensor 46 L
S10/2x1 Right front brake pad contact sensor connector 45 K
S10/4 Right rear brake pad contact sensor 40 L
S10/4x1 Right rear brake pad contact sensor connector 40 K
S12 Parking brake indicator switch 35 L
U151 Valid for engine 113 16 A
U151 Valid for engine 113 27 C
U154 Valid for 164.1 42 E
U154 Valid for 164.1 43 F
U155 Valid for 164.8 43 E
U504 Valid for DTR 17 C
U681 Valid for all except M113 16 A
U681 Valid for all except M113 27 C
U77 Valid for speed-sensitive power steering (SPS [PML]) 57 A
W15/2 Ground (left footwell) 33 E
W15/2 Ground (left footwell) 34 J
W17 Ground (right rear seat) 42 G
W17 Ground (right rear seat) 44 G
W2 Ground (right front, at lamp unit) 46 E
W7 Ground (right wheelhouse in luggage compartment) 44 G
W70 Electronic Stability Program/regenerative braking system ground point 6 E
X25/2 Engine compartment/interior compartment connector 16 G
X25/2 Engine compartment/interior compartment connector 37 G
X62/32 Left rear axle multiple circuit junction connector 28 J
X62/32 Left rear axle multiple circuit junction connector 30 J
X62/33 Right rear axle multiple circuit junction connector 25 J
X62/33 Right rear axle multiple circuit junction connector 39 G
X62/35 BWI [BBV]/rpm left front axle connector 48 G
X62/36 BWI [BBV]/rpm right front axle connector 45 G
Y10 SPS [PML] solenoid valve 57 L
Z204/2 Circuit 31 right wheelhouse luggage compartment voltage distributor connector 44 L
Z204/3 Circuit 31 right rear seat voltage distributor connector 44 L
Z204/5 Circuit 31 left footwell voltage distributor connector (1) 34 E
Z37/69 Dynamic CAN bus (high) connector sleeve 18 E
Z37/70 Dynamic CAN bus (low) connector sleeve 17 E
Z6/47 Ground (W15/2) connector sleeve 32 G

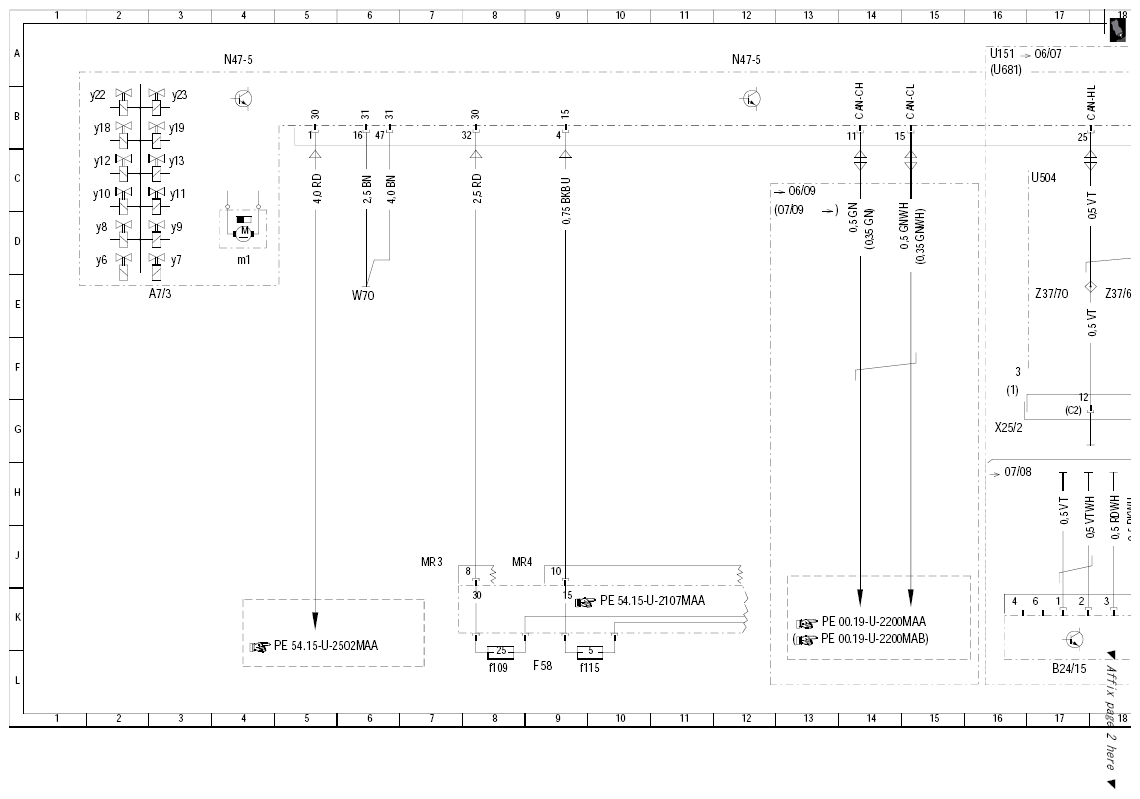

Fig 1: Electronic Stability Program Control Module - Wiring Diagram (1 Of 4)
G10116680Courtesy of MERCEDES-BENZ USA

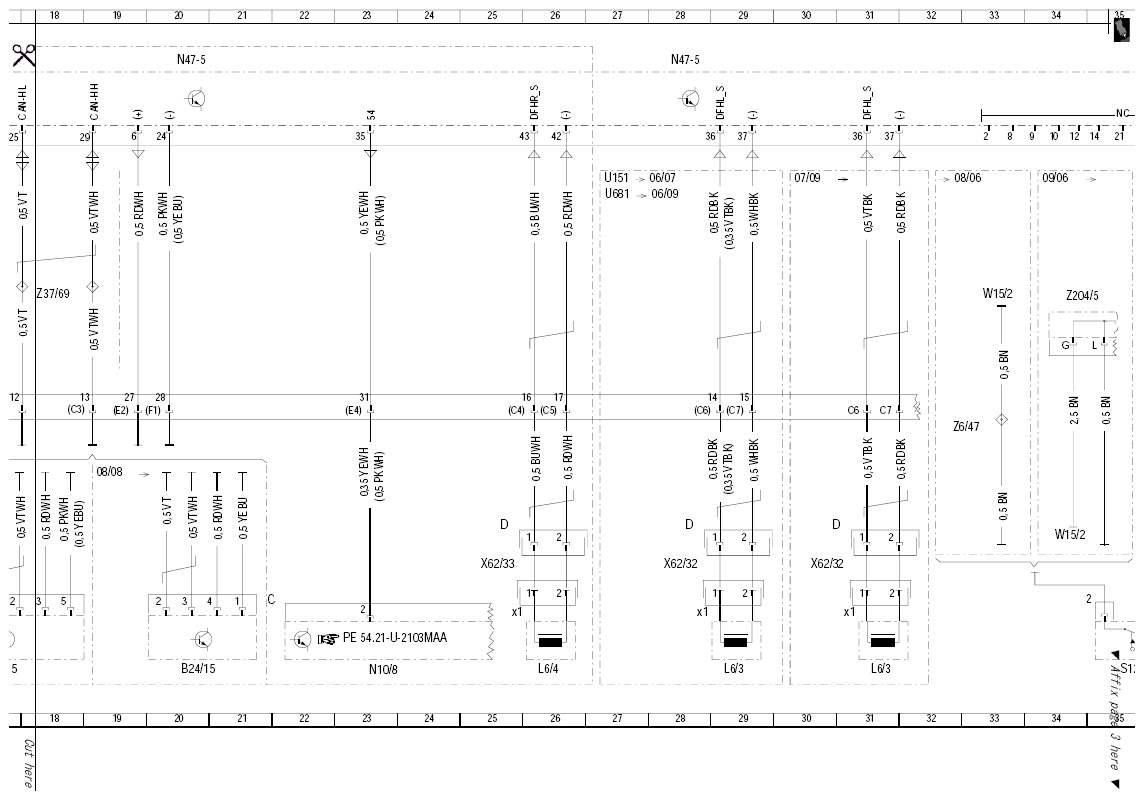

Fig 2: Electronic Stability Program Control Module - Wiring Diagram (2 Of 4)
G10116681Courtesy of MERCEDES-BENZ USA

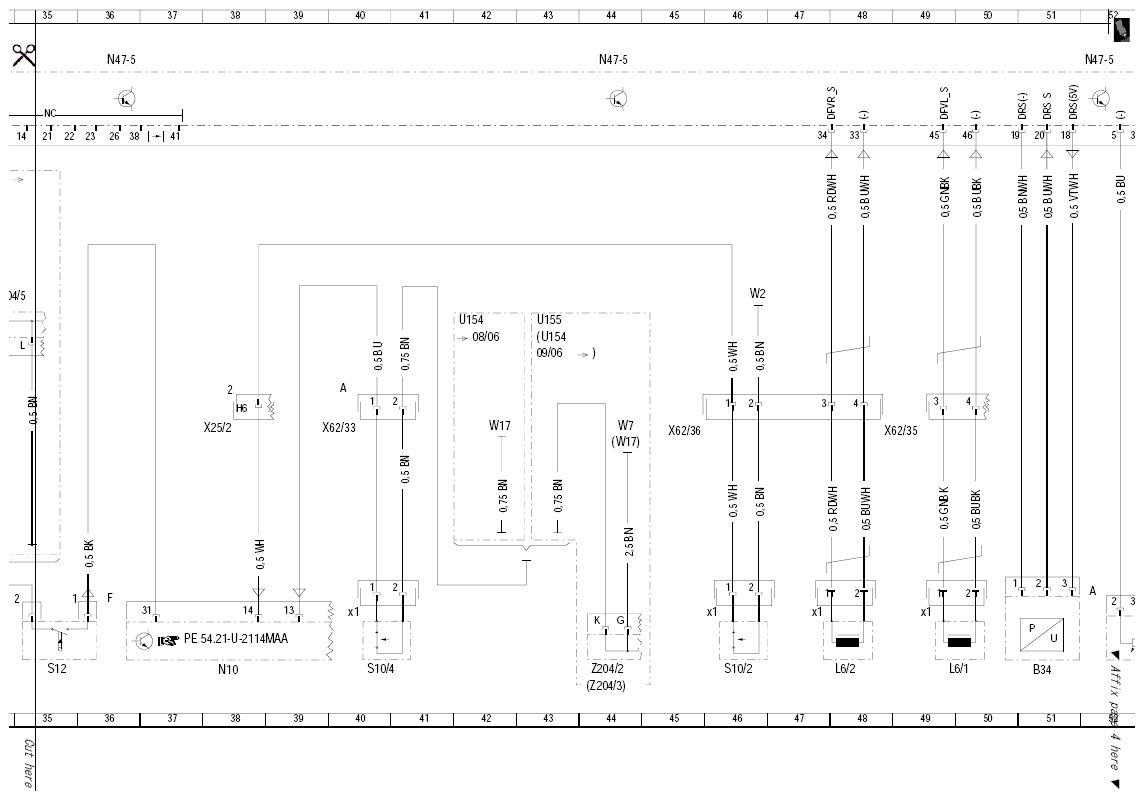

Fig 3: Electronic Stability Program Control Module - Wiring Diagram (3 Of 4)
G10116682Courtesy of MERCEDES-BENZ USA

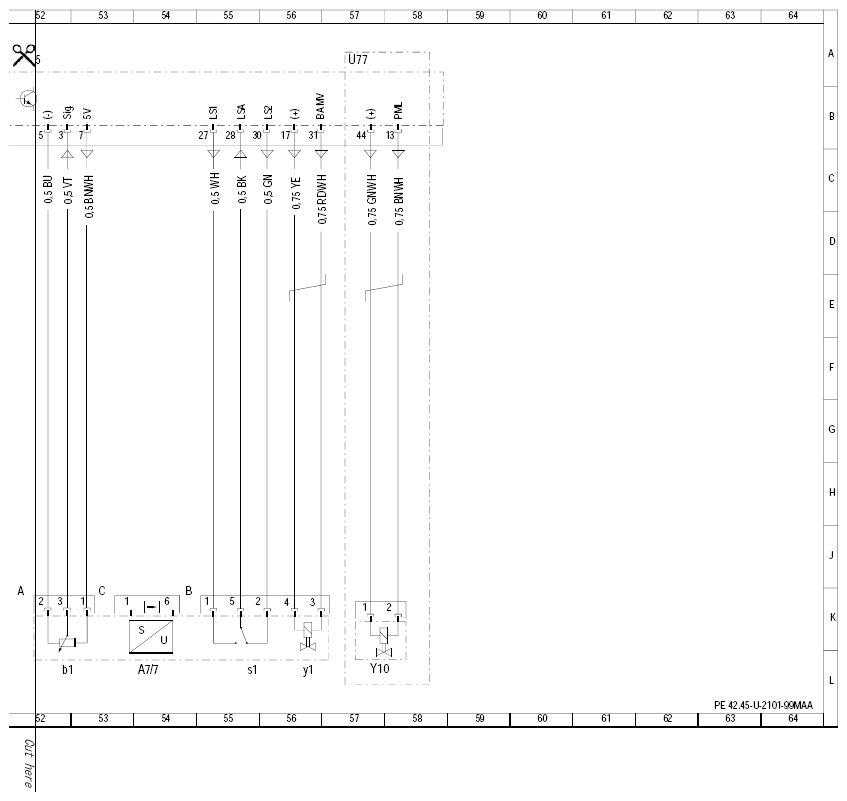

Fig 4: Electronic Stability Program Control Module - Wiring Diagram (4 Of 4)
G10116683Courtesy of MERCEDES-BENZ USA
