Remove/install left or right rear axle speed sensor - AR42.40-P-0820GZ
MODEL 164, 166

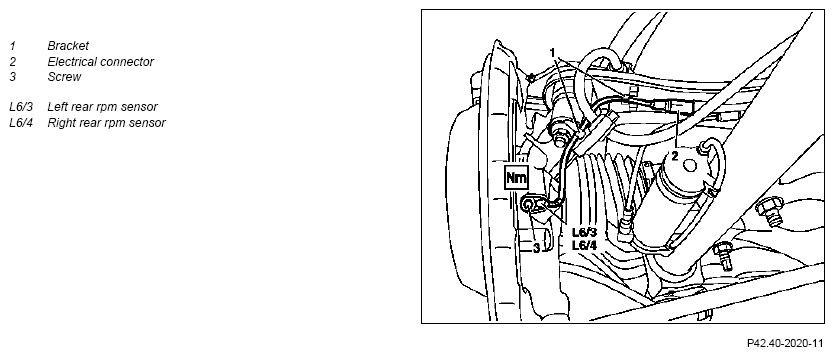

Shows model 164
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Lift vehicle on vehicle lift. | AR00.60-P-1000GZ | |
| 3 | Detach corresponding complete wheel | Model 164 | AP40.10-P-4050Z |
| 4 | Remove bolt (3) | ||
| *BA42.30-P-1001-02G | |||
| 5 | Pull left rear rpm sensor (L6/3) or right rear rpm sensor (L6/4) out of wheel carrier | ||
| 6 | Unclip line from brackets (1) | ||
| 7 | Disconnect electrical connector (2) | ||
| 8 | Install in the reverse order | ||
| 9 | Clear fault memory | AD00.00-P-2000-04A |
REAR AXLE RPM SENSOR
| Number | Designation | Model 164.1/8 | Model 166 | |
|---|---|---|---|---|
| BA42.30-P-1001-02G | Self-locking bolt of rear axle rpm sensor to wheel carrier | Nm | 8 | 8 |
