Electronic stability program (ESP), location of components - GF42.45-P-0001-07GV

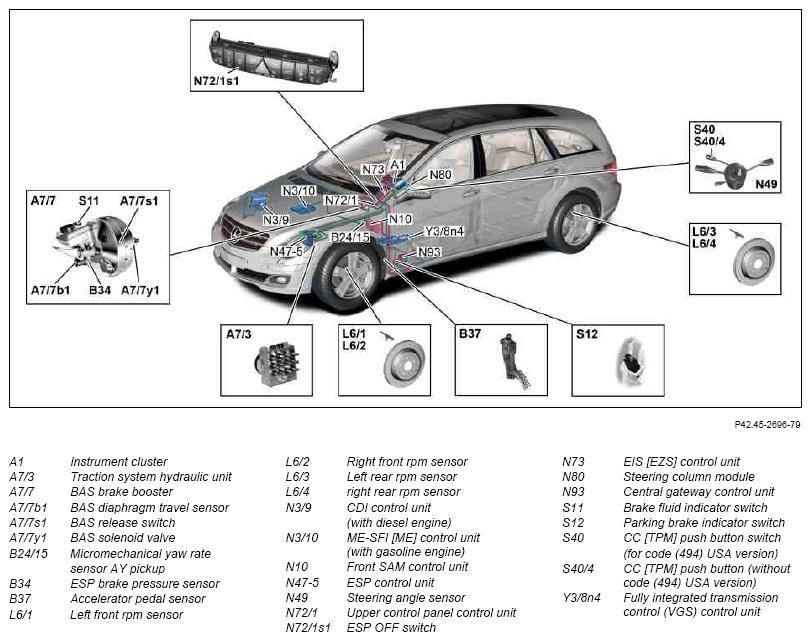

Fig 1: Electronic Stability Program Components Location

G10116610

Courtesy of MERCEDES-BENZ USA

Shown on model 251.1 (up to YoM 11)
