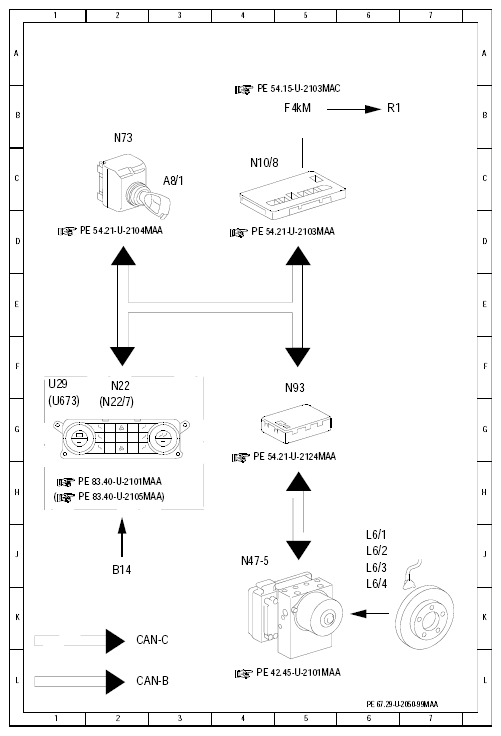

| A8/1 |
Transmitter key |
3 C |
| B14 |
Ambient temperature display temperature sensor |
2 J |
| F4kM |
Rear window defroster relay |
5 B |
| L6/1 |
Left front wheel speed sensor |
6 J |
| L6/2 |
Right front wheel speed sensor |
6 J |
| L6/3 |
Left rear wheel speed sensor |
6 J |
| L6/4 |
Right rear wheel speed sensor |
6 K |
| N10/8 |
Rear SAM control module |
4 C |
| N22 |
AAC push-button control module |
2 F |
| N22/7 |
Comfort AAC push-button control module |
2 G |
| N47-5 |
ESP control module |
4 J |
| N73 |
DI control module |
2 C |
| N93 |
Central gateway control module |
5 G |
| R1 |
Heated rear window |
6 B |
| U29 |
Valid for outside temperature indicator |
1 F |
| U673 |
Valid for Comfort AAC [K-KLA] |
1 G |
